Stainless Steel Underwater Duplex Roller Chains 4.5mm Plate For Sea Environment
Stainless Steel Underwater Duplex Roller Chains 4.5mm Plate For Sea Environment
Stainless Steel Underwater Duplex Roller Chains 4.5mm Plate For Sea Environment
Stainless Steel Underwater Duplex Roller Chains 4.5mm Plate For Sea Environment
Stainless Steel Underwater Duplex Roller Chains 4.5mm Plate For Sea Environment
Stainless Steel Underwater Duplex Roller Chains 4.5mm Plate For Sea Environment
Stainless Steel Underwater Duplex Roller Chains 4.5mm Plate For Sea Environment
Stainless Steel Underwater Duplex Roller Chains 4.5mm Plate For Sea Environment
Specifications
Brand Name :
UIB
Model Number :
20BSS-3
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
100 PCS
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, , Western Union, MoneyGram
Supply Ability :
5000 pcs / month
Delivery Time :
15~ 20 days
Packaging Details :
industrial package, single color box
Chain type :
Duplex roller(ss) chains
Pitch :
31.75 mm
Average tension :
163 KN
Weight :
10.82 KG/M
Limited tension :
36.45 KN
Applicant :
Underwater, sea enviroment usage
Plate thickess :
4.5 mm
inner plate Height :
26.4 mm
Description

Stainless Steel Underwater Duplex Roller Chains 4.5mm Plate For Sea Environment

1, Product description:

Stainless steel chains are particularly suitable for areas whereand low temperat cleaning or certain chemicals require harsh conditions and high ures.

2, stainless steel roller chains applicantion:

Stainless Steel chains widely used in food, chemical industry, pharmacy, rubber, printing and wiping, etc. It is a good equipment for modern equipment.

3, Product advantage:

Our stainless steel plate thickness all comply with China national standard, also comply with ISO standard.

Quality guaranteed. Bush all with gap, enlarge work life much!

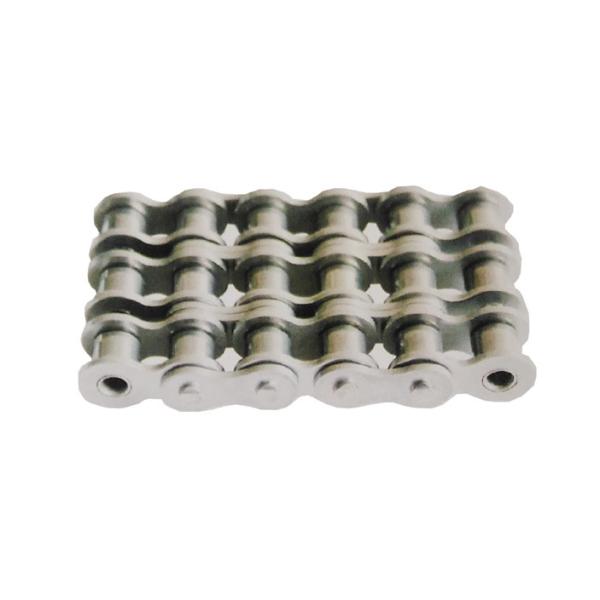

Stainless Steel Triplex roller chains 16BSS-3
Chain
NO.		 Pitch Roller
Dia.		 In. width PIN Dia. PIN
length		 inner
plate H		 plate
thickess		 limited
tension		 Average
tension		 weight/M
P d1(max) b1(min) d2(max) L(max) Lc(max) h2(max) t/T(max) Pt Q(min) Q0
mm mm mm mm mm mm mm mm mm kN kg/m
05BSS-3 8 5 3 2.31 19.5 20.2 7.1 0.8 5.64 7.2 0.48
*06BSS-3 9.525 6.35 5.72 3.28 33.5 34.6 8.2 1.3 10.24 16.2 1.16
08BSS-3 12.7 8.51 7.75 4.45 45.1 46.1 11.8 1.6 13.92 30.8 2.03
10BSS-3 15.875 10.16 9.65 5.08 52.7 54.1 14.7 1.7 16.59 43.4 2.77
12BSS-3 19.05 12.07 11.68 5.72 61.5 63.1 16 1.85 19.46 46 3.46
16BSS-3 25.4 15.88 17.02 8.28 99.8 101.2 21 4.15/3.1 31.88 104 8.13
20BSS-3 31.75 16.05 19.56 10.19 114.2 117.9 26.4 4.5/3.5 36.45 163 10.82
24BSS-3 38.1 25.4 25.4 14.63 150.1 154.6 33.2 6.0/4.8 48.36 276 20.1
28BSS-3 44.45 17.94 30.99 15.9 184.2 188.7 36.7 7.5/6.0 59.56 345 24.92
32BSS-3 50.8 29.21 30.99 17.81 183.2 188.2 42 7.0/6.0 58.55 435 31.56

Stainless Steel Underwater Duplex Roller Chains 4.5mm Plate For Sea Environment

Stainless Steel Underwater Duplex Roller Chains 4.5mm Plate For Sea EnvironmentStainless Steel Underwater Duplex Roller Chains 4.5mm Plate For Sea Environment
