Specifications
Brand Name :
UIB
Model Number :
80BSS
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
100 PCS
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, , Western Union, MoneyGram
Supply Ability :
10000 pcs / month
Delivery Time :
3~ 10days
Packaging Details :
industrial package, single color box
Material :
SUS304, SUS420, SUS440, SUS201
Number of Row :
Simplex roller(ss) chains
ANSI Chain NO. :
80SS
Average tension :
12
Weight :
0.69 KG/M
Description

3mm Thickness Simplex Roller Chains , AISI Stainless Steel 80SS Transmission Parts

Stainless steel chains are particularly suitable for areas whereand low temperat cleaning or certain chemicals require harsh conditions and high ures.

Stainless Steel chains widely used in food, chemical industry, pharmacy, rubber, printing and wiping, etc. It is a good equipment for modern equipment.

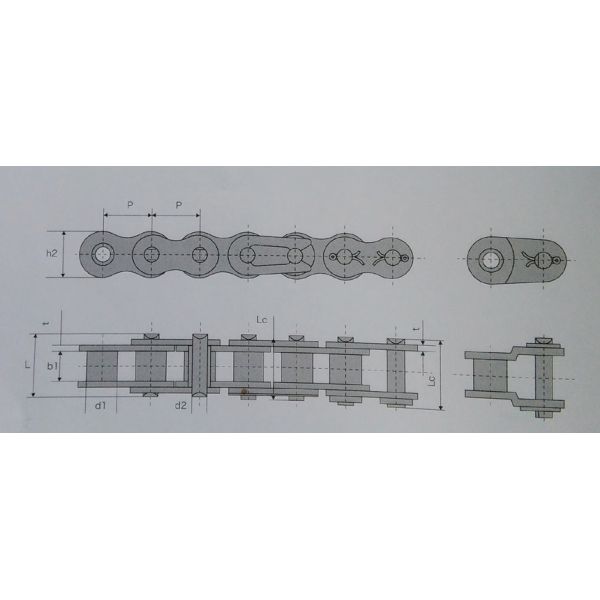

Chain
NO.		 Pitch Roller
Dia.		 In. width PIN Dia. PIN
length		 inner
plate		 plate
thickess		 limited
tension		 Average
tension		 weight/M
height load Load
P d1(max) b1(min) d2(max) L(max) Lc(max) h2(max) T(max) Q(min) Q0 q
mm mm mm mm mm mm mm mm kN kN kg/m
04BSS-1 6 4 2.8 1.85 6.8 7.8 5 0.6 2 2 0.11
05BSS-1 8 5 3 2.31 8.2 8.9 7.1 0.8 3 3.5 0.2
*06BSS-1 9.525 6.35 5.72 3.28 13.15 14.1 8.2 1.2 5.4 6.2 0.41
08BSS-1 12.7 8.51 7.75 4.45 16.7 18.2 11.8 1.5 10.8 12 0.69
10BSS-1 15.875 10.16 9.65 5.08 19.5 20.9 14.7 1.7 13.44 14.5 0.93
12BSS-1 19.05 12.07 11.68 5.72 22.5 24.2 16 1.8 17.4 18.5 1.15
16BSS-1 25.4 15.88 17.02 8.28 36.1 37.4 21 4.0/3.0 3.6 40 2.71
20BSS-1 31.75 19.05 19.56 10.19 41.3 45 26.4 4 57 59 3.7
24BSS-1 38.1 25.4 25.4 14.63 53.4 57.8 33.2 6.0/4.8 96 104 7.1
28BSS-1 44.45 27.94 30.99 15.9 65.1 69.5 36.7 7.5/6.0 120 120 8.5
32BSS-1 50.8 29.21 30.99 17.81 66 71 42 7.0/6.0 150 150 10.25
