Specifications
Brand Name :
UIB
Model Number :
12BSS-2
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
100 PCS
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, , Western Union, MoneyGram
Supply Ability :
10000 pcs / month
Delivery Time :
3~ 10days
Packaging Details :
industrial package, single color box
mited tension :
19.46
Chain type :
Duplex roller chains
ANSI Chain NO. :
12BSS-2
Average tension :
37.6KN
Weight :
2.31 KG/M
Description

ANSI Pharmacy Transmission Parts , Anti Corrosion Duplex Roller Chains

Stainless steel chains are particularly suitable for areas whereand low temperat cleaning or certain chemicals require harsh conditions and high ures.

Stainless Steel chains widely used in food, chemical industry, pharmacy, rubber, printing and wiping, etc. It is a good equipment for modern equipment.

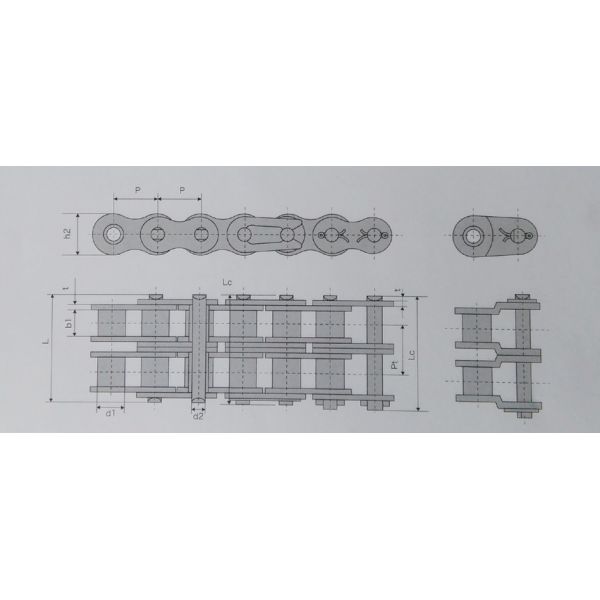

Chain
NO.		 Pitch Roller
Dia.		 In. width PIN Dia. PIN
length		 inner
plate		 plate
thickess		 limited
tension		 Average
tension		 weight/M
height load Load
P d1(max) b1(min) d2(max) L(max) Lc(max) h2(max) T(max) Q(min) Q0 q
mm mm mm mm mm mm mm mm kN kN kg/m
05BSS-2 8 5 3 2.31 13.9 14.5 7.1 0.8 5.64 5.07 0.33
*06BSS-2 9.525 6.35 5.72 3.28 23.4 24.4 8.2 1.2 10.24 11 0.77
08BSS-2 12.7 8.51 7.75 4.45 31.2 32.2 11.8 1.5 13.92 20.8 1.34
10BSS-2 15.875 10.16 9.65 5.08 36.1 37.5 14.7 1.67 16.59 28.9 1.84
12BSS-2 19.05 12.07 11.68 5.72 42 43.6 16 1.8 19.46 37.6 2.31
16BSS-2 25.4 15.88 17.02 8.28 68 69.3 21 4.0/3.0 31.88 68.9 5.42
20BSS-2 31.75 19.05 19.56 10.19 77.8 81.5 26.4 40 36.45 110.5 7.2
24BSS-2 38.1 25.4 25.4 14.63 101.7 106.2 33.2 6.0/4.8 48.36 182 13.4
28BSS-2 44.45 27.94 30.99 15.9 124.6 129.1 36.7 7.5/6.0 59.56 234 16.6
32BSS-2 50.8 29.21 30.99 17.81 124.6 129.6 42 7.0/6.0 58.55 146 21
