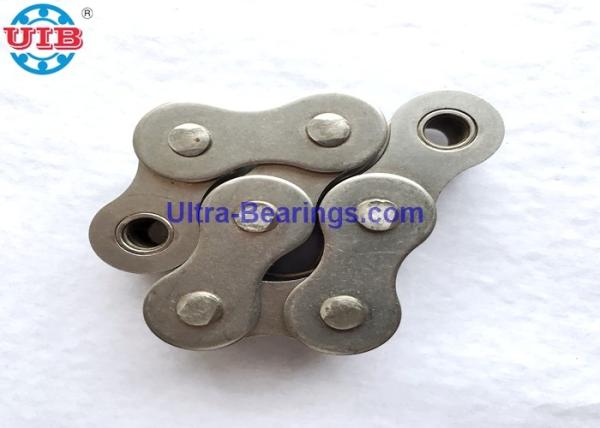

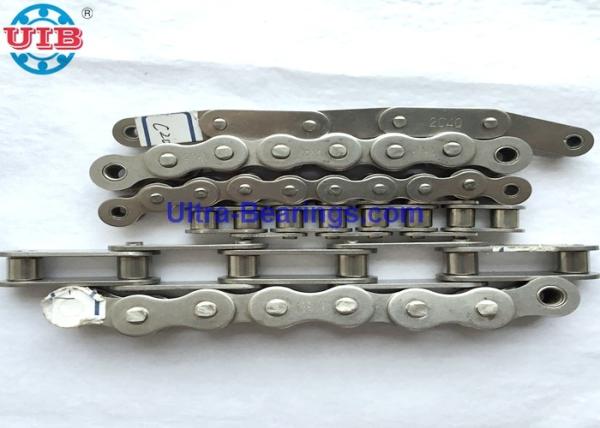

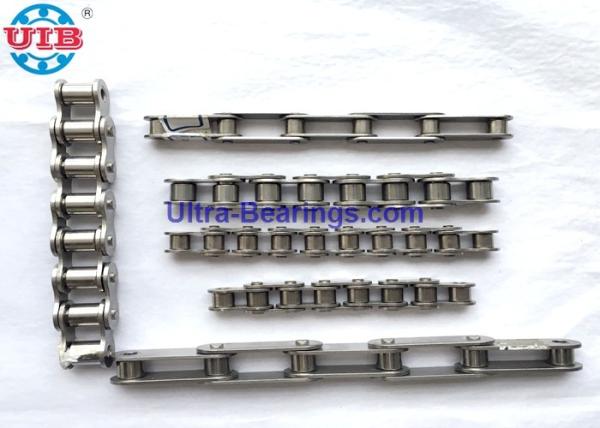

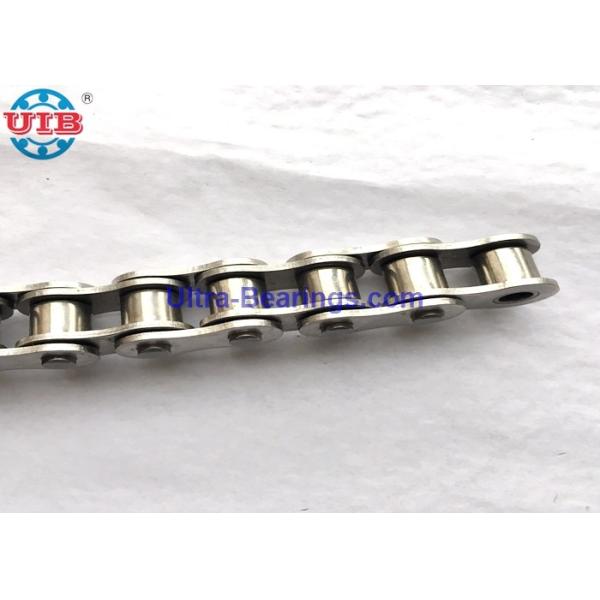

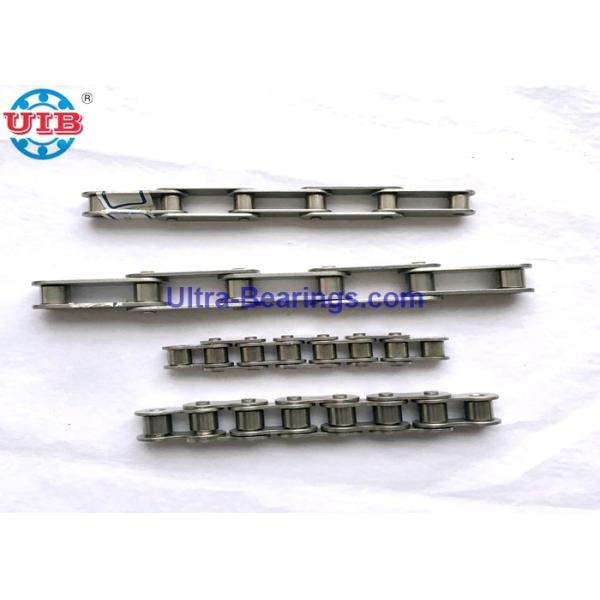

21mm AISI Transmission Components 16BSS-2 Stainless Steel For Food Industry
21mm AISI Transmission Components 16BSS-2 Stainless Steel For Food Industry
21mm AISI Transmission Components 16BSS-2 Stainless Steel For Food Industry
21mm AISI Transmission Components 16BSS-2 Stainless Steel For Food Industry
21mm AISI Transmission Components 16BSS-2 Stainless Steel For Food Industry
21mm AISI Transmission Components 16BSS-2 Stainless Steel For Food Industry
21mm AISI Transmission Components 16BSS-2 Stainless Steel For Food Industry
21mm AISI Transmission Components 16BSS-2 Stainless Steel For Food Industry
Specifications
Brand Name :
UIB
Model Number :
16BSS-2
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
100 PCS
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, , Western Union, MoneyGram
Supply Ability :
10000 pcs / month
Delivery Time :
3~ 10days
Packaging Details :
industrial package, single color box
Material :
SUS304, SUS420, SUS440, SUS201
Chain type :
Duplex roller(ss) chains
Pitch :
25.4 mm
Average tension :
68.9KN
Weight :
5.42 KG/M
Description

21mm AISI Transmission Components 16BSS-2 Stainless Steel For Food Industry

Stainless steel chains are particularly suitable for areas whereand low temperat cleaning or certain chemicals require harsh conditions and high ures.

Stainless Steel chains widely used in food, chemical industry, pharmacy, rubber, printing and wiping, etc. It is a good equipment for modern equipment.

Chain
NO.		 Pitch Roller
Dia.		 In. width PIN Dia. PIN
length		 inner
plate		 plate
thickess		 limited
tension		 Average
tension		 weight/M
height load Load
P d1(max) b1(min) d2(max) L(max) Lc(max) h2(max) T(max) Q(min) Q0 q
mm mm mm mm mm mm mm mm kN kN kg/m
05BSS-2 8 5 3 2.31 13.9 14.5 7.1 0.8 5.64 5.07 0.33
*06BSS-2 9.525 6.35 5.72 3.28 23.4 24.4 8.2 1.2 10.24 11 0.77
08BSS-2 12.7 8.51 7.75 4.45 31.2 32.2 11.8 1.5 13.92 20.8 1.34
10BSS-2 15.875 10.16 9.65 5.08 36.1 37.5 14.7 1.67 16.59 28.9 1.84
12BSS-2 19.05 12.07 11.68 5.72 42 43.6 16 1.8 19.46 37.6 2.31
16BSS-2 25.4 15.88 17.02 8.28 68 69.3 21 4.0/3.0 31.88 68.9 5.42
20BSS-2 31.75 19.05 19.56 10.19 77.8 81.5 26.4 40 36.45 110.5 7.2
24BSS-2 38.1 25.4 25.4 14.63 101.7 106.2 33.2 6.0/4.8 48.36 182 13.4
28BSS-2 44.45 27.94 30.99 15.9 124.6 129.1 36.7 7.5/6.0 59.56 234 16.6
32BSS-2 50.8 29.21 30.99 17.81 124.6 129.6 42 7.0/6.0 58.55 146 21

21mm AISI Transmission Components 16BSS-2 Stainless Steel For Food Industry21mm AISI Transmission Components 16BSS-2 Stainless Steel For Food Industry
