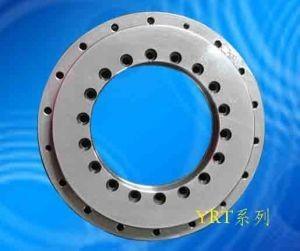

150mm Precision Slewing Bearing Steel 50Mn , P2 P5 YRT150 Bearing For CNC Machine
150mm Precision Slewing Bearing Steel 50Mn , P2 P5 YRT150 Bearing For CNC Machine
Specifications
Brand Name :
UIB
Model Number :
YRT150
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1PCS
Price :
negotiable
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
100PCS PER MONTH
Delivery Time :
10 DAYS
Packaging Details :
Wrapped by plastic belt, export wooden package
ID (mm) :
120
OD (mm) :
210
Thickness (mm) :
40
Weight (KG) :
5.3
Material :
50Mn, 42CrMo4
Precision Grade :
P5 P4 P2
Lubricaiton type :
Grease
Rotatin part :
Inner ring , outer ring
Load direction :
axial radial multi - directional bearing
Bearing struction :
Inner and outer ring in one piece
Description

150mm Precision Slewing Bearing Steel 50Mn , P2 P5 YRT150 Bearing For CNC Machine

Product description:

Rotate YRT150 bearing is a kind of outer ring, inner ring supporting slewing mechanism, mainly divided into YRT, YRTS YRTM type three series, the three series of bearing has the same installation size, internal structure is different, the performance is similar.

The series model contain: YRT50, YRT80, YRT100, YRT120, YRT150, YRT180, YRT200, YRT260, YRT395, YRT395, YRT580, YRT580, YRT850, YRT850, YRT1030 and YRT1200.

Slewing Ring Bearing Application:

domain CNC machine - nc rotary - nc - precision rotary table - precision equipment.

YRT series slewing bearing parameters
size d D H H1 C D1 J J1 d1/d2/a/ quantity d3/quantity
YRT 50 126 30 20 10 105 63 116 5.6 - - 10 5.6 12
50
YRT 80 146 35 23 12 130 92 138 5.6 10 4 10 4.6 12
80
YRT 100 185 38 25 12 160 112 170 5.6 10 5.4 16 5.6 15
100
YRT 120 210 40 26 12 184 135 195 7 11 6.2 22 7 21
120
YRT 150 240 40 26 12 214 165 225 7 11 6.2 34 7 33
150
YRT 180 280 43 29 15 244 194 260 7 11 6.2 46 7 45
180
YRT 200 300 45 30 15 274 215 285 7 11 6.2 46 7 45
200
YRT 260 385 55 36.5 18 345 280 365 9.3 15 8.2 34 9.3 33
260
YRT 325 450 60 40 20 415 342 430 9.3 15 8.2 34 9.3 33
325
YRT 395 525 65 42.5 20 486 415 505 9.3 15 8.2 46 9.3 45
395
YRT 460 600 70 46 22 560 482 580 9.3 15 8.2 46 9.3 45
460
YRT 580 750 90 60 30 700 610 720 11.4 18 11 46 11.4 42
580
YRT 650 870 122 78 34 800 680 830 14 20 13 46 14 42
650
YRT 850 1095 124 80.5 37 1018 890 1055 18 26 17 58 18 54
850
YRT 950 1200 132 86 40 1130 990 1160 18 26 17 58 18 54
950
YRT 1030 1300 145 92.5 40 1215 1075 1255 18 26 17 60 18 66
1030

150mm Precision Slewing Bearing Steel 50Mn , P2 P5 YRT150 Bearing For CNC Machine
