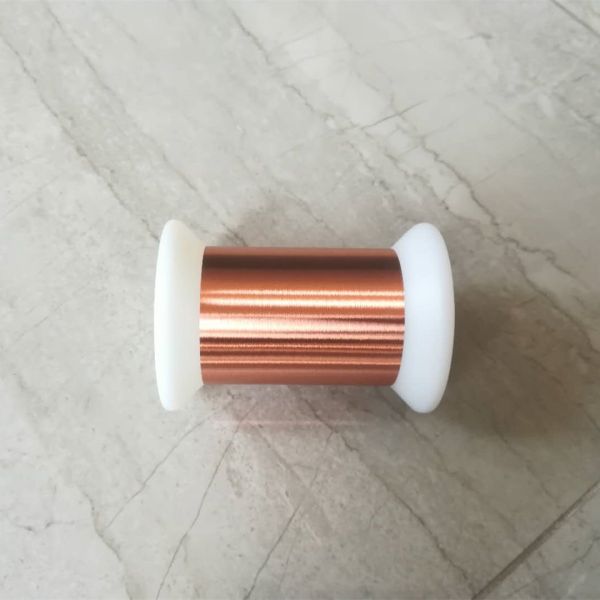

0.012- 1.6mm Extreme Fine Enamelled Copper Wire Copper Magnet Wire For Transformer
0.012- 1.6mm Extreme Fine Enamelled Copper Wire Copper Magnet Wire For Transformer
0.012- 1.6mm Extreme Fine Enamelled Copper Wire Copper Magnet Wire For Transformer
0.012- 1.6mm Extreme Fine Enamelled Copper Wire Copper Magnet Wire For Transformer
0.012- 1.6mm Extreme Fine Enamelled Copper Wire Copper Magnet Wire For Transformer
0.012- 1.6mm Extreme Fine Enamelled Copper Wire Copper Magnet Wire For Transformer
0.012- 1.6mm Extreme Fine Enamelled Copper Wire Copper Magnet Wire For Transformer
0.012- 1.6mm Extreme Fine Enamelled Copper Wire Copper Magnet Wire For Transformer
Specifications
Brand Name :
Rvyuan
Certification :
IEC/NEMA/JIS/RoHS/ISO
Place of Origin :
China
Price :
Negotiation
Payment Terms :
Negotiation
MOQ :
Different types with differet MOQ
Packaging Details :
Spool with carton
Delivery Time :
2-15 workding days
Supply Ability :
Satisfy your demand
Model Number :
0.012- 1.6mm
Thermal Class :
155-220℃
Colro :
Red/Blue/Green
Deliver time :
2-15days
Size range :
0.012-1.6mm
Description

0.012- 1.6MM EXTREME FINE ENAMELED COPPER WIRE COPPER MAGNET WIRE FOR TRANSFORMER

The enamelled copper wire type is a winding wire with a round copper conductor according to EN13601 Cu-ETP with a polyurethane coating with thermal class 155-220℃ enamelled copper wire which can be directly soldered. A special feature of this wire is the efficient and safe bonding via quick solderability at solder bath temperatures of 390 °C and higher without previous mechanical dissolving of the coating. It is also suitable for bonding techniques, such as welding, connecting, and crimping, and fulfils the requirements of modern winding technology

FEATURES

1) With good solderability, reduces coil production costs due to elimination of mechanical or chemical stripping.
2) Superior ''Q'' characteristic at high frequencies.
3) Excellent film adhension and flexibility.
4) Extremely resistant to a variety of solvents including most varnishes and hardener catalysts.

CERTIFICATES
ISO 9001-2000, ISO TS 16949, ISO 14001-2004,
UL Approved, RoHS Directive Met

APPLICATION

Switching transformers, information & telecommunications equipment, game machines, consumer goods, inverters and other similar devices.

0.012- 1.6mm Extreme Fine Enamelled Copper Wire Copper Magnet Wire For Transformer

Nominal Diameter mm Tolerance Min. Increase of Diameter Max. Overall Diameter Breakdown Voltage Elongation Pin Hole Electrical Resistance
mm ≥ V ≥% ≤Default/5m Ω/km (20℃)
Mandrel Method Twisted Method Min. Max.
0.012 ---- 0.013 0.015 50.000 ---- 5.00 10.00 142.64 157.65
0.013 ---- 0.015 0.017 70.000 ---- 5.00 10.00 118.41 133.98
0.014 ---- 0.016 0.018 70.000 ---- 5.00 10.00 102.64 120.45
0.015 ---- 0.017 0.020 80.000 ---- 5.00 10.00 89.83 104.41
0.016 ---- 0.018 0.021 90.000 ---- 5.00 8.00 74.67 97.56
0.017 ---- 0.019 0.022 90.000 ---- 5.00 8.00 66.60 85.75
0.018 ---- 0.020 0.023 100.000 ---- 5.00 8.00 59.77 75.95
0.019 ---- 0.021 0.024 100.000 ---- 5.00 8.00 53.95 67.75
0.020 0.001 0.022 0.024 100.000 ---- 8.00 8.00 51.83 60.81
0.050 ±0.002 0.007 0.062 400.000 1200.00 12.00 5.00 7981.00 9528.00
0.055 ±0.002 0.007 0.068 400.000 1200.00 12.00 5.00 6642.00 7815.00
0.060 ±0.002 0.007 0.073 500.000 1200.00 14.00 5.00 5614.00 6526.00
0.065 ±0.002 0.007 0.078 500.000 1200.00 14.00 5.00 4807.00 5531.00
0.070 ±0.002 0.007 0.083 500.000 1200.00 15.00 5.00 4163.00 4747.00
0.075 ±0.002 0.007 0.088 550.000 1200.00 15.00 5.00 3640.00 4119.00
0.080 ±0.002 0.008 0.094 550.000 1200.00 16.00 5.00 3209.00 3608.00
