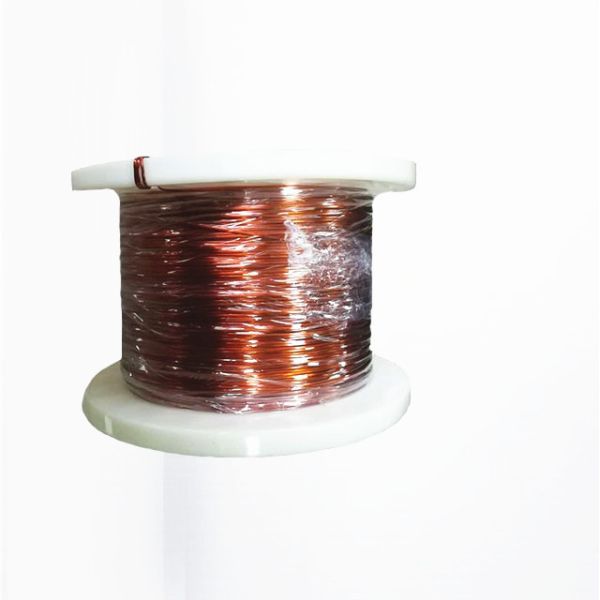

AIW / EIW / UEW 0.012mm Copper Wire Rectangular Enameled Magnet Wire
AIW / EIW / UEW 0.012mm Copper Wire Rectangular Enameled Magnet Wire
AIW / EIW / UEW 0.012mm Copper Wire Rectangular Enameled Magnet Wire
AIW / EIW / UEW 0.012mm Copper Wire Rectangular Enameled Magnet Wire
AIW / EIW / UEW 0.012mm Copper Wire Rectangular Enameled Magnet Wire
AIW / EIW / UEW 0.012mm Copper Wire Rectangular Enameled Magnet Wire
Specifications
Brand Name :
Rvyuan
Certification :
IEC/NEMA/JIS/RoHS/ISO
Place of Origin :
China
Price :
Negotiation
Payment Terms :
Negotiation
MOQ :
Different types with differet MOQ
Packaging Details :
Spool with carton
Delivery Time :
2-15 workding days
Supply Ability :
200 Ton/Tons per Month
Model Number :
0.02-1.8mm
Thickness :
0.04-1.8mm
Insulation :
AIW/EIW/UEW
Stock :
Available
Width :
0.155-7.5mm
Thermal class :
155/180/220
Conductor :
Copper
Conductor type :
Solid
Coating :
Enamel
Description

AIW/EIW/UEW 0.012MM COPPER WIRE RECTANGULAR ENAMELED MAGNET WIRE

Round & Rectangular enameled copper winding wire is a core product in everyday products and modern infrastructure, and we offer a complete range of copper wire for all kinds of applications. Round and rectangular enameled copper wire Besides the wide standard range we offer customer specific solutions, tailor-made to suit every possible needs. Whether standard or special, all our winding wire is manufactured in a high-precision process using state-of-the-art technology and manned by dedicated professionals.

FEATURE AND BENEFITS

  • Excellent bending property

  • High flexibility of the enamel

  • Good resistance to abrasion

  • High mechanical property

  • Higher thermal property

  • Good resistance to refrigerant and freon

  • Suitable for windings that are subjected to constantly high temperature and mechanical stress

  • Good chemical resistance

  • Outstanding mechanical and chemical property

APPLICATION

  • 120 degree flat enameled wire for oil-immersed transformer

  • 130,155,180 degree flate enameled wire are widely used in all kinds of magnet coil

  • 200 degree flat enameled wire works constantly in high temperature

  • 240 degree flat enameled wire for magnet coils of aviation,military and marine appication

AIW / EIW / UEW 0.012mm Copper Wire Rectangular Enameled Magnet Wire

SPECIFICATION

Product Class Solderable Self bonding Product Range
Width(mm) Thickness(mm) Width-Thickness Ratio
AIWJ 220℃ x x 0.155--7.5 0.02-1.8 1.25
EI/AIWJ 220℃ x x 0.155--7.5 0.02-1.8 1.25
EI/AIWJ 200℃ x x 0.155--7.5 0.02-1.8 1.25
UEWJ 180℃ 0 x 0.155--7.5 0.02-1.8 1.25
EIWJ 180℃ x x 0.155--7.5 0.02-1.8 1.25
SEIWJ 180℃ 0 x 0.155--7.5 0.02-1.8 1.25
UEWJ 155℃ 0 x 0.155--7.5 0.02-1.8 1.25
UEWJ 130℃ 0 x 0.155--7.5 0.02-1.8 1.25
EI/SBWJ 180℃ x 0 0.155--7.5 0.02-1.8 1.25
SEI/SBWJ 180℃ 0 0 0.155--7.5 0.02-1.8 1.25
EI/AI/SBWJ 220℃ x 0 0.155--7.5 0.02-1.8 1.25
AI/SBWJ 220℃ x 0 0.155--7.5 0.02-1.8 1.25
UE/SBWJ 180℃ 0 0 0.155--7.5 0.02-1.8 1.25
UE/SBWJ 155℃ 0 0 0.155--7.5 0.02-1.8 1.25
UE/SBWJ 130℃ 0 0 0.155--7.5 0.02-1.8 1.25
