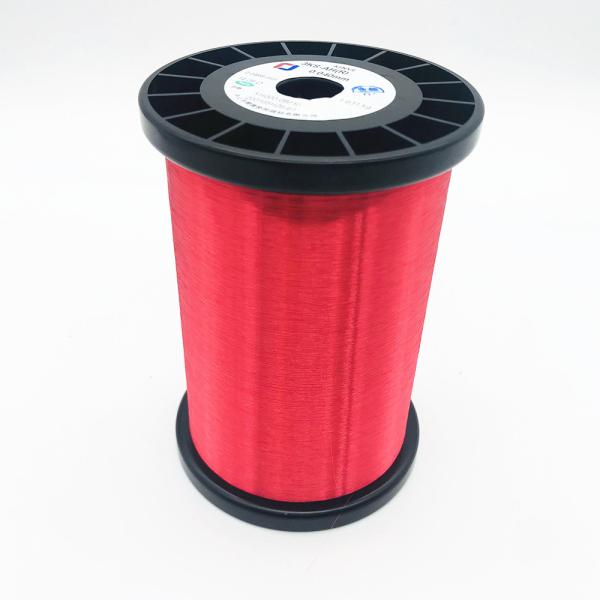

2uew 155 / 180 Ultra Fine Enameled Copper Wire Motor Winding
2uew 155 / 180 Ultra Fine Enameled Copper Wire Motor Winding
Specifications
Brand Name :
Rvyuan
Model Number :
UEW
Certification :
ISO9001/ISO14001/UL/SGS
Place of Origin :
China
MOQ :
10kg
Price :
Negotiation
Payment Terms :
Negotiation
Supply Ability :
Satisfy your demand
Delivery Time :
2-15 workding days
Packaging Details :
Spool with carton
Name :
2UEW 155 / 180 motor winding wire ultra fine enameled copper wire
Diameter :
0.08mm
Standard :
GB/T5013.3/IEC60245-3:1994
Conductor :
Copper
Insulation :
Polyurethane
Rated Temperature :
155/180
Key word :
2UEW 155 / 180 motor winding wire ultra fine enameled copper wire
Description

2UEW 155 / 180 motor winding wire ultra fine enameled copper wire

We are able to cusomize the enameled copper wire as your requirements.

Enameled copper wire is mainly used for winding wires in general motors, electrical appliances, instruments, transformers and other workplaces, such as polyurethane enameled copper wire, modified polyester enameled wire.

Name

2UEW 155 / 180 motor winding wire ultra fine enameled copper wire
Key word Enameled copper wire
Insulation Polyurethane
Thermal rating 155degree
Diameter of the enameled copper wire 0.08mm
Key word

2UEW 155 / 180 motor winding wire ultra fine enameled copper wire
Characteristics
Technical requests
Test Results
Sample 1
Sample 2
Surface
Good
OK
OK
Bare Wire Diameter
0.040±
0.001
0.040
0.040
0.001
Insulation Film Thickness
Min. 0.002 mm
0.003
0.003
Bonding Film Thickness
Min. 0.002mm
0.003
0.003
Overall Diameter
≤ 0.054 mm
0.0534
0.0534
Continuity of Covering
Max. 3 pcs
Max. 0
Max. 0
Elongation
≥ 14 %
21
22
Breakdown Voltage
Min. 350 V
Min. 1502 V
Min. 1502 V
Flexibility
/
/
/
Adherence
No crack
Good
Good
Cut through
Continur 2 times pass
230 ℃/Good
230 ℃/Good
Solder Test
Max. 2
Max. 1.5
Max. 1.5
Bonding Strength
Min. 5
13
13
Electrical Resistance(20℃)
13.83-14.43 Ω/m
14.23
14.24

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

2uew 155 / 180 Ultra Fine Enameled Copper Wire Motor Winding

2uew 155 / 180 Ultra Fine Enameled Copper Wire Motor Winding

2uew 155 / 180 Ultra Fine Enameled Copper Wire Motor Winding

2uew 155 / 180 Ultra Fine Enameled Copper Wire Motor Winding
