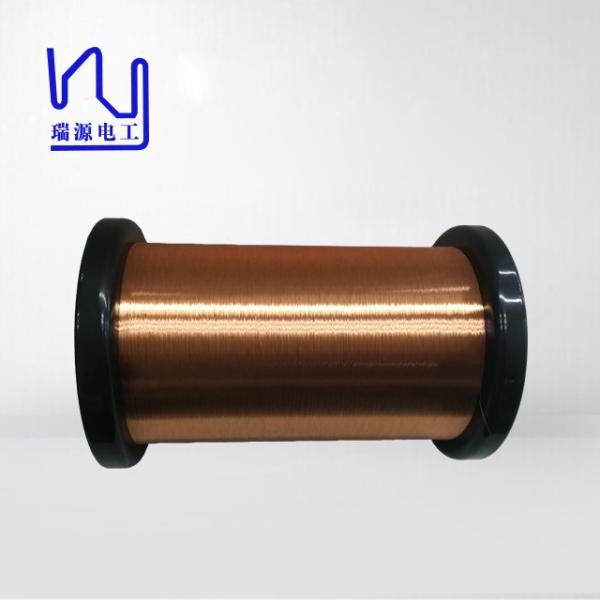

52 Awg Enameled Copper Winding Wire 2uew 155 / 180 Ultra Fine
52 Awg Enameled Copper Winding Wire 2uew 155 / 180 Ultra Fine
Specifications
Brand Name :
Rvyuan
Model Number :
UEW
Certification :
ISO9001/ISO14001/UL/SGS
Place of Origin :
China
MOQ :
10kg
Price :
Negotiation
Payment Terms :
Negotiation
Supply Ability :
Satisfy your demand
Delivery Time :
2-15 workding days
Packaging Details :
Spool with carton
Name :
52 AWG 2UEW 155 / 180 ultra fine enameled copper winding wire
Diameter :
0.02mm
Standard :
GB/T5013.3/IEC60245-3:1994
Conductor :
Copper
Insulation :
Polyurethane
Rated Temperature :
155/180
Key word :
52 AWG 2UEW 155 / 180 ultra fine enameled copper winding wire
Description

52 AWG 2UEW 155 / 180 ultra fine enameled copper winding wire

Fine Copper Wire

UL Recognized Class 130℃ Product TYPU-130/TYA1-130 Super fine enamelled copper wire

UL Recognied Class 155℃ Product TYAI-U155, AND 180 ℃ Product TYFU-H180.fine enamelled copper wire

Features and Benefits:

1. Extream size:0.020mm

2 Miniaturization: it possible to produce smaller device technologies

3. Significant benefits to design engineers

Name

52 AWG 2UEW 155 / 180 ultra fine enameled copper winding wire

Key word

Enameled copper wire

Insulation

Polyurethane

Thermal rating

155degree

Diameter of the enameled copper wire

0.02mm

Key word

52 AWG 2UEW 155 / 180 ultra fine enameled copper winding wire

Characteristics
Technical requests
Test Results
Sample1
Sample 2
Sample 3
Surface
Good
OK
OK
OK
Bare Wire Diameter
0.020±0.001
0.020
0.020
0.020
Insulation thickness
/
/
/
/
Overall diameter
0.022-0.024 mm
0.023
0.023
0.023
Electrical Resistance
≤60.810Ω/m
56.453
56.436
56.551
Elongation
≥ 8%
11
11
12
Breakdown voltage
≥130V
253
261
238
Pinbole test
≤ 8 hole/5m
1
0
1
Test items
Technical Requests
Results
Adhesive
No crack
OK
Cut-through
200℃ 2mins no crack
OK
Heat Shock
180±5℃/30min no crack
OK
Solder Ability
390± 5℃ 2Sec Smooth
OK

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

52 Awg Enameled Copper Winding Wire 2uew 155 / 180 Ultra Fine

52 Awg Enameled Copper Winding Wire 2uew 155 / 180 Ultra Fine

52 Awg Enameled Copper Winding Wire 2uew 155 / 180 Ultra Fine

52 Awg Enameled Copper Winding Wire 2uew 155 / 180 Ultra Fine
