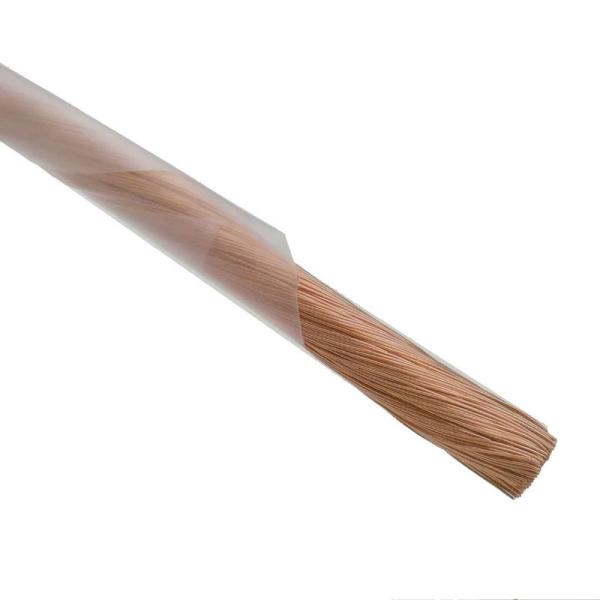

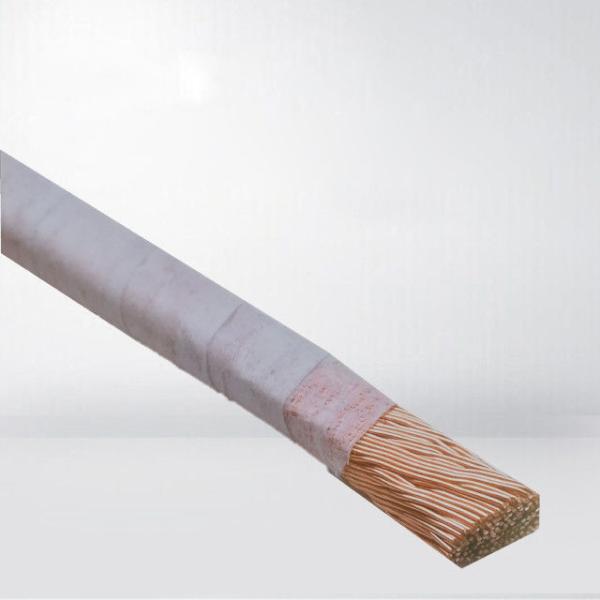

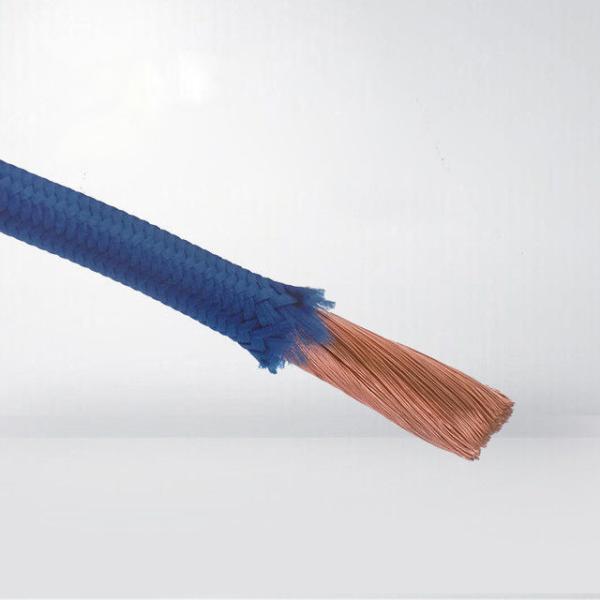

RF Transformers 1.2x1.2mm Copper Litz Wire Stranded Enameled Wire Profiled Litz Wire Nature Color
RF Transformers 1.2x1.2mm Copper Litz Wire Stranded Enameled Wire Profiled Litz Wire Nature Color
RF Transformers 1.2x1.2mm Copper Litz Wire Stranded Enameled Wire Profiled Litz Wire Nature Color
RF Transformers 1.2x1.2mm Copper Litz Wire Stranded Enameled Wire Profiled Litz Wire Nature Color
RF Transformers 1.2x1.2mm Copper Litz Wire Stranded Enameled Wire Profiled Litz Wire Nature Color
RF Transformers 1.2x1.2mm Copper Litz Wire Stranded Enameled Wire Profiled Litz Wire Nature Color
RF Transformers 1.2x1.2mm Copper Litz Wire Stranded Enameled Wire Profiled Litz Wire Nature Color
RF Transformers 1.2x1.2mm Copper Litz Wire Stranded Enameled Wire Profiled Litz Wire Nature Color
Specifications
Brand Name :
Rvyuan
Certification :
IEC/NEMA/JIS/RoHS/ISO
Place of Origin :
China
MOQ :
Different types with differet MOQ
Price :
Negotiation
Payment Terms :
Negotiation, T/T, L/C
Supply Ability :
Satisfy your demand
Delivery Time :
2-15 workding days
Packaging Details :
Spool with carton
Model Number :
1.2x1.2mm
Insulation :
PEW/UEW/AIW
Diameter :
1.2X1.2MM
Color :
Nature
Material :
Copper
Thermal Class :
130/155/180/200/220
Certificates :
ROHS/UL/SGS/ISO9001:2008
Breakdown Voltage :
Over 3KV
OEM :
Yes
Description

TRANSFORMER 1.2x1.2 MM COPPER LITZ WIRE STRANDED ENAMELED WIRE PROFILED LITZ WIRE NATURE COLOR

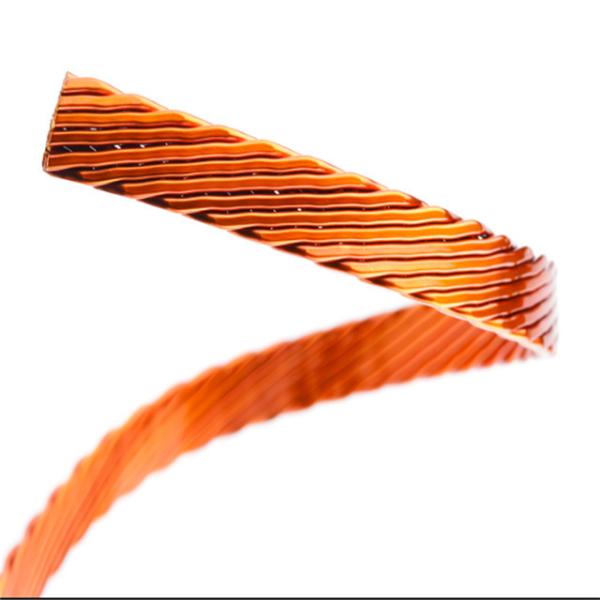

Profiled (mechanically shaped) litz wires allow optimal utilization of available winding area due to the superior filling factor of rectangular or square litz wire cross sections. In comparison to a standard round cross section construction, profiled litz wire can increase the filling factor by up to 20%.The design advantages of profiled litz wire can only be fully realized using products with consistent, precise dimensions. This dimensional stability is only possible with exact control over each process step.

FEATURES

  • Excellent bond strengths achieved by hot air bondind

  • Good memory behavior

  • Simplified and economical production of coils

  • Profiled dimensions to customer specification

  • Profiling also possible without any additional coatings

  • Dimensionally stable

APPLICATION

  • Induction coating hobs

  • RF transformers

  • RF transducers

  • E-Motors

SPECIFICATION

Smallest sizes (width x height)

1.2 x 1.2

mm

Ratio (width x height)

01:01.7

mm

Tolerance (±)

0.1

mm

Diameter of single wires

0.020-0.500

mm

RF Transformers 1.2x1.2mm Copper Litz Wire Stranded Enameled Wire Profiled Litz Wire Nature Color
