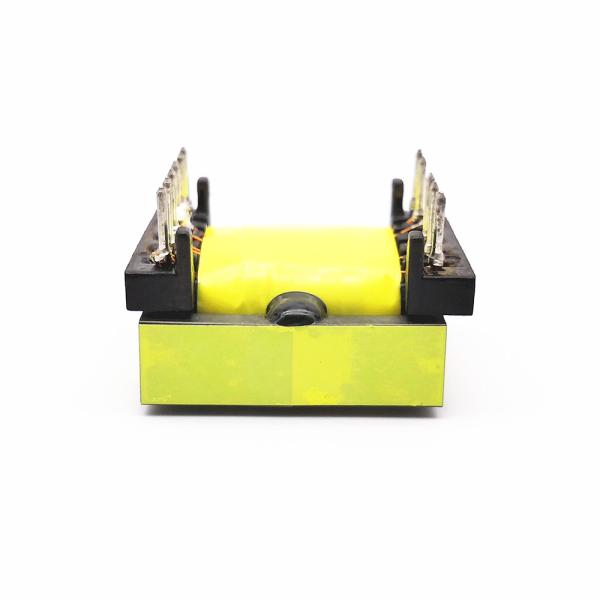

EFD30 High Voltage Flyback Transformer DC To AC Transformer Electronic Transformer
EFD30 High Voltage Flyback Transformer DC To AC Transformer Electronic Transformer
EFD30 High Voltage Flyback Transformer DC To AC Transformer Electronic Transformer
EFD30 High Voltage Flyback Transformer DC To AC Transformer Electronic Transformer
EFD30 High Voltage Flyback Transformer DC To AC Transformer Electronic Transformer
EFD30 High Voltage Flyback Transformer DC To AC Transformer Electronic Transformer
EFD30 High Voltage Flyback Transformer DC To AC Transformer Electronic Transformer
EFD30 High Voltage Flyback Transformer DC To AC Transformer Electronic Transformer
Specifications
Brand Name :
Rvyuan
Model Number :
EE/EP/EC
Certification :
ROHS/SGS/UL/ISO
Place of Origin :
China
MOQ :
Different types with differet MOQ
Price :
Negotiation
Payment Terms :
Negotiation
Supply Ability :
Satisfy your demand
Delivery Time :
2-15 workding days
Packaging Details :
Spool with carton
Product Name :
High Fequency Transformer
Type :
Dry-type
Standard :
IEC/JIS/ISO/UL
Frequency :
1KHz -200KHz
Rated voltage :
10kV-35kV
Rated capacity :
30-3000kva
Description

EFD30 HIGH VOLTAGE FLYBACK TRANSFORMER DC TO AC TRANSFORMER ELECTRONIC TRANSFORMER

High-frequency transformers operate using the same basic principles as standard transformers. The primary difference is that, as their name implies, they operate at much higher frequencies — while most line voltage transformers operate at 50 or 60 Hz, high-frequency transformers use frequencies from 20 KHz to over 1MHz.Operating at a higher frequency has many benefits, the first of which is size.For any given power rating, the higher the frequency, the smaller the transformer can be.Second, because the transformer is smaller, less copper wire is needed, thus reducing the losses and helping to make the transformer more efficient. Also, since the core is typically ferrite, a wide variety of geometries are available so the transformer can be tailor-made for the application. Whether additional shielding or a specific form factor is required, the chances are good that a ferrite core exists to meet the requirement.transformer/distribuition transformer.

EFD30
Dimension(mm)
Pin Quantity(pcs)
Pin Array(mm)
Power
39*34.5*20
6+6
5
50-60W
Resistance(MAX)
Inductance
Leakage(MAX)
Working frequency
4-6=2.5Ω
4-6=880uH±10%
4-6=16uH
100KHz,1Vrms

EFD30 High Voltage Flyback Transformer DC To AC Transformer Electronic TransformerEFD30 High Voltage Flyback Transformer DC To AC Transformer Electronic Transformer
