0.155-7.5mm Rectangular Enameled Copper Wire Winding Wire Copper For Transformer
0.155-7.5mm Rectangular Enameled Copper Wire Winding Wire Copper For Transformer
0.155-7.5mm Rectangular Enameled Copper Wire Winding Wire Copper For Transformer
0.155-7.5mm Rectangular Enameled Copper Wire Winding Wire Copper For Transformer
Specifications
Brand Name :
Rvyuan
Model Number :
0.155-7.5mm
Certification :
UL/ROHS/ICE/ISO9001/ISO14001
Place of Origin :
China
MOQ :
10 Kilogram/Kilograms
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
200 Ton/Tons per Month
Delivery Time :
2-15 days
Packaging Details :
Carton
Type :
Insulated
Conductor Material :
Copper
Conductor Type :
Solid
Insulation Material :
Enameled
Thermal Rating :
220
Insulation :
UEW
Description

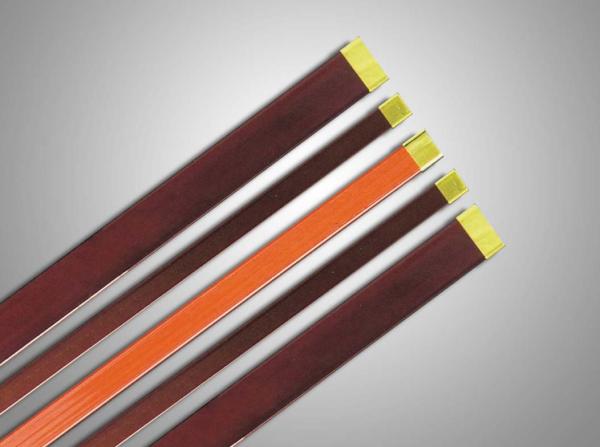

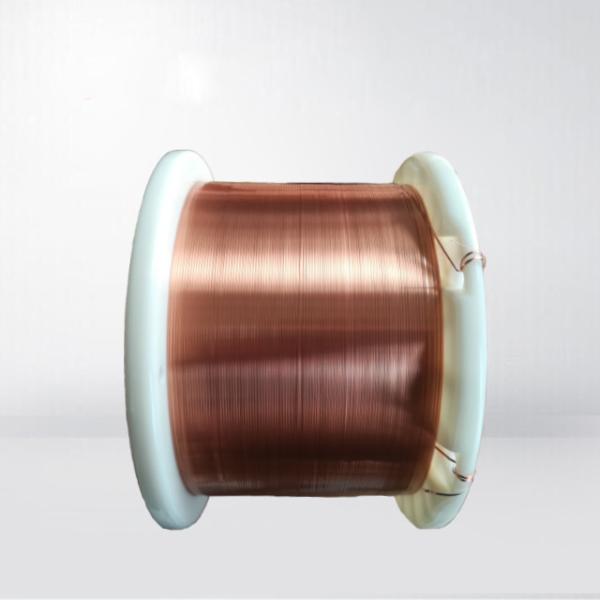

0.155-7.5MM RECTANGULAR ENAMELED COPPER WIRE WINDING WIRE COPPER FOR TRANSFORMER

Rectangular enameled copper wire is a core product in everyday products and modern infrastructure, and we offer a complete range of copper wire for all kinds of applications. Round and rectangular enameled copper wire Besides the wide standard range we offer customer specific solutions, tailor-made to suit every possible needs. Whether standard or special, all our winding wire is manufactured in a high-precision process using state-of-the-art technology and manned by dedicated professionals.

0.155-7.5mm Rectangular Enameled Copper Wire Winding Wire Copper For Transformer

Insulation

Thermal Class

Solder ability

Self-bonding

Size Range

Width(mm)

Thickness(mm)

Ratio

AIWJ

220℃

x

x

0.155--7.5

0.02-1.8

1.25

EI/AIWJ

220℃

x

x

0.155--7.5

0.02-1.8

1.25

EI/AIWJ

200℃

x

x

0.155--7.5

0.02-1.8

1.25

UEWJ

180℃

0

x

0.155--7.5

0.02-1.8

1.25

EIWJ

180℃

x

x

0.155--7.5

0.02-1.8

1.25

SEIWJ

180℃

0

x

0.155--7.5

0.02-1.8

1.25

UEWJ

155℃

0

x

0.155--7.5

0.02-1.8

1.25

UEWJ

130℃

0

x

0.155--7.5

0.02-1.8

1.25

EI/SBWJ

180℃

x

0

0.155--7.5

0.02-1.8

1.25

SEI/SBWJ

180℃

0

0

0.155--7.5

0.02-1.8

1.25

EI/AI/SBWJ

220℃

x

0

0.155--7.5

0.02-1.8

1.25

AI/SBWJ

220℃

x

0

0.155--7.5

0.02-1.8

1.25

UE/SBWJ

180℃

0

0

0.155--7.5

0.02-1.8

1.25

UE/SBWJ

155℃

0

0

0.155--7.5

0.02-1.8

1.25

UE/SBWJ

130℃

0

0

0.155--7.5

0.02-1.8

1.25

Item
Characteristics
Standard

Test Result
1
Apperance
Smooth Equality
Smooth Equality
2
Conductor Diameter
Width
2.4
±0.006
2.373
Thickness
0.15
±0.009
0.155
3
Thickness Insulation
Width
≥0.020
0.032
Thickness
≥0.030
0.040
4
Overall Diameter
Width
≤2.50
2.405
Thickness
≤0.20
0.195
5
Pinhole
≤3hole/m
0
6
Elongation
≥30 %
45
7
Flexibility and Adherence
No crack
No crack
8
Conductor Resistance (Ω/km at 20℃)
≤52.94
48.28
9
Breakdown Voltage
≥0.7KV
1.5KV
10
Heat shock
No Crack
No Crack
Conclution
Pass
