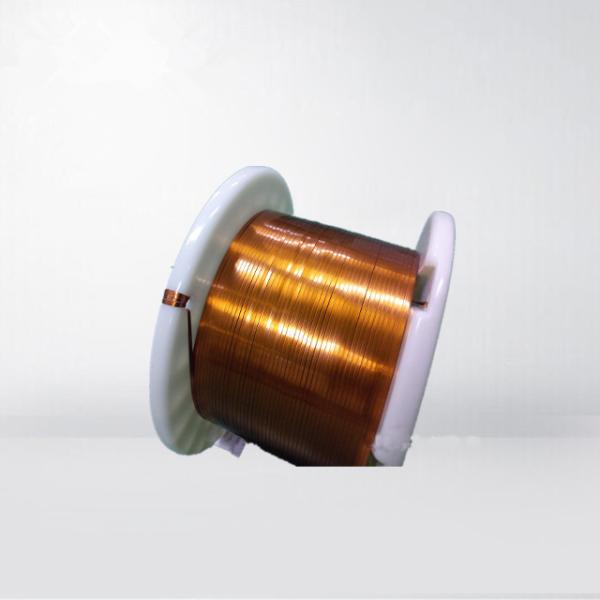

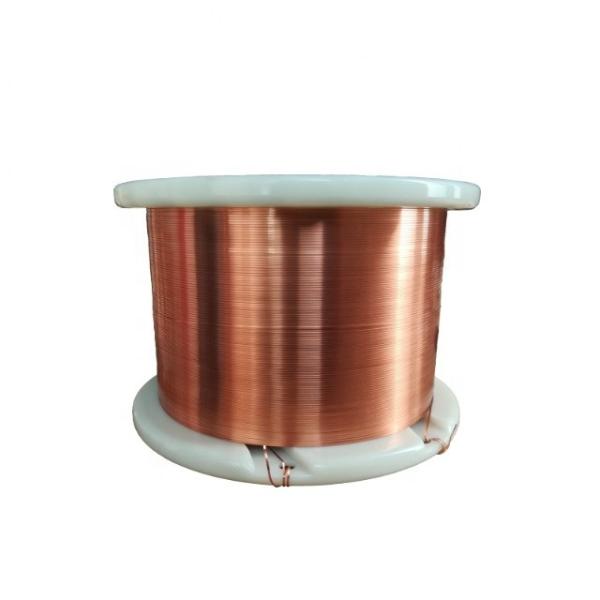

UEW Flat Copper Wire / Solderable Enamelled Copper Wire Polyurethane Insulation
UEW Flat Copper Wire / Solderable Enamelled Copper Wire Polyurethane Insulation
UEW Flat Copper Wire / Solderable Enamelled Copper Wire Polyurethane Insulation
UEW Flat Copper Wire / Solderable Enamelled Copper Wire Polyurethane Insulation
UEW Flat Copper Wire / Solderable Enamelled Copper Wire Polyurethane Insulation
UEW Flat Copper Wire / Solderable Enamelled Copper Wire Polyurethane Insulation
UEW Flat Copper Wire / Solderable Enamelled Copper Wire Polyurethane Insulation
UEW Flat Copper Wire / Solderable Enamelled Copper Wire Polyurethane Insulation
Specifications
Brand Name :
Rvyuan
Model Number :
0.3 X 0.1mm
Certification :
IEC/NEMA/JIS/RoHS/ISO
Place of Origin :
China
MOQ :
Different types with differet MOQ
Price :
Negotiation
Payment Terms :
Negotiation, T/T, L/C
Supply Ability :
200 Ton/Tons per Month
Delivery Time :
2-15 workding days
Packaging Details :
Spool with carton
Thickness :
0.1mm
width :
0.3mm
Equivalent Round Wire Diameter :
0.12~3.2mm
Color :
Nature
Insulation :
polyurethane
Conductor :
copper
Description

UEW FLAT COPPER WIRE SOLDERABLE ENAMELED COPPER WIRE POLYURETHANE INSULATION

Rectuangule or flat enameled copper wire consisits two parts: width and thickness. When we describe the size, it likes thickness x width or width x thickness.Rectangular or square wire is made from base copper with rectangular or square shape, it has high advantages compare with round wire, and applied in many field.With the development of technology, electric devices, including laptop computers, mobiles and more, are becoming smaller and compact these days. Along with the trend, coils that are used inside of the devices are required to be compact and more powerful to save the space.Our rectangular wire will be the best solution to satisfy those needs.

FEATURES AND BENEFITS:

  • High space factor. Higher density of conductor makes component smaller or makes component with high efficiency, save material cost.

  • The coil made from rectangular wire has better cooling efficiency.

  • Rectangular wire can be wound with different mode.

  • The coil can be better shape, flat and smooth.

APPLICATION:

1) 120 degree flat enameled wire for oil-immersed transformer
2) 130,155,180 degree flate enameled wire are widely used in all kinds of magnet coil
3) 200 degree flat enameled wire works constantly in high temperature
4) 240 degree flat enameled wire for magnet coils of aviation,military and marine appication

UEW Flat Copper Wire / Solderable Enamelled Copper Wire Polyurethane Insulation

Product Class Solderable Self bonding Product Range
Width(mm) Thickness(mm) Width-Thickness Ratio
AIWJ 220℃ x x 0.155--7.5 0.02-1.8 1.25
EI/AIWJ 220℃ x x 0.155--7.5 0.02-1.8 1.25
EI/AIWJ 200℃ x x 0.155--7.5 0.02-1.8 1.25
UEWJ 180℃ 0 x 0.155--7.5 0.02-1.8 1.25
EIWJ 180℃ x x 0.155--7.5 0.02-1.8 1.25
SEIWJ 180℃ 0 x 0.155--7.5 0.02-1.8 1.25
UEWJ 155℃ 0 x 0.155--7.5 0.02-1.8 1.25
UEWJ 130℃ 0 x 0.155--7.5 0.02-1.8 1.25
EI/SBWJ 180℃ x 0 0.155--7.5 0.02-1.8 1.25
SEI/SBWJ 180℃ 0 0 0.155--7.5 0.02-1.8 1.25
EI/AI/SBWJ 220℃ x 0 0.155--7.5 0.02-1.8 1.25
AI/SBWJ 220℃ x 0 0.155--7.5 0.02-1.8 1.25
UE/SBWJ 180℃ 0 0 0.155--7.5 0.02-1.8 1.25
UE/SBWJ 155℃ 0 0 0.155--7.5 0.02-1.8 1.25
UE/SBWJ 130℃ 0 0 0.155--7.5 0.02-1.8 1.25
