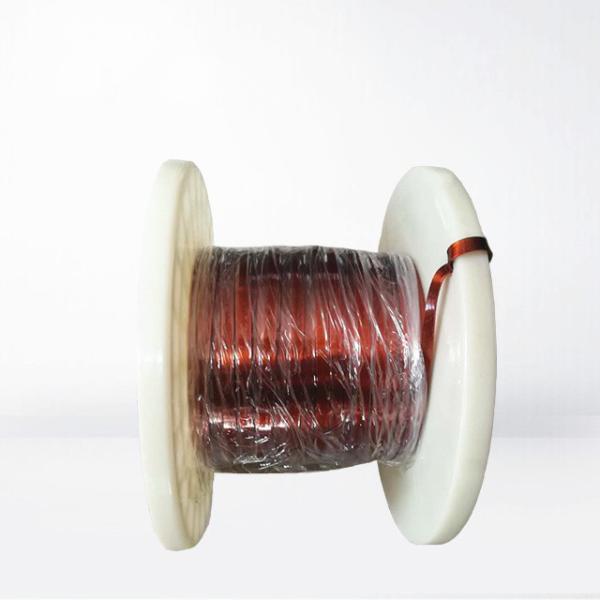

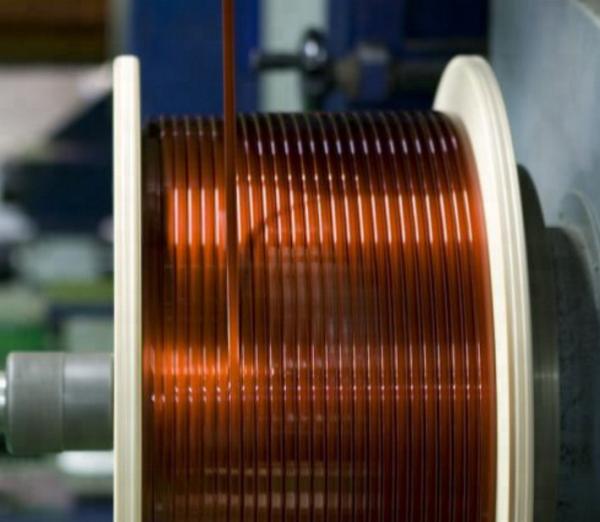

Self Bonding Polyurethane UEW Class 180 Rectangular Enameled Copper Wire Flat Ultra Fine Copper Wire
Self Bonding Polyurethane UEW Class 180 Rectangular Enameled Copper Wire Flat Ultra Fine Copper Wire
Self Bonding Polyurethane UEW Class 180 Rectangular Enameled Copper Wire Flat Ultra Fine Copper Wire
Self Bonding Polyurethane UEW Class 180 Rectangular Enameled Copper Wire Flat Ultra Fine Copper Wire
Self Bonding Polyurethane UEW Class 180 Rectangular Enameled Copper Wire Flat Ultra Fine Copper Wire
Self Bonding Polyurethane UEW Class 180 Rectangular Enameled Copper Wire Flat Ultra Fine Copper Wire
Self Bonding Polyurethane UEW Class 180 Rectangular Enameled Copper Wire Flat Ultra Fine Copper Wire
Self Bonding Polyurethane UEW Class 180 Rectangular Enameled Copper Wire Flat Ultra Fine Copper Wire
Specifications
Brand Name :
Rvyuan
Model Number :
0.15*1.00mm
Certification :
UL/ISO/SGS
Place of Origin :
China
MOQ :
20-100kg
Payment Terms :
L/C, T/T
Delivery Time :
within 5-10 working days
Packaging Details :
Carton and pallet
Price :
Negotiation
Supply Ability :
200 Ton/Tons per Month
Product name :
Self bonding flat copper wire
Thickness :
0.02-1.8mm
width :
0.155-7.5mm
width to thickess ratio :
1:1.5-1:25
Color :
Nature/Black
Insulation :
UEW/AIW/EIW
Thermal Class :
155-220
Rated Voltage :
1.8KV
Description

SELF BONDING POLYURETHANE EUW CLASS 180 RECTANGULAR ENAMELED COPPER WIRE FLAT ULTRA FINE COPPER WIRE

Customer has requested that to be more efficient in using space, high electricity and density in the developing stage of the high spec and quality coil. We, Unimac Japan have developed this product successfully by using the above the requirements. The property of our flat magnet wire outweigh the round wire which is from 0.07mm to 1.7mm in a cross section, and the flat wire's conductor was insulated accordingly. It will give you a wide-ranged of possibility on your products. In addition, it will contribute to the minimization of volume, weight reduction and enhance the electrical efficiency on our product.
After many years of development, we have about 1000sizes of selfbonding flat enameled coppre wire
Conductor thickness:0.02-1.8mm
Conductor widthe:0.155-7.5mm
Equivalent round wire diameter:0.12-3.2mm
Widtth thickness ratio:1:1.5-1:25

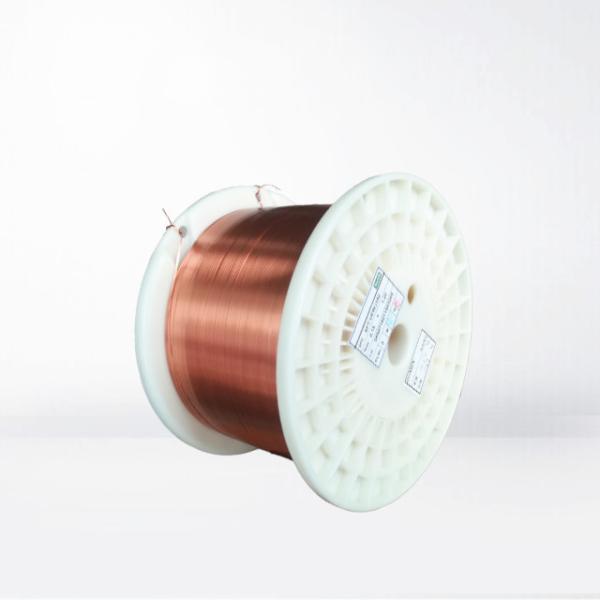

Self Bonding Polyurethane UEW Class 180 Rectangular Enameled Copper Wire Flat Ultra Fine Copper Wire

Item

Characteristics

Standard

Test Result

1

Apperance

Smooth Equality

Smooth Equality

2

Conductor Diameter

Width

3.00

±0.006

2.984

Thickness

0.20

±0.009

0.194

3

Thickness Insulation

Width

---

---

Thickness

0.02

0.048

4

Overall Diameter

Width

3.1

3.064

Thickness

0.25

0.242

5

Pinhole

≤3hole/m

0

6

Elongation

≥30 %

45

7

Flexibility and Adherence

No crack

No crack

8

Conductor Resistance (Ω/km at 20℃)

≤31.68

31.08

9

Breakdown Voltage

≥0.7KV

1.5KV

10

Heat shock

No Crack

No Crack

Conclution

Pass
