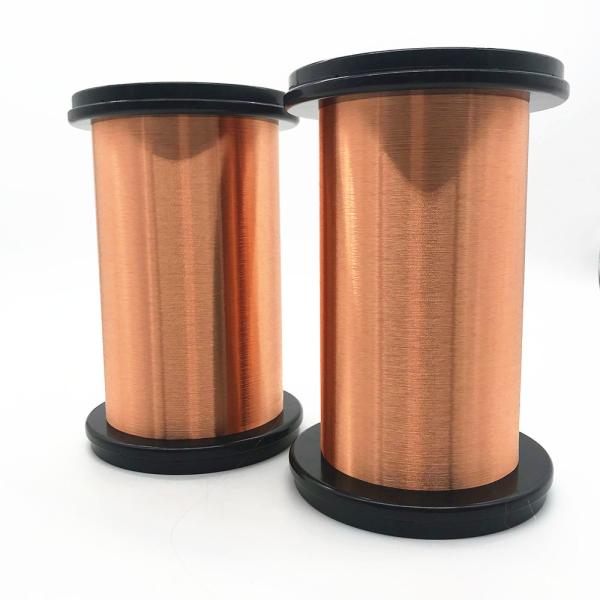

IEC Standard Self Bonding Enameled Copper Wire / Copper Magnet Wire 2UEW
IEC Standard Self Bonding Enameled Copper Wire / Copper Magnet Wire 2UEW
IEC Standard Self Bonding Enameled Copper Wire / Copper Magnet Wire 2UEW
IEC Standard Self Bonding Enameled Copper Wire / Copper Magnet Wire 2UEW
IEC Standard Self Bonding Enameled Copper Wire / Copper Magnet Wire 2UEW
IEC Standard Self Bonding Enameled Copper Wire / Copper Magnet Wire 2UEW
IEC Standard Self Bonding Enameled Copper Wire / Copper Magnet Wire 2UEW
IEC Standard Self Bonding Enameled Copper Wire / Copper Magnet Wire 2UEW
Specifications
Brand Name :
Rvyuan
Model Number :
UEW
Certification :
ISO9001/ISO14001/UL/SGS
Place of Origin :
China
MOQ :
Different types with differet MOQ
Price :
Negotiation
Payment Terms :
Negotiation
Supply Ability :
Satisfy your demand
Delivery Time :
2-15 workding days
Packaging Details :
Spool with carton
Color :
Nature
Insulation :
UEW
Packing :
Plastic Spool
Size Range :
0.011-0.8mm
Bonding layer :
Hot wind/solvent
Thermal Class :
155/180
Description

IEC STANDARD SELF BONDING ENAMELED COPPER WIRE COPPER MAGNET WIRE

IEC Standard Self Bonding Enameled Copper Wire / Copper Magnet Wire 2UEW IEC Standard Self Bonding Enameled Copper Wire / Copper Magnet Wire 2UEW

Tianjin Ruiyuan Electric Material Co., Ltd. was founded in 2002. In pioneering stage,we were mainly engaged in Ultra-fine Enameled Wire.Due to the successful promotion of 0.028mm enameled wire in the FBT market, Ruiyuan had become the first Chinese brand of enameled wire to enter the display industry. And serve a number of world-renowned customers, Hitachi, Toshiba, Samsung, Haier and so on. At present, 0.011mm enameled wire can be mass produced.

In 2016, relying on the background of big data, the company followed the trend and entered the cross-border E-commerce industry. Our products were expanded to Triple insulated wire, Silk Covered Litz Wire,Taped Litz Wire, Transformer , and the business areas expanded all over the world. The main customers are concentrated in European high-end market, Germany, Italy, Poland, and Turkey. Extremely well meeting European market standards and certification is our advantage.


FEATURES AND BENEFITS

  • Good resistance to refrigerant and freon

  • Suitable for windings that are subjected to constantly high temperature and mechanical stress

  • Good chemical resistance

  • Outstanding mechanical and chemical property

APPLICATION

  • Small type motor ( Electric household appliance, Toys & etc. )

  • Transformer for measuring instrument

  • For communication : High frequency coil for transformer, Coil for power source transformer

  • Coil-small transformer, TV, speaker & etc.

SPECIFICATION

Characteristics

Technical requests

Test Results

Conclusion

Sample 1

Sample 2

Sample 3

1

Surface

Good

OK

OK

OK

OK

2

Bare Wire Diameter

0.300±

0.003

0.3

0.3

0.3

OK

0.003

3

Coating Thickness

≥ 0.026 mm

0.031

0.03

0.031

OK

4

Overall Diameter

0.326~0.337 mm

0.331

0.33

0.331

OK

5

Conductor Resistance

0.225~0.264 Ω/m

0.252

0.241

0.258

OK

6

Elongation

≥ 25 %

33.5

33.8

35.3

OK

7

Breakdown Voltage

≥ 2100 V

6358 6373

6232 6356

6279 6318

OK

6241 6333

6223 6242

6289 6301

6429

6256

6276

8

Pinhole Test

≤ 5 hole/5m

0

0

0

OK

9

Enamel Continuity

≤ 3 hole/30m

0

0

0

OK

10

Adhesive

≥0.45

0.48

0.47

0.48

OK

Remark:

Test Items

Technical Requests

Results

Conclusion:

1

Adhesive

N

OK

Approved

2

Heat Shock

175℃/1h no crack

OK

3

Solder Ability

385℃/2S Smooth

OK
