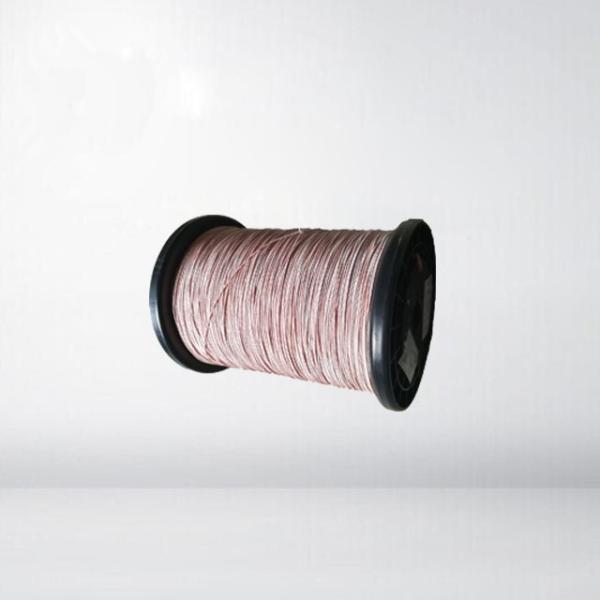

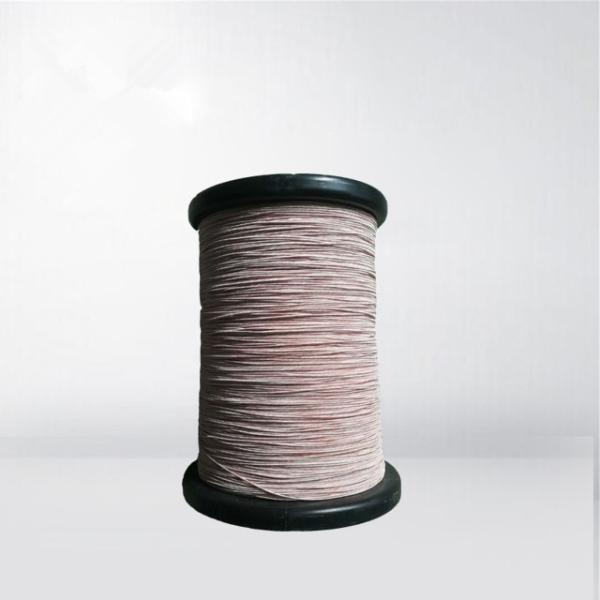

0.1 - 1.0mm Self Bonding Silk Covered Triple Insulated Wire UL Certificated
0.1 - 1.0mm Self Bonding Silk Covered Triple Insulated Wire UL Certificated
0.1 - 1.0mm Self Bonding Silk Covered Triple Insulated Wire UL Certificated
0.1 - 1.0mm Self Bonding Silk Covered Triple Insulated Wire UL Certificated
0.1 - 1.0mm Self Bonding Silk Covered Triple Insulated Wire UL Certificated
0.1 - 1.0mm Self Bonding Silk Covered Triple Insulated Wire UL Certificated
0.1 - 1.0mm Self Bonding Silk Covered Triple Insulated Wire UL Certificated
0.1 - 1.0mm Self Bonding Silk Covered Triple Insulated Wire UL Certificated
Specifications
Brand Name :
Rvyuan
Certification :
IEC/NEMA/JIS/RoHS/ISO
Place of Origin :
China
MOQ :
Different types with differet MOQ
Price :
Negotiation
Payment Terms :
Negotiation, T/T
Supply Ability :
Satisfy your demand
Delivery Time :
2-15 workding days
Packaging Details :
Spool with carton
Model Number :
0.1 - 1.0mm
Insulation :
UEW/EIAIW/EIW
Diameter :
0.1 - 1.0MM
Color :
Red/Pink/Blue/Yellow
Material :
Copper
Thermal Class :
130/155/180/200/220
Certificates :
VDE/UL
Breakdown Voltage :
Over 3KV
Outer diameter :
0.11-1.02mm
Description

UL CERTIFICATED 0.1-1.0MM SELF BONDING SILK COVERED TRIPLE INSULATED WIRE

We may be the only one supplier who can provide class F/155 triple insulated wire which size starts from 0.15mm. At this level, our quality is better than Furukawa that was tested by some transofmer manuafactures whom used triple insulated wire from Furukawa.Silk covered triple insulated wire are extruded over the copper conductor. IEC60950 requires some Reinforced Insulation between the primary and secondary coils. Thus enamelled wire transformers can never omit the insulation tape or barrier tape: enamel coatings give poor electric insulation. In contrast, TIW can form primary and secondary coils without a need of barrier tape or interlayer tape in-between. By putting a stick silk from around the package in three layers of insulation surface, achieve three layers of insulation adhesive. Part can replace original adhesive three-tier insulation lines, costs and delivery the original factory.

FEATURES AND BENEFITS:

  • Certified as Reinforced Insulation; tree layers can resist up to 3,000 ACV for one minute.

  • Soldered without any surface layer bared (stripped).

  • Smoothly coiled by automatic coiling machines.

  • Offering a wide size choice of 0.1 to 1.0mm (conductor diameter

0.1 - 1.0mm Self Bonding Silk Covered Triple Insulated Wire UL Certificated

0.1 - 1.0mm Self Bonding Silk Covered Triple Insulated Wire UL Certificated

0.1 - 1.0mm Self Bonding Silk Covered Triple Insulated Wire UL Certificated

SPECIFICATION:

Conductor m/m End product m/m Maximum Conductor Resistance at 20 ℃ Minimum Elongation %
Diameter m/m Tolerance m/m Target outside diameter Tolerance m/m
0.1 ±0.008 0.3 ±0.02 2264.7 15
0.12 ±0.008 0.32 ±0.02 1786 15
0.14 ±0.008 0.34 ±0.02 1286 15
0.15 ±0.008 0.35 ±0.02 1111 15
0.16 ±0.008 0.36 ±0.02 908.8 15
0.17 ±0.008 0.37 ±0.02 853.5 15
0.18 ±0.008 0.38 ±0.02 757 15
0.19 ±0.008 0.39 ±0.02 676.2 15
0.2 ±0.008 0.4 ±0.02 607.6 15
0.21 ±0.008 0.41 ±0.02 549 15
0.22 ±0.008 0.42 ±0.02 498.4 15
0.23 ±0.008 0.43 ±0.02 454.5 15
0.24 ±0.008 0.44 ±0.02 416.2 15
0.25 ±0.008 0.45 ±0.02 382.5 15
0.26 ±0.010 0.46 ±0.02 358.4 15
0.27 ±0.010 0.47 ±0.02 331.4 15
0.28 ±0.010 0.48 ±0.02 307.3 15
0.29 ±0.010 0.49 ±0.02 285.7 20
0.3 ±0.010 0.5 ±0.02 262.9 20
0.32 ±0.010 0.52 ±0.02 230 20
0.35 ±0.010 0.55 ±0.02 191.2 20
0.37 ±0.010 0.57 ±0.02 170.6 20
0.4 ±0.010 0.6 ±0.02 145.3 20
0.45 ±0.010 0.65 ±0.02 114.2 20
0.5 ±0.010 0.7 ±0.02 91.4 20
0.55 ±0.020 0.75 ±0.02 78.2 20
0.6 ±0.020 0.8 ±0.02 65.3 20
0.65 ±0.020 0.85 ±0.02 88.3 20
0.7 ±0.020 0.9 ±0.02 47.2 20
0.75 ±0.020 0.95 ±0.02 41.2 20
0.8 ±0.020 1 ±0.02 36.1 25
0.85 ±0.020 1.05 ±0.02 31.9 25
0.9 ±0.020 1.1 ±0.02 28.4 25
0.95 ±0.020 1.15 ±0.02 25.4 25
1 ±0.030 1.2 ±0.02 23.3 25
