TIW Fine Enamelled Copper Wire PVC Insulation Rust Resistant Excellent Durability
TIW Fine Enamelled Copper Wire PVC Insulation Rust Resistant Excellent Durability
TIW Fine Enamelled Copper Wire PVC Insulation Rust Resistant Excellent Durability
TIW Fine Enamelled Copper Wire PVC Insulation Rust Resistant Excellent Durability
TIW Fine Enamelled Copper Wire PVC Insulation Rust Resistant Excellent Durability
TIW Fine Enamelled Copper Wire PVC Insulation Rust Resistant Excellent Durability
Specifications
Brand Name :
Ruiyuan
Model Number :
TIW -B
Certification :
UL/ISO9001/ISO14001/RoHS/Reach
Place of Origin :
China
MOQ :
3000 meters
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
200 Ton/Tons per Month
Delivery Time :
10-15 workding days
Packaging Details :
Carton with pallet
Type :
Insulated
Conductor Material :
Copper
Conductor Type :
Solid
Insulation Material :
PET
Size :
0.16mm
Rated Temperature :
130
Solderability :
Directly
Conductor :
Copper
Insulation :
PVC Insulation
Description

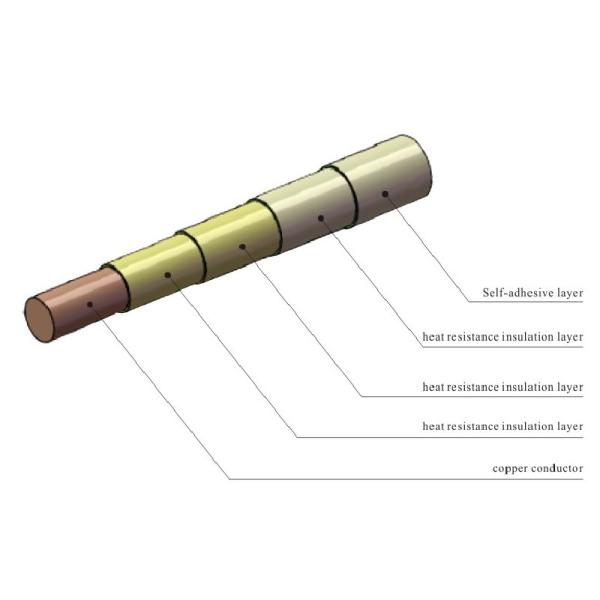

TIW -B 0.16MM ISO/UL CERTIFICATED TRIPLE INSUALTED WIRE TIW FINE ENAMELLED COPPER WIRE

Triple Insulated wire or TIW is wildely used in transformer, our quanlity is similar with Furukawa, even is better at CLASS F. Self solderable makes soldering process much easier. UL system certificated give you perfect quality.

We have 19 high-speed production lines with a monthly production capacity of 150 million meters, the largest production scale in China; we have our own insulation material formula and intellectual property rights; our triple insulated wire have passed UL, German VDE and China CQ C authority Certified, and obtained UL insulation system; we have a core competitive engineering and technical team, and continue to provide customers with quality products and services.

FEATURES AND BENEFITS
1. Greatly reduce the size and weight of transformers.
2. Greatly improve the efficiency of transformer by reducing the distance between coil.
3. Allow to wind directly on the top of enameled wires. Eliminate the interleaved insulation tapes, barriers and insulating sleeves.
4. Shock resistance, Corrosion Resistant
5. Excellent durability, Durable Resistant
6. Superior strength, Reliability
7. Rust resistant, Affordability
8. Low maintenance

TIW Fine Enamelled Copper Wire PVC Insulation Rust Resistant Excellent Durability

TIW Fine Enamelled Copper Wire PVC Insulation Rust Resistant Excellent Durability

Conductor m/m

End product m/m

Maximum Conductor Resistance at 20 ℃

Minimum Elongation %

Diameter m/m

Tolerance m/m

Target outside diameter

Tolerance m/m

0.15

±0.008

0.35

±0.02

1111

15

0.16

±0.008

0.36

±0.02

908.8

15

0.17

±0.008

0.37

±0.02

853.5

15

0.18

±0.008

0.38

±0.02

757

15

0.19

±0.008

0.39

±0.02

676.2

15

0.20

±0.008

0.40

±0.02

607.6

15

0.21

±0.008

0.41

±0.02

549

15

0.22

±0.008

0.42

±0.02

498.4

15

0.23

±0.008

0.43

±0.02

454.5

15

0.24

±0.008

0.44

±0.02

416.2

15

0.25

±0.008

0.45

±0.02

382.5

15

0.26

±0.010

0.46

±0.02

358.4

15

0.27

±0.010

0.47

±0.02

331.4

15

0.28

±0.010

0.48

±0.02

307.3

15

0.29

±0.010

0.49

±0.02

285.7

20

0.30

±0.010

0.50

±0.02

262.9

20

0.32

±0.010

0.52

±0.02

230

20

0.35

±0.010

0.55

±0.02

191.2

20

0.37

±0.010

0.57

±0.02

170.6

20

0.40

±0.010

0.60

±0.02

145.3

20

0.45

±0.010

0.65

±0.02

114.2

20

0.50

±0.010

0.70

±0.02

91.4

20

0.55

±0.020

0.75

±0.02

78.2

20

0.60

±0.020

0.80

±0.02

65.3

20

0.65

±0.020

0.85

±0.02

88.3

20

0.70

±0.020

0.90

±0.02

47.2

20

0.75

±0.020

0.95

±0.02

41.2

20

0.80

±0.020

1.00

±0.02

36.1

25

0.85

±0.020

1.05

±0.02

31.9

25

0.90

±0.020

1.10

±0.02

28.4

25

0.95

±0.020

1.15

±0.02

25.4

25

1.00

±0.030

1.20

±0.02

23.3

25

Characteristics

Test Standard

Conclusion

1

Package

Whether Package condition is good(including carton,spool, PE film, Air bubble film).Whether carton's seal is complete

OK

2

Bare Wire Diameter

0.16±0.008MM

0.159-0.164

3

Overall Diameter

0.36±0.020MM

0.359-0.362

4

Conductor Resistance

MAX: 950.1Ω/KM

898.3Ω/KM

5

Breakdown voltage of straight wire

The length of wire 305mm,wind on the copper bar, test condition 1mA/60s5.0KV

OK

6

Elongation

MIN:15%

17.2-18.5%

7

Solder ability

430± 5℃ 1-2.5 Secs

OK

Conclusion

Qualified

TIW Fine Enamelled Copper Wire PVC Insulation Rust Resistant Excellent Durability

TIW Fine Enamelled Copper Wire PVC Insulation Rust Resistant Excellent Durability

TIW Fine Enamelled Copper Wire PVC Insulation Rust Resistant Excellent Durability

TIW Fine Enamelled Copper Wire PVC Insulation Rust Resistant Excellent Durability

TIW Fine Enamelled Copper Wire PVC Insulation Rust Resistant Excellent Durability

TIW Fine Enamelled Copper Wire PVC Insulation Rust Resistant Excellent Durability
