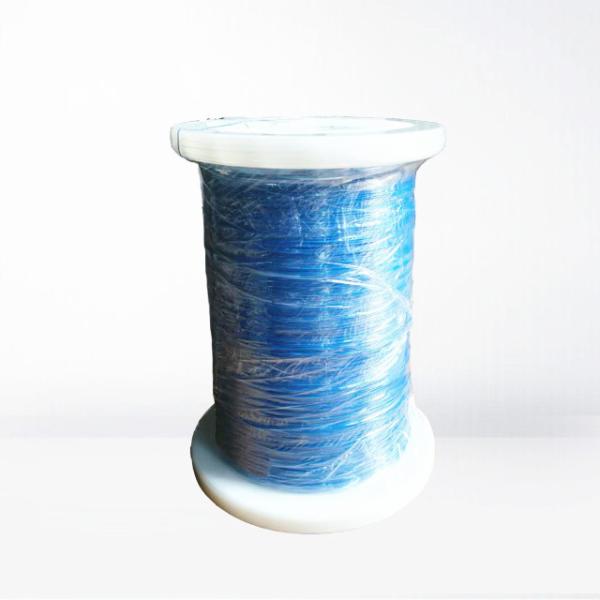

Superior Strength Triple Insulated Magnet Wire 0.16MM PVC Insulation For Electrical Appliance
Superior Strength Triple Insulated Magnet Wire 0.16MM PVC Insulation For Electrical Appliance
Superior Strength Triple Insulated Magnet Wire 0.16MM PVC Insulation For Electrical Appliance
Superior Strength Triple Insulated Magnet Wire 0.16MM PVC Insulation For Electrical Appliance
Specifications
Brand Name :
Rvyuan
Model Number :
TIW -B 0.16mm
Certification :
UL/ROHS/ICE/ISO9001/ISO14001
Place of Origin :
China
MOQ :
20 Kilogram/Kilograms
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
100 Ton/Tons per Month
Delivery Time :
10-15 workding days
Packaging Details :
plastic spools (PT2-PT200), wooden case
Type :
Insulated
Conductor Material :
Copper
Insulation Material: :
PET
Conductor Type :
Solid
Size :
0.16MM
Rated Temperature :
130
Rated Voltage :
1000 Vrms
Solderability :
Directly
Insulation :
PVC Insulation
Description

TIW -B 0.16MM ISO/UL CERTIFICATED TRIPLE INSULATED MAGNET COPPER WIRE

Triple Insulated wire or TIW is wildely used in transformer, our quanlity is similar with Furukawa, even is better at CLASS F. Self solderable makes soldering process much easier. UL system certificated give you perfect quality.

FEATURES AND BENEFITS

1. Greatly reduce the size and weight of transformers.
2. Greatly improve the efficiency of transformer by reducing the distance between coil.
3. Allow to wind directly on the top of enameled wires. Eliminate the interleaved insulation tapes, barriers and insulating sleeves.
4. Shock resistance, Corrosion Resistant
5. Excellent durability, Durable Resistant
6. Superior strength, Reliability
7. Rust resistant, Affordability
8. Low maintenance

APPLICATIONS
-- Transformers
-- Coils
-- Switchgear
-- Solenoid Valves
-- Automobiles
-- Electrical Appliance
-- Industrial Electronics
-- Pumps & Fans Motor'

Superior Strength Triple Insulated Magnet Wire 0.16MM PVC Insulation For Electrical Appliance

SPECIFICATION

Conductor m/m End product m/m Maximum Conductor Resistance at 20 ℃ Minimum Elongation %
Diameter m/m Tolerance m/m Target outside diameter Tolerance m/m
0.15 ±0.008 0.35 ±0.02 1111 15
0.16 ±0.008 0.36 ±0.02 908.8 15
0.17 ±0.008 0.37 ±0.02 853.5 15
0.18 ±0.008 0.38 ±0.02 757 15
0.19 ±0.008 0.39 ±0.02 676.2 15
0.2 ±0.008 0.4 ±0.02 607.6 15
0.21 ±0.008 0.41 ±0.02 549 15
0.22 ±0.008 0.42 ±0.02 498.4 15
0.23 ±0.008 0.43 ±0.02 454.5 15
0.24 ±0.008 0.44 ±0.02 416.2 15
0.25 ±0.008 0.45 ±0.02 382.5 15
0.26 ±0.010 0.46 ±0.02 358.4 15
0.27 ±0.010 0.47 ±0.02 331.4 15
0.28 ±0.010 0.48 ±0.02 307.3 15
0.29 ±0.010 0.49 ±0.02 285.7 20
0.3 ±0.010 0.5 ±0.02 262.9 20
0.32 ±0.010 0.52 ±0.02 230 20
0.35 ±0.010 0.55 ±0.02 191.2 20
0.37 ±0.010 0.57 ±0.02 170.6 20
0.4 ±0.010 0.6 ±0.02 145.3 20
0.45 ±0.010 0.65 ±0.02 114.2 20
0.5 ±0.010 0.7 ±0.02 91.4 20
0.55 ±0.020 0.75 ±0.02 78.2 20
0.6 ±0.020 0.8 ±0.02 65.3 20
0.65 ±0.020 0.85 ±0.02 88.3 20
0.7 ±0.020 0.9 ±0.02 47.2 20
0.75 ±0.020 0.95 ±0.02 41.2 20
0.8 ±0.020 1 ±0.02 36.1 25
0.85 ±0.020 1.05 ±0.02 31.9 25
0.9 ±0.020 1.1 ±0.02 28.4 25
0.95 ±0.020 1.15 ±0.02 25.4 25
1 ±0.030 1.2 ±0.02 23.3 25
