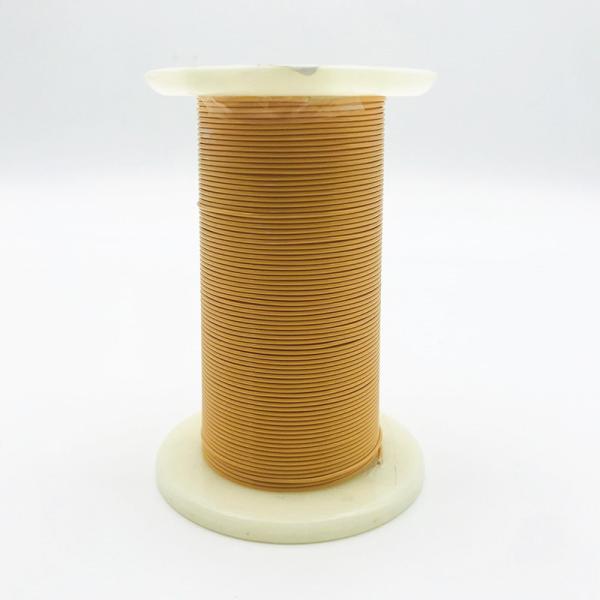

Class F 155 Triple Insulated Wire 0.15 - 1.0 mm TIW Wire TEX Enameled Copper Wire Directly Solderability
Class F 155 Triple Insulated Wire 0.15 - 1.0 mm TIW Wire TEX Enameled Copper Wire Directly Solderability
Class F 155 Triple Insulated Wire 0.15 - 1.0 mm TIW Wire TEX Enameled Copper Wire Directly Solderability
Class F 155 Triple Insulated Wire 0.15 - 1.0 mm TIW Wire TEX Enameled Copper Wire Directly Solderability
Class F 155 Triple Insulated Wire 0.15 - 1.0 mm TIW Wire TEX Enameled Copper Wire Directly Solderability
Class F 155 Triple Insulated Wire 0.15 - 1.0 mm TIW Wire TEX Enameled Copper Wire Directly Solderability
Specifications
Brand Name :
Rvyuan
Model Number :
0.15-1.0mm
Certification :
IEC/NEMA/JIS/RoHS/ISO
Place of Origin :
China
MOQ :
3000 meters
Price :
Negotiation
Payment Terms :
Negotiation
Supply Ability :
Satisfy your demand
Delivery Time :
2-15 workding days
Packaging Details :
Spool with carton
Product Name :
TIW wire
Color :
Nature/Red/Black/Blue/Pink
Size :
0.15-1.0mm
Packing :
Plastic roll then in carton
Rated Temperature :
155
Solderability :
Directly
Conductor :
Copper
Breakdown voltage :
5000v
Description

CLASS F 155 0.15-1.0 MM TRIPLE INSULATED WIRE
We have 19 high-speed production lines with a monthly production capacity of 150 million meters, the largest production scale in China; we have our own insulation material formula and intellectual property rights; our triple insulated wire have passed UL, German VDE and China CQ C authority Certified, and obtained UL insulation system; we have a core competitive engineering and technical team, and continue to provide customers with quality products and services.

NO.
Characteristics
Test Standard
Conclusion
1
Package
Whether Package condition is good(including carton,spool, PE film, Air bubble film).Whether carton's seal is complete
OK
2
Bare Wire Diameter
1.0±0.00MM
0.295-0.301
3
Overall Diameter
1.2±0.030MM
0.493-0.501
4
Conductor Resistance
MAX: 23.30Ω/KM
255.6Ω/KM
5
Breakdown voltage of straight wire
Test condition 1mA/60s5.0KV
OK
8
Elongation
MIN:20%
23.8-26.9%
9
Solder ability
430 5-7 Secs
OK
Conclusion
Qualified

Class F 155 Triple Insulated Wire 0.15 - 1.0 mm TIW Wire TEX Enameled Copper Wire Directly Solderability
