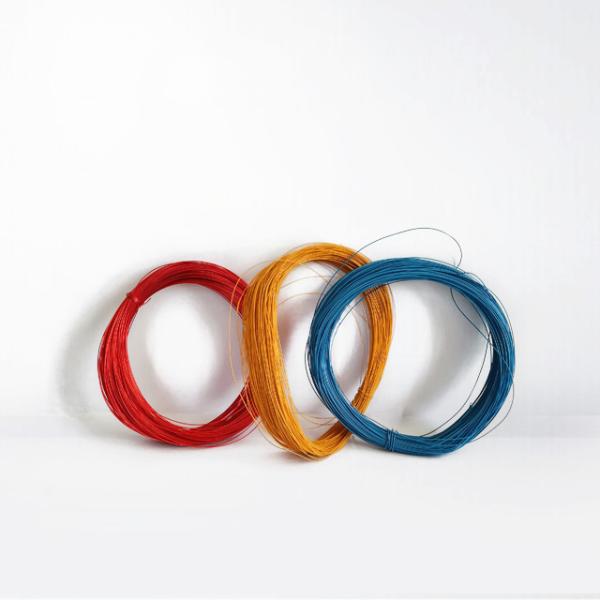

Color :
Red/Pink/Blue/Yellow
Size :
0.35mm
Packing :
Roll
Rated Temperature :
155
Rated Voltage :
1000 Vrms
Solderability :
Directly
Conductor :
Copper
Description

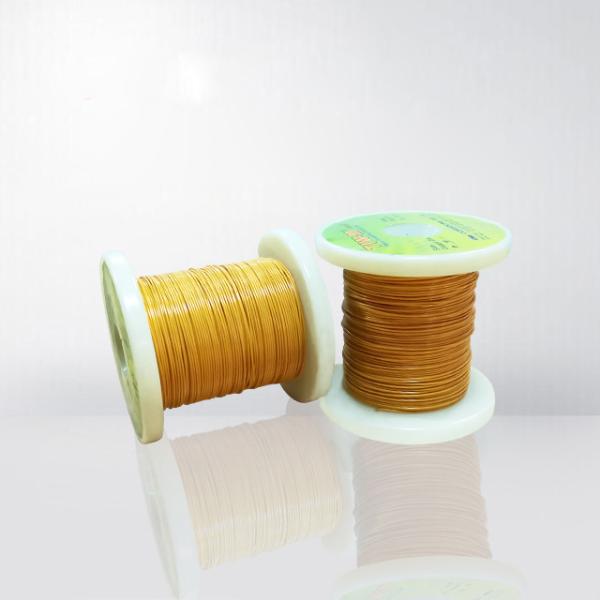

CLASS F 0.35MM TRIPLE INSULATED COPPER WIRE ENAMELED COPPER WIRE FOR WINDING

TIW, a unique product for small transformers. Three layer extruded coatings of high performance polymer resins gives excellent dielectric properties to this type of winding wires. Unlike enamelled wires, three layers of insulation are extruded over the copper conductor by an automated manufacturing process ensure perfect central position of conductor. The conventional enamelled wire winding coils requires insulation between the primary and secondary coils by means of barrier tape or inter layer tape, to isolate primary and secondary windings. Since three layers coating is having very high dielectric strength, it has very less creepage factor. This positive feature of TIW serves to downsize switching transformers, and promises high production efficiency and cost reduction. Depending on the design, the transformer size can be reduced up to 40% and weight up to 60% as compared to transformers made up of enamelled wires.

MINIATURIZE OF SWITCHING TRANSFORMER

Exclusion of 'Creepage Distance' requirement and interleaved insulation bring epochal miniaturization.

EXCELLENT INSULATION QUALITY

Supreme UL grade of insulation:Reinforced Insulation

The most advanced insulation type: Triple extrusion

Electric Strength Test:1.Straight Test:AC 3,000V/1 min above

2.Twisted Teat:AC 6,000V/1 min above

SUITABILITY FOR HIGH FREQUENCY

Suitable for 30kHz above high frequency purpose

Equalized electric quality with extrusion type

Low dielectric constant

Handing/Storage convenience-Superior physical strength and durability for abrasion

IMPROVED PRODFUCTIVITY

Simple production processes: No barrier tape and interleaved insulation tape are required

Solderability: Soldering can be conducted without removal of insulation layer

Class F 0.35mm Triple Insulated Copper Wire Enameled Copper Wire For Winding

Conductor m/m End product m/m Maximum Conductor Resistance at 20 ℃ Minimum Elongation %
Diameter m/m Tolerance m/m Target outside diameter Tolerance m/m
0.15 ±0.008 0.35 ±0.02 1111 15
0.16 ±0.008 0.36 ±0.02 908.8 15
0.17 ±0.008 0.37 ±0.02 853.5 15
0.18 ±0.008 0.38 ±0.02 757 15
0.19 ±0.008 0.39 ±0.02 676.2 15
0.2 ±0.008 0.4 ±0.02 607.6 15
0.21 ±0.008 0.41 ±0.02 549 15
0.22 ±0.008 0.42 ±0.02 498.4 15
0.23 ±0.008 0.43 ±0.02 454.5 15
0.24 ±0.008 0.44 ±0.02 416.2 15
0.25 ±0.008 0.45 ±0.02 382.5 15
0.26 ±0.010 0.46 ±0.02 358.4 15
0.27 ±0.010 0.47 ±0.02 331.4 15
0.28 ±0.010 0.48 ±0.02 307.3 15
0.29 ±0.010 0.49 ±0.02 285.7 20
0.3 ±0.010 0.5 ±0.02 262.9 20
0.32 ±0.010 0.52 ±0.02 230 20
0.35 ±0.010 0.55 ±0.02 191.2 20
0.37 ±0.010 0.57 ±0.02 170.6 20
0.4 ±0.010 0.6 ±0.02 145.3 20
0.45 ±0.010 0.65 ±0.02 114.2 20
0.5 ±0.010 0.7 ±0.02 91.4 20
0.55 ±0.020 0.75 ±0.02 78.2 20
0.6 ±0.020 0.8 ±0.02 65.3 20
0.65 ±0.020 0.85 ±0.02 88.3 20
0.7 ±0.020 0.9 ±0.02 47.2 20
0.75 ±0.020 0.95 ±0.02 41.2 20
0.8 ±0.020 1 ±0.02 36.1 25
0.85 ±0.020 1.05 ±0.02 31.9 25
0.9 ±0.020 1.1 ±0.02 28.4 25
0.95 ±0.020 1.15 ±0.02 25.4 25
1 ±0.030 1.2 ±0.02 23.3 25
