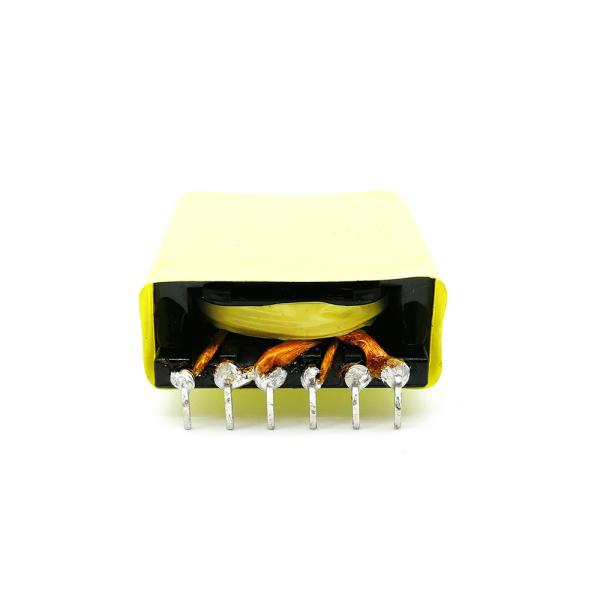

Switching Power Single Phase Transformer Core Type 80W Power Small Size
Switching Power Single Phase Transformer Core Type 80W Power Small Size
Switching Power Single Phase Transformer Core Type 80W Power Small Size
Switching Power Single Phase Transformer Core Type 80W Power Small Size
Switching Power Single Phase Transformer Core Type 80W Power Small Size
Switching Power Single Phase Transformer Core Type 80W Power Small Size
Specifications
Brand Name :
Rvyuan
Model Number :
EQ3514
Certification :
UL/ROHS/ICE/ISO9001/ISO14001
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
L/C, T/T
Supply Ability :
2000000 Piece/Pieces per Month
Delivery Time :
10-15 workding days
Packaging Details :
Carton
Size :
36.5*47.5*15.5cm
Bobbin Shape :
Horizontal
Inductance :
6-4=100uH±10%
Power :
80W
Core material :
MnZn power ferrite core
Resistance :
6-4=80 mohm MAX
Working frequency :
100KHz
Description

220V AC TO 24V DC HIGH FREQUENCY SWITCHING POWER TRANSFORMER ELECTRONIC TRANSFORMER

High voltage transformers are normally used in high voltage labs for testing purpose. This transformer is subjected to transient voltages and surges during their normal operation when the insulation under test breaks down. To withstand these impulse voltages,the insulation of these transformers must be carefully designed. These are usually single phase, core type transformers.

EQ3514
Dimention(mm)
Pin Quantity(pcs)
Pin Array(mm)
Power
36.5*47.5*15.5
6+6
5
80W
Resistance(MAX)
Inductance
Leakage(MAX)
Test Condition
6-4=80mΩMAX
6-4=100uH±10%
6-4=2.0uH
100KHz,1Vrms

Switching Power Single Phase Transformer Core Type 80W Power Small Size
