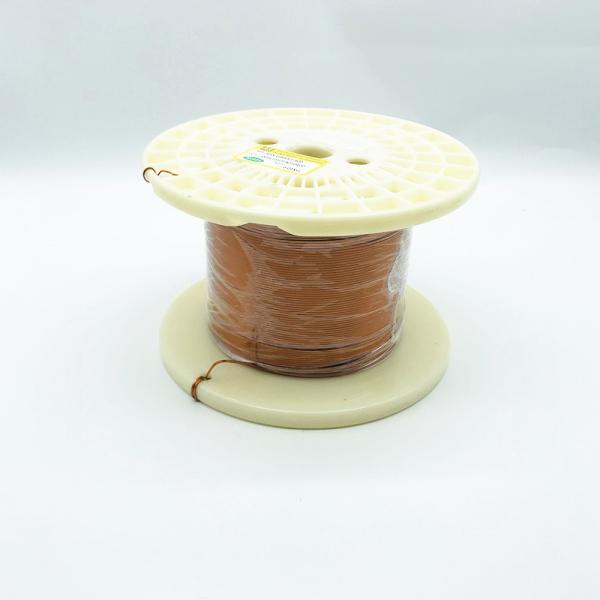

Ei / Aiw 220 2.40mm*0.15mm Enamel Coated Copper Wire For Motor Winding
Ei / Aiw 220 2.40mm*0.15mm Enamel Coated Copper Wire For Motor Winding
Ei / Aiw 220 2.40mm*0.15mm Enamel Coated Copper Wire For Motor Winding
Ei / Aiw 220 2.40mm*0.15mm Enamel Coated Copper Wire For Motor Winding
Ei / Aiw 220 2.40mm*0.15mm Enamel Coated Copper Wire For Motor Winding
Ei / Aiw 220 2.40mm*0.15mm Enamel Coated Copper Wire For Motor Winding
Specifications
Brand Name :
Ruiyuan
Model Number :
2.40mm*0.15mm
Certification :
UL/ISO9001/ISO14001/RoHS/Reach
Place of Origin :
China
MOQ :
10 Kilogram/Kilograms
Price :
Negotiation
Payment Terms :
Negotiation
Supply Ability :
Negotiation
Delivery Time :
2-15 days
Packaging Details :
Carton
Product Name :
Rectangular enameled copper wire
Thermal rating :
220
Insulation Material :
AIW
Width :
2.4mm
Thickness :
0.15mm
Description

EI/AIW 220 2.40mm*0.15mm Rectangular Enameled Copper Wire For Motor Winding

We supply rectangular enameled copper wire, it' widely used in motor. The rectangular enameled copper wire can be customized the flat copper wire to your needs.Thickness range from 0.04mm-1.8mm. width from 0.115mm-7.5mm, class 180 and class 220 with or without self bonding layer are available.

Model:SFT-EI/AIWJ 220 size: 2.4mm*0.15mm
Item
Characteristics
Standard
Test Result
1
Apperance
Smooth Equality
Smooth Equality
2
Conductor Diameter
Width
2.4
±0.006
2.373
Thickness
0.15
±0.009
0.155
3
Thickness Insulation
Width
≥0.020
0.032
Thickness
≥0.030
0.040
4
Overall Diameter
Width
≤2.50
2.405
Thickness
≤0.20
0.195
5
Pinhole
≤3hole/m
0
6
Elongation
≥30 %
45
7
Flexibility and Adherence
No crack
No crack
8
Conductor Resistance (Ω/km at 20℃)
≤52.94
48.28
9
Breakdown Voltage
≥0.7KV
1.5KV
10
Heat shock
No Crack
No Crack

Ei / Aiw 220 2.40mm*0.15mm Enamel Coated Copper Wire For Motor Winding
