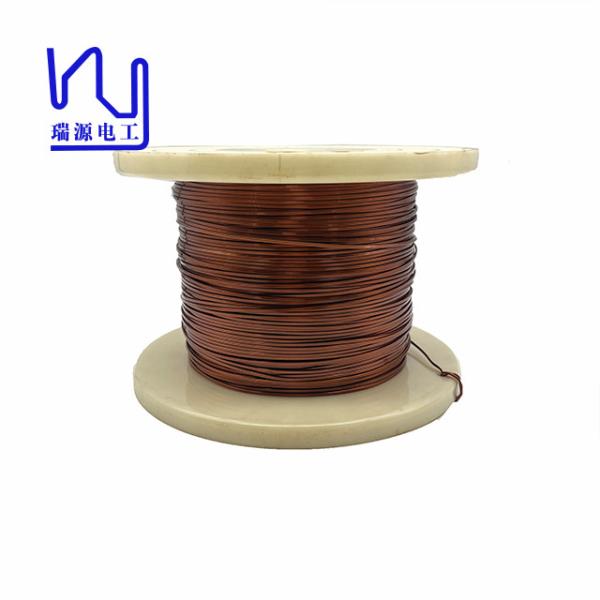

ISO Aiw 1.1x1.8mm 220℃ Rectangular Copper Wire For Audio Transformer
ISO Aiw 1.1x1.8mm 220℃ Rectangular Copper Wire For Audio Transformer
Specifications
Brand Name :
Ruiyuan
Model Number :
1.1x1.8mm
Certification :
UL/ISO9001/ISO14001/RoHS/Reach
Place of Origin :
China
MOQ :
3kg
Price :
Negotiation
Payment Terms :
Negotiation
Supply Ability :
10Ton/week
Delivery Time :
2-15 days
Packaging Details :
Carton
Product Name :
AIW 1.1x1.8mm 220℃ Enameled Flat Rectangular Copper Wire For Audio Transformer
Thermal rating :
220
Insulation Material :
Amide imide
Width :
1.8mm
Thickness :
1.1mm
Conductor material :
Copper
Key word :
AIW 1.1x1.8mm 220℃ Enameled Flat Rectangular Copper Wire For Audio Transformer
Description

AIW 1.1x1.8mm 220℃ Enameled Flat Rectangular Copper Wire For Audio Transformer

1.1x1.8mm Enameled rectangular copper wire is made of oxygen free copper, which are drawn or extruded by the specification mould. It is the baked winding wire with multiple layers of insulating paint after annealing softening treatment.The insulation layer of the wire is polyamide imide, and the temperature resistance grade is 220℃.

Product name

AIW 1.1x1.8mm 220℃ Enameled Flat Rectangular Copper Wire For Audio Transformer

Coating material

AIW

Thermal class

220

Key word

AIW 1.1x1.8mm 220℃ Enameled Flat Rectangular Copper Wire For Audio Transformer

Item Characteristics Standard Test Result
1 Appearance Smooth Equality Smooth Equality
2
 Conductor Diameter
 Width 1.80 ±0.060 1.823
Thickness 1.10 ±0.009 1.087
3
 Thickness of Coating layer
 Width ------ ------
Thickness Min. 0.020 0.051
4
 Overall Diameter
 Width Max. 1.90 1.877
Thickness Max. 1.15 1.138
5 Pinhole Max. 3hole/m 0
6 Elongation Min. 30 % 37%
7 Flexibility and Adherence No crack No crack
8 Conductor Resistance (Ω/km at 20℃) Max. 10.56 9.69
9 Breakdown Voltage Min. 0.7KV 1.30
10 Heat shock No Crack No Crack

ISO Aiw 1.1x1.8mm 220℃ Rectangular Copper Wire For Audio Transformer

ISO Aiw 1.1x1.8mm 220℃ Rectangular Copper Wire For Audio Transformer

ISO Aiw 1.1x1.8mm 220℃ Rectangular Copper Wire For Audio Transformer

ISO Aiw 1.1x1.8mm 220℃ Rectangular Copper Wire For Audio Transformer
