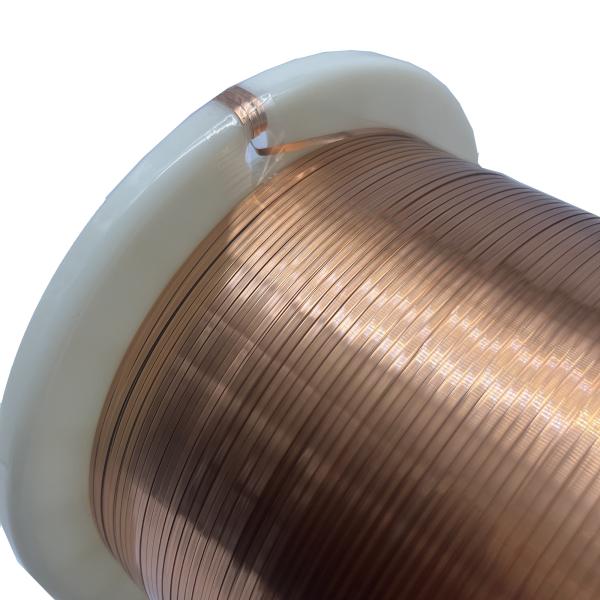

UEW180 Grade 2.0mm*0.15mm Enameled Flat Copper Wire For Motor
UEW180 Grade 2.0mm*0.15mm Enameled Flat Copper Wire For Motor
Specifications
Brand Name :
Ruiyuan
Model Number :
UEW
Certification :
UL/ISO9001/ISO14001/RoHS/Reach
Place of Origin :
China
MOQ :
10kg
Price :
Negotiation
Payment Terms :
Negotiation
Supply Ability :
10Ton/week
Delivery Time :
2-15 days
Packaging Details :
Carton
Product Name :
UEW180 Grade 2.0mm*0.15mm enameled flat copper wire for motor
Thermal rating :
220
Insulation Material :
UEW
Width :
2.00mm
Thickness :
0.15mm
Conductor material :
Copper
Key word :
UEW180 Grade 2.0mm*0.15mm enameled flat copper wire for motor
Description

UEW180 Grade 2.0mm*0.15mm enameled flat copper wire for motor

In the industrial sector, there is an increasing demand for high-quality enameled flat copper wires. This is where UEW enameled flat copper wire, polyurethane rectangular enameled copper wire and solderable flat copper wire come into play.

Designed to meet the specific needs of industrial applications, these wires offer a range of benefits and properties that make them indispensable in a variety of industrial processes.

EST REPORT
Model SFT-UEWH Date 2024-2-24
Size(mm): 0.150 × 2.000 Lot /

Item

 conductor dimension

Unilateral insulation

thickness

 Overall dimension

Breakdown

voltage

 Pinhole Conductor resistance Elongation

soldering

temp

Thermal

shock
Thickness Width Thickness Width Thickness Width
Unit mm mm mm mm mm mm kv Pcs/m Ω/km 20℃ %

410±10℃

No crack

SPEC

 AVE 0.150 2.000 0.025 0.025
Max 0.159 2.060 0.040 0.040 0.200 2.100 3 62.500
Min 0.141 1.940 0.010 0.010 0.700 30
No. 1 0.146 1.999 0.020 0.023 0.185 2.045 0.965

0

58.670

39

Good

Good
No. 2 0.147 2.000 0.019 0.023 0.184 2.046 1.052
No. 3 1.320
No. 4 1.022
No. 5 1.185
No. 6 0.940
No. 7 1.320
No. 8 1.020
No. 9 1.052
No. 10 1.040
Ave 0.147 2.000 0.019 0.023 0.185 2.046 1.092
NO.of reading 2 2 2 2 2 2 10
Min. reading 0.146 1.999 0.019 0.023 0.184 2.045 0.940
Max. reading 0.147 2.000 0.020 0.023 0.185 2.046 1.320
Range 0.001 0.001 0.001 0.000 0.001 0.001 0.380
Result OK OK OK OK OK OK OK OK OK OK OK OK
