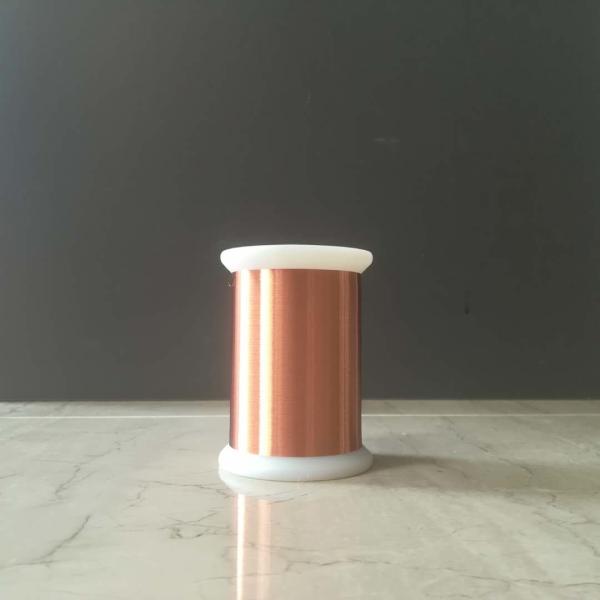

Class 155 0.02mm Super Thin Enameled Copper Wire For Voice Coils
Class 155 0.02mm Super Thin Enameled Copper Wire For Voice Coils
Specifications
Brand Name :
Ruiyuan
Model Number :
0.02mm
Certification :
UL/ISO9001/ISO14001/RoHS/Reach
Place of Origin :
China
MOQ :
1 kg
Price :
Negotiation
Payment Terms :
Negotiation
Supply Ability :
10Ton/week
Delivery Time :
2-15 days
Packaging Details :
Carton
Product Name :
Class 155 0.02mm Super thin enameled copper wire for voice coils
Thermal rating :
155
Insulation Material :
Enamel
Diameter :
0.02mm
Conductor material :
Copper
Key word :
Class 155 0.02mm Super thin enameled copper wire for voice coils
Description

Class 155 0.02mm Super thin enameled copper wire for voice coils

Ultra-thin enamelled copper wire is commonly used in audio equipment and diaphragm drivers in voice coils.

Voice coils are an important component of devices such as speakers and headphones, which produce sound vibrations by generating electric current in a magnetic field.

Ultra-thin enameled copper wire can provide high sensitivity and response speed due to its thin and dense insulation layer, making it one of the ideal materials for voice coils. It has the characteristics of good electrical conductivity, small size, light weight, and high mechanical strength, and can be used to manufacture high-performance voice coil components.

In audio equipment, the application of ultra-thin enameled copper wire helps improve audio accuracy and sensitivity, while also enabling a lighter and more compact design. This material can meet the requirements of audio equipment for high-quality sound and complex vibration drive, so it has been widely used in voice coils.

Characteristics
Technical requests
Test Results
Conclusion
Sample 1
Sample 2
Sample 3
Surface
Good
OK
OK
OK
OK
Bare Wire Diameter
0.020±
0.001
0.020
0.020
0.020
OK
Coating Thickness
min. 0.001mm
0.002
0.002
0.002
OK
Bonding Thickness
min. 0.001mm
0.002
0.002
0.002
OK
Overall Diameter
min. 0.028mm
0.0273
0.0273
0.0273
OK
Conductor Resistance(20℃)
55-57 Ω/m
55.41
55.41
55.41
OK
Elongation
≥ 6 %
11
11
11
OK
Breakdown Voltage
≥ 250 V
min. 380V
OK
Pinhole Test
≤ 8 holes/5m
1
0
1
OK
Solderability
375± 5℃ 2 Sec Smooth
OK
OK
OK
OK
Bonding Strength
min. 3g
5g
OK
Key word
Class 155 0.02mm Super thin enameled copper wire for voice coils

Product name

 Class 155 0.02mm Super thin enameled copper wire for voice coils
