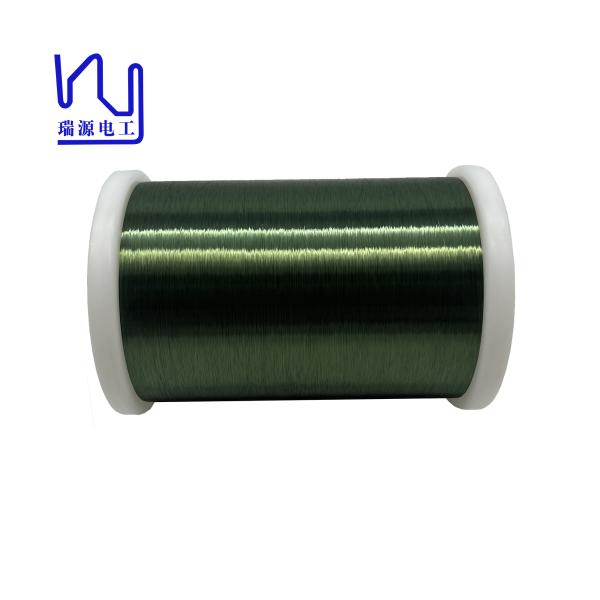

2uewf 46 Awg Copper Enameled Winding Wire 0.04mm Super Thin Colored
2uewf 46 Awg Copper Enameled Winding Wire 0.04mm Super Thin Colored
Specifications
Brand Name :
Ruiyuan
Model Number :
0.04mm
Certification :
UL/ISO9001/ISO14001/RoHS/Reach
Place of Origin :
China
MOQ :
10kg
Price :
Negotiation
Payment Terms :
Negotiation
Supply Ability :
10Ton/week
Delivery Time :
2-15 days
Packaging Details :
Carton
Product Name :
2UEWF 46 AWG 0.04mm Super Thin Colored Copper Enameled Winding Wire
Thermal rating :
155
Insulation Material :
Polyurethane
Diameter :
0.04mm
Conductor material :
Copper
Key word :
2UEWF 46 AWG 0.04mm Super Thin Colored Copper Enameled Winding Wire
Type :
2UEWF 46 AWG 0.04mm Super Thin Colored Copper Enameled Winding Wire
Description

2UEWF 46 AWG 0.04mm Super Thin Colored Copper Enameled Winding Wire

Advantages:

In the field of information transmission, green enameled copper wire is widely used in the internal connection and signal transmission of various electronic equipment. Its unique green appearance makes identification easier and clearer during equipment maintenance and troubleshooting. Compared with other ordinary wires, the green enameled copper wire looks distinctive, and users can easily distinguish it from other wires, thereby improving work efficiency. The paint film of this enameled copper wire is made of polyurethane, which gives it excellent solderability.

Test Items
 Requirements
 Test Data
1st Sample 2nd Sample 3rd Sample
Appearance Smooth & Clean OK OK OK
Conductor Diameter 0.040mm ± 0.001mm 0.0400 0.0400 0.0400
Thickness of Insulation ≥ 0.006 mm 0.0090 0.0100 0.0090
Overall Diameter ≤ 0.052 mm 0.0490 0.0500 0.0490
DC Resistance ≤ 14.433 Ω/m 13.799 13.793 13.785
Elongation ≥ 11% 18 20 19
Breakdown Voltage ≥325 V 989 1302 1176
Pin Hole ≤ 5 faults/5m 0 0 0
Adherence No cracks visible OK OK OK
Cut-through 230℃ 2min No breakdown OK OK OK
Heat Shock 200±5℃/30min No cracks OK OK OK
Solderability 390± 5℃ 2 Sec No slags OK OK OK

Name

2UEWF 46 AWG 0.04mm Super Thin Colored Copper Enameled Winding Wire

Key word

2UEWF 46 AWG 0.04mm Super Thin Colored Copper Enameled Winding Wire

Insulationh

Enamel

Thermal rating

155

Diameter of the enameled copper wire

 0.04mm

2uewf 46 Awg Copper Enameled Winding Wire 0.04mm Super Thin Colored
