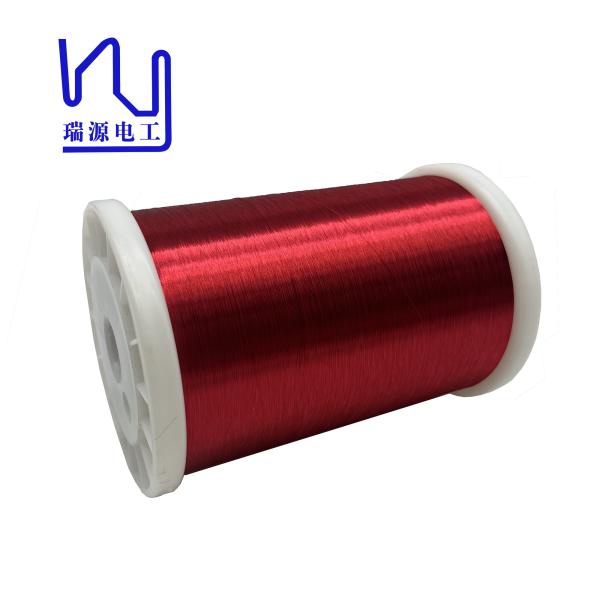

0.05mm Insulated Copper Winding Wire Polyurethane Red Color Enameled
0.05mm Insulated Copper Winding Wire Polyurethane Red Color Enameled
Specifications
Brand Name :
Ruiyuan
Model Number :
0.05mm
Certification :
UL/ISO9001/ISO14001/RoHS/Reach
Place of Origin :
China
MOQ :
10kg
Price :
Negotiation
Payment Terms :
Negotiation
Supply Ability :
10Ton/week
Delivery Time :
2-15 days
Packaging Details :
Carton
Product Name :
0.05mm Polyurethane Red Color Enameled Copper Winding Wire
Thermal rating :
155
Insulation Material :
Polyurethane
Diameter :
0.05mm
Conductor material :
Copper
Key word :
0.05mm Polyurethane Red Color Enameled Copper Winding Wire
Type :
0.05mm Polyurethane Red Color Enameled Copper Winding Wire
Description

0.05mm Polyurethane Red Color Enameled Copper Winding Wire

We offer different types of enameled copper wires including self-adhesive, hot air self-adhesive and solvent self-adhesive. Self-adhesive enameled copper wire has good stickiness and can be fixed and connected easily and quickly. Hot air self-adhesive enameled copper wire can bond itself after heating and is suitable for various repair and connection operations. Solvent self-adhesive enameled copper wire uses solvent dissolution and solidification to provide reliable connection effects.

Test Items

Requirements


 Test Data
1st Sample 2nd Sample 3rd Sample
Appearance Smooth & Clean OK OK OK
Conductor Diameter 0.05mm ± 0.002mm 0.050 0.050 0.050
Thickness of Insulation ≥0.005mm 0.0080 0.0080 0.0080
Overall Diameter ≤ 0.006 mm 0.058 0.058 0.058
DC Resistance ≤ 9.528 Ω/m 8.753 8.713 8.723
Elongation ≥ 12 % 20 20 21
Breakdown Voltage ≥275V 863 747 832
Pin Hole ≤ 8 faults/5m 0 0 0
Adherence No cracks visible OK OK OK
Cut-through 230℃ 2min No breakdown OK OK OK
Heat Shock 200±5℃/30min No cracks OK OK OK
Solderability 390± 5℃ 2 Sec No slags OK OK OK
Insulation Continuity / 0 0 0

Name

0.05mm Polyurethane Red Color Enameled Copper Winding Wire

Key word

0.05mm Polyurethane Red Color Enameled Copper Winding Wire

Insulationh

Enamel

Thermal rating

155

Diameter of the enameled copper wire

 0.05mm

0.05mm Insulated Copper Winding Wire Polyurethane Red Color Enameled
