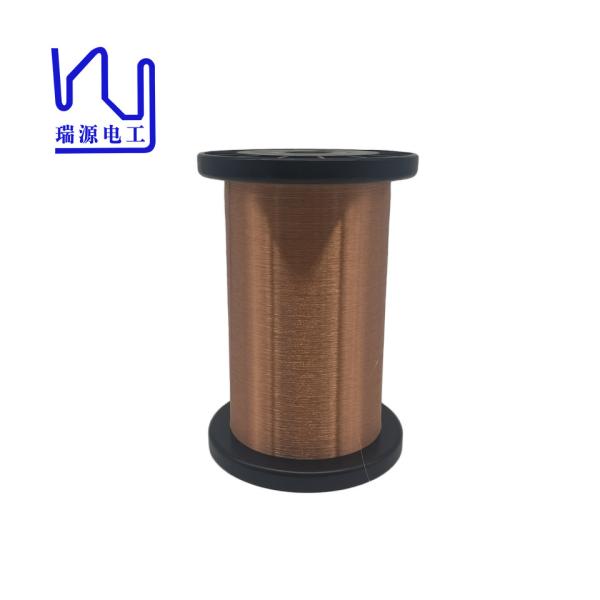

2UEW-F 155 Ultra Fine 0.03mm Enameled Copper Wire Magnet Wire For Earphones Windings
2UEW-F 155 Ultra Fine 0.03mm Enameled Copper Wire Magnet Wire For Earphones Windings
Specifications
Brand Name :
Ruiyuan
Model Number :
0.03mm
Certification :
UL/ISO9001/ISO14001/RoHS/Reach
Place of Origin :
China
MOQ :
10kg
Price :
Negotiation
Payment Terms :
Negotiation
Supply Ability :
10Ton/week
Delivery Time :
2-15 days
Packaging Details :
Carton
Product Name :
2UEW-F 155 Ultra fine 0.03mm Enameled Copper Wire Magnet Wire For Earphones Windings
Thermal rating :
155
Insulation Material :
Polyurethane
Diameter :
0.03mm
Conductor material :
Copper
Key word :
2UEW-F 155 Ultra fine 0.03mm Enameled Copper Wire Magnet Wire For Earphones Windings
Type :
2UEW-F 155 Ultra fine 0.03mm Enameled Copper Wire Magnet Wire For Earphones Windings
Description

2UEW-F 155 Ultra fine 0.03mm Enameled Copper Wire Magnet Wire For Earphones Windings

One of the outstanding features of this ultra-fine enameled wire is its extremely small diameter.

At only 0.03 mm thick, it is one of the thinnest wires on the market, making it ideal for applications where space is limited. This type of wire is particularly suitable for use in small devices such as watch coils, where accuracy and reliability are critical. The ultra-fine diameter ensures that the wire can be wound tightly and efficiently, maximizing the device's performance while minimizing its size.

Characteristics

Technical requests

 Test Results
Sample 1 Sample 2
Bare Wire Diameter 0.030±0.001 0.030 0.030
Coating Thickness ≥ 0.0025 mm 0.0035 0.0035
Overall Diameter ≤ 0.039 mm 0.037 0.037
Conductor Resistance ≤ 26.569Ω/m 23.745 23.639
Elongation ≥ 10 % 15.4 14.7
Breakdown Voltage ≥ 275V 1350 1298
Pinhole Test ≤ 2 holes/5m 0 0
Continuity ≤ 24 holes/20m 0 0
Adherence no crack visible OK
Cut-through 200℃ 2minsno breakdown OK
Heat Shock 175±5℃/30minno crack OK
Solderability 390±5℃ 2second no slags OK
