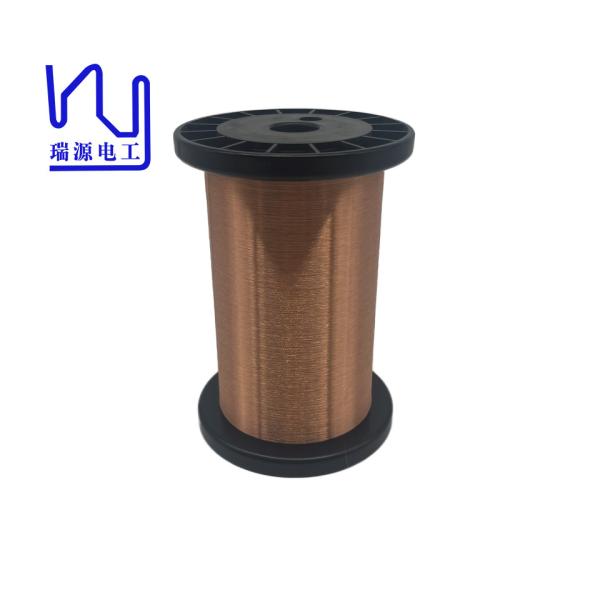

Custom Enamelled Copper Wire Solderable Winding Wire For Electronic Products
Custom Enamelled Copper Wire Solderable Winding Wire For Electronic Products
Specifications
Brand Name :
Ruiyuan
Model Number :
0.03mm
Certification :
UL/ISO9001/ISO14001/RoHS/Reach
Place of Origin :
China
MOQ :
10kg
Price :
Negotiation
Payment Terms :
Negotiation
Supply Ability :
10Ton/week
Delivery Time :
2-15 days
Packaging Details :
Carton
Product Name :
Custom Enamelled Copper Wire Solderable Winding Wire For Electronic Products
Thermal rating :
155
Insulation Material :
Polyurethane
Diameter :
0.03mm
Conductor material :
Copper
Key word :
Custom Enamelled Copper Wire Solderable Winding Wire For Electronic Products
Type :
Custom Enamelled Copper Wire Solderable Winding Wire For Electronic Products
Description

Custom Enamelled Copper Wire Solderable Winding Wire For Electronic Products

The polyurethane enamel coating on this wire is another key feature that sets it apart. This coating provides excellent insulation, ensuring the wire can withstand high temperatures without degrading.

With a standard temperature rating of 155 degrees Celsius and an optional upgrade to 180 degrees Celsius, the wire operates reliably in even the most demanding conditions. This makes it an excellent choice for applications such as headphone cables and tablets where durability and performance are critical.

Characteristics

Technical requests

 Test Results
Sample 1 Sample 2
Bare Wire Diameter 0.030±0.001 0.030 0.030
Coating Thickness ≥ 0.0025 mm 0.0035 0.0035
Overall Diameter ≤ 0.039 mm 0.037 0.037
Conductor Resistance ≤ 26.569Ω/m 23.745 23.639
Elongation ≥ 10 % 15.4 14.7
Breakdown Voltage ≥ 275V 1350 1298
Pinhole Test ≤ 2 holes/5m 0 0
Continuity ≤ 24 holes/20m 0 0
Adherence no crack visible OK
Cut-through 200℃ 2minsno breakdown OK
Heat Shock 175±5℃/30minno crack OK
Solderability 390±5℃ 2second no slags OK
