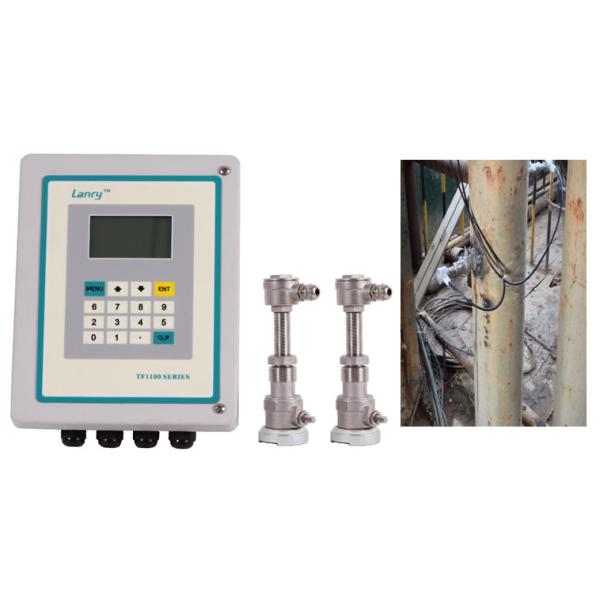

TF1100-DI Insertion Transit Time Ultrasonic Flow Meter For DN65-6000 Pipes
TF1100-DI Insertion Transit Time Ultrasonic Flow Meter For DN65-6000 Pipes
Specifications
Brand Name :
Lanry
Model Number :
TF1100-DI
Certification :
ISO9000, CE, CPA,CMC
Place of Origin :
Shanghai, China (Mainland)
MOQ :
1 Unit/Units
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000 Unit/Units per
Packaging Details :
packing: 1unit/carton
Measurement principle :
Ultrasonic transit-time difference coorelation principle
Resoulution :
0.25mm/s
Pipe diameter :
DN20-DN6000
Response time :
0.5s
Sensitivity :
0.003m/s
Description
Insertion Dual Channels Transit Time Liquid Ultrasonic Flow Meter-Product Description
Transit Time Insertion Ultrasonic Flow meter TF1100-DI provides abundant capabilities for accurate liquid flow measurement from outside of a pipe. It utilizes state-of-the-art technologies on ultrasonic transmission /receiving, digital signal processing and transit-time measurement. The proprietary signal quality tracking and self-adapting technologies allow system to optimally adapt to different pipe materials automatically. Due to hot-tapped mounting of insertion transducers, there is no ultrasonic compound and coupling problem; Even though the transducers are inserted into pipe wall, they do not intrude into the flow, thus, do not generate disturbance or pressure drop to the flow. The insertion (wetted) type has the advantage of long-term stability and better accuracy.
Insertion Dual Channels Transit Time Liquid Ultrasonic Flow Meter-Features:
  1. For commonly used pipe materials and diameters from 65mm to over 6.0m.
  2. The heart measurement function by configuring with paired temperature sensors.
  3. Data logger function for insertion ultrasonic flow meter.
  4. High temp. Insertion transducers.
  5. Data logger function for insertion ultrasonic flow meter.
  6. Wide bi-directional flow range of 0.01 m/s to 15 m/s.

Insertion Dual Channels Transit Time Liquid Ultrasonic Flow Meter-Application
  1. Chemical industry -chlorine, alcohol, acids, .thermal oils.etc
  2. Refrigeration and air conditioning systems
  3. Water and waste water industry - hot water, cooling water, potable water, sea water etc.)
  4. Petrochemical industry
  5. Food , beverage and pharmaceutical industry

Specifications:Transmitter

Measurement principle Ultrasonic transit-time difference correlation principle
Resolution 0.1mm/s
Repeatability 0.15% of reading
Accuracy ±0.5%
Response time 0.5s
Sensitivity 0.001m/s
Damping of displayed value 0-99s(selectable by user)
Flow velocity range 0.01 to 12 m/s, bi-directional
Liquid Types Supported both clean and somewhat dirty liquids with turbidity <10000 ppm
Power Supply AC: 85-265V DC: 24V/500mA
Enclosure type Wall-mounted
Degree of protection IP66 according to EN60529
Operating temperature -20℃ to +60℃
Housing material Fiberglass
Display 3.5'' color LCD display, multi-line
Units User Configured (English and Metric)
Rate Rate and Velocity Display
Totalized gallons, ft³, barrels, lbs, liters, m³,kg
Thermal energy unit GJ,KWh can be optional
Communication 4~20mA(accuracy 0.1%), Relay, RS232, RS485 (Modbus),Logged data
Weight 2.4kg

Specifications:Transducer

Degree of protection IP67 or IP68 according to EN60529
Suited Liquid Temperature -35℃~150℃
Transducer Size Type S Φ58*199mm
Pipe diameter range DN65-6000
Material of transducer Stainless Steel
Cable Length Std: 10m
Temperature Sensor Pt1000, 0 to 200℃, Clamp-on and Insertion type Accuracy: ±0.1%

Packing & Delivery

Insertion flow meters liquid measurement TF1100-EI wall mounted transit time type

With years of export experience along with excellent quality, advanced services and competitive prices, Lanry has won numerous customers' trust and support. With years of export experience along with excellent quality, advanced services and competitive prices, Lanry has won numerous customers' trust and support.
TF1100-DI Insertion Transit Time Ultrasonic Flow Meter For DN65-6000 PipesTF1100-DI Insertion Transit Time Ultrasonic Flow Meter For DN65-6000 PipesTF1100-DI Insertion Transit Time Ultrasonic Flow Meter For DN65-6000 Pipes

Delivery

Insertion flow meters liquid measurement TF1100-EI wall mounted transit time type

Standard meter: 3-7 days

Special meter: pls contact us

Express, by air, by sea can be optional.
