Portable flow meter for open channel area speed ultrasonic flow meter
Portable flow meter for open channel area speed ultrasonic flow meter
Portable flow meter for open channel area speed ultrasonic flow meter
Portable flow meter for open channel area speed ultrasonic flow meter
Portable flow meter for open channel area speed ultrasonic flow meter
Portable flow meter for open channel area speed ultrasonic flow meter
Portable flow meter for open channel area speed ultrasonic flow meter
Portable flow meter for open channel area speed ultrasonic flow meter
Portable flow meter for open channel area speed ultrasonic flow meter
Portable flow meter for open channel area speed ultrasonic flow meter
Specifications
Brand Name :
Lanry
Model Number :
DOF6000-P
Certification :
CE
Place of Origin :
Shanghai,China(mainland)
MOQ :
1 piece
Price :
To be negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1000 pieces per week
Delivery Time :
7-10 days after payment
Packaging Details :
1 piece in a carton
Power supply :
50 hours battery
Degree of protection :
IP68
Enclosure type :
ABS
Operating temperature :
-20℃~+60℃
Outputs :
4-20mA,RS485, data logger,GPRS(optional)
Size :
270*215*175mm
Data logger :
16GB
Application range :
Pipe:300-6000mm; channel:200-6000mm
Weight :
3kg
Description
Product Description

DOF6000-W Wall-mounted Open Channel Ultrasonic Flow Meter

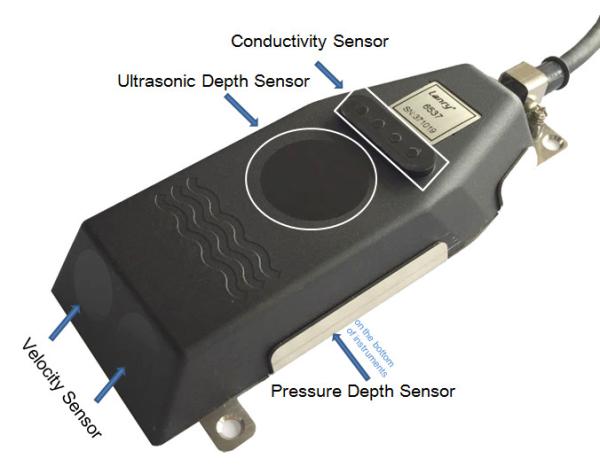

The DOF6000 series flowmeter consists of Flow calculator and the Ultraflow QSD 6537 Sensor.

The Ultraflow QSD 6537 Sensor is used to measure water velocity, depth, and conductivity of water flowing in rivers, streams, open channels and pipes. When used with a companion Lanry DOF6000 Calculator, flow rate and total flow can also be calculated.

The flow calculator can calculate the cross-sectional area of partially filled pipe, open channel stream or river, for stream or river, with up to 20 coordinate points describing the river’s shape of cross section. It is suitable for various applications.

 Portable flow meter for open channel area speed ultrasonic flow meter
Doppler Open Channel Flow Meter Features

u 20 coordinate points to describe cross section of the river’s shape.

u One instrument can measure the velocity, depth and conductivity simultaneously.

u Velocity Range: 0.02mm/s to 12m/s bi-directional, accuracy is 1%.

u Depth Range: 0 to 10m.

u Measure velocity in both forward flow and back flow.

u Depth is measured by both the pressure sensor and ultrasonic level sensor principles.

u With barometric pressure compensation function.

u IP68 Epoxy-sealed body design, designed for under water installation.

u RS485/MODBUS output, can connect to computer directly.

Application Of Open Channel Flow Meter Features

Specification Of Open Channel Flow Meter

Sensor:

Velocity: Velocity range: 20mm/sec to 12 m/sec. Bidirectional velocity capability.
Velocity accuracy: ±1% measured velocity
Velocity resolution: 1mm/s
Depth
(Ultrasonic):		 Range: 20mm to 5000mm (5m)
Accuracy: ± 1% of measured
Resolution: 1 mm
Depth
(Pressure):		 Range: 0mm to 10000mm (10m)
Accuracy: ± 1% of measured
Resolution: 1 mm
Temperature: Range: 0°C to 60°C
Accuracy: ±0.5°C
Resolution: 0.1°C
Electrical Conductivity (EC): Range: 0 to 200,000 µS/cm, Typically ± 1% of measurement
Resolution: ±1 µS/cm
recorded as a 16-bit value (0 to 65,535 µS/cm) or a 32-bit value (0 to 262,143 µS/cm)
Output: SDI-12: SDI-12 v1.3, Max. cable 50m
RS485: Modbus RTU, Max. cable 500m
Environmental: Operating temperature: 0℃ ~+60℃ water temperature
Storage temperature: -20℃ ~+60℃
IP class: IP68

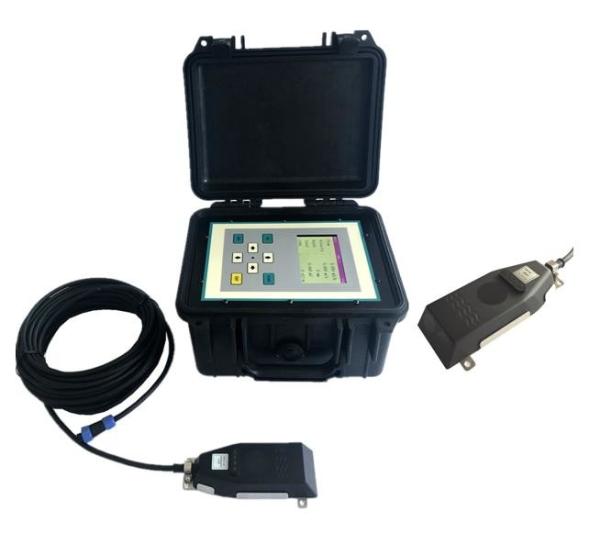

Calculator:

Type: Portable
Power supply: Calculator:85-265VAC (Charging battery)
IP class: Calculator: IP66
Operating temperature: 0℃ ~+60℃
Output: Pulse,4-20mA(Flow & Depth),RS485/Modbus, Datalogger, GPRS
Size: 270L×215W×175H (mm)
Application: Partially Filled Pipe: 150-6000mm; Channel: width >200mm

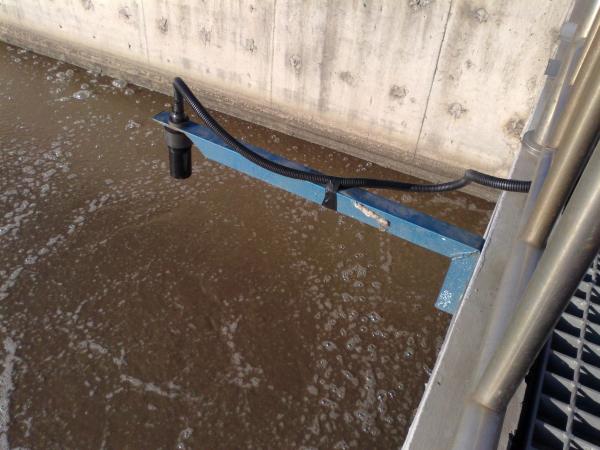

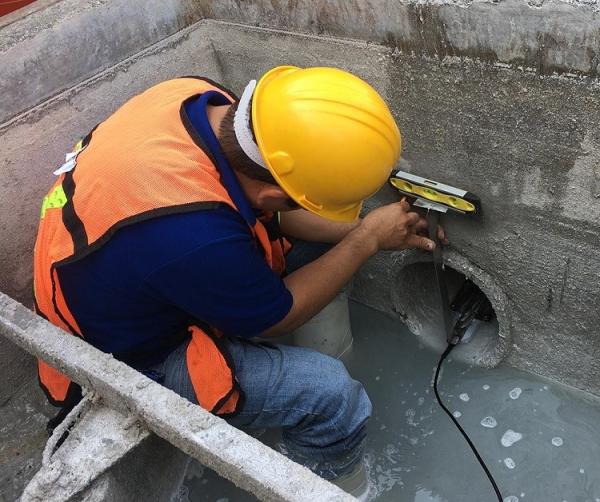

Installation Of Open Channel Flow Meter

Portable flow meter for open channel area speed ultrasonic flow meter Portable flow meter for open channel area speed ultrasonic flow meter

Portable flow meter for open channel area speed ultrasonic flow meter

Certifications

Portable flow meter for open channel area speed ultrasonic flow meter

Delivery by Express

Smart oil level gauge Standard meter: 3-7 days

Special meter: pls contact us

Express, by air, by sea canbe optional.
