Pipe Ultrasonic Thickness Gauge
Pipe Ultrasonic Thickness Gauge
Pipe Ultrasonic Thickness Gauge
Pipe Ultrasonic Thickness Gauge
Pipe Ultrasonic Thickness Gauge
Pipe Ultrasonic Thickness Gauge
Pipe Ultrasonic Thickness Gauge
Pipe Ultrasonic Thickness Gauge
Specifications
Place of Origin :
Shanghai, China (Mainland)
Brand Name :
LANRY
Model Number :
GM130
Product name :
pipe thickness gauge
Measure range :
1.00mm to 300.0mm(Steel)
Resolution :
0.01mm(1.00 to 99.99mm)&0.1mm(100 to 300mm)
Accuracy :
±(1%H+0.1mm)
Power supply :
1.5V AAA*3PCS
Operation current :
≤35mA(with back light on)
Weight :
223g
Size :
72*29*146mm
Supply Ability :
5000 Unit/Units per Week Pipe Thickness Gauge
Packaging Details :
In carton, 32*25*9mm,2.5kg
Port :
Shanghai
MOQ :
1 Piece/Pieces
Price :
$20.00 - $240.00 / Pieces
Description
Product Description

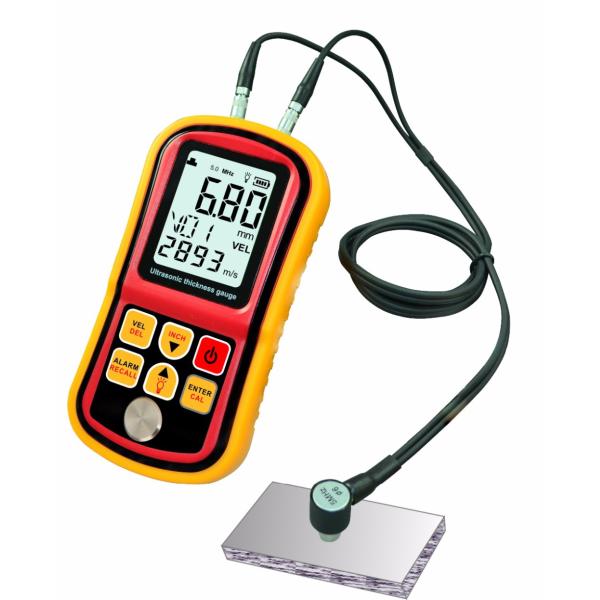

Pipe Ultrasonic Thickness Gauge

GM130 pipe thickness gauge is an intelligent handheld product, which adopts ultrasonic measuring principle, and is controlled by micro processor, provides quick and precise measurement of thickness for most of industrial material. This unit is widely used in various precise measurement for different hardware/parts in industrial realm; one of its important application is to monitor the level of thickness-decreasing during operation of various and pressure container. Diffusely applied in manufacture fields, metal processing, and commercial inspection.
Features
1. Auto calibration to assure the accuracy
2. Sound velocity measurement: with a given thickness to measure the sound velocity to improve accuracy
3. Preset 12 sound velocities for different material
4. Coupling status indication
5. 12 thickness measurement data store and recall
6. Thickness alarm setup
7. Backlight display
8. Low battery indication
9. Auto power off
10. Metric/Imperial selection
Specification


. Measuring range: 1.00 to 300.0mm(steel)
. Accuracy: (1%H+0.1mm)
H denotes the measured thickness
. Working frequency: 5MHz
. Resolution:0.01mm(1.00 to 99.99mm)
0.1mm(100 to 300mm)
. Minimum limit for tube measuring steel :
15*2.0mm( 6mm transducer)
20*3.0mm( 10mm transducer)
. Sound velocity range:1000 to 9999m/s
Thickness 20mm, accuracy of velocity: 1mm/H 100%
Thickness 20mm , accuracy of velocity: 5%
. Operating environment :
Operation temperature: 0 to 40
Temperature of workpiece: < 6 0
Relative Humidity: <90%
Do not apply in violent vibration / erosive material
Avoid impact and humidity
. Power supply:1.5V AAA * 3 PCS
. Operation current: 35mA (with back light on)
. Size: 72*29*146mm
. Weight:223g

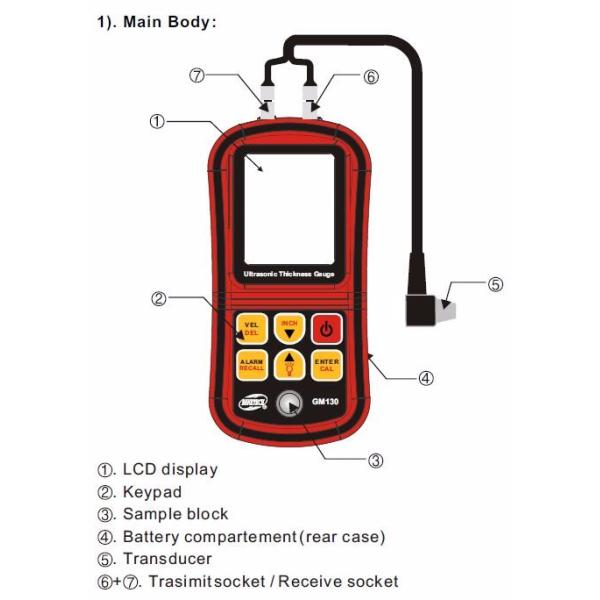

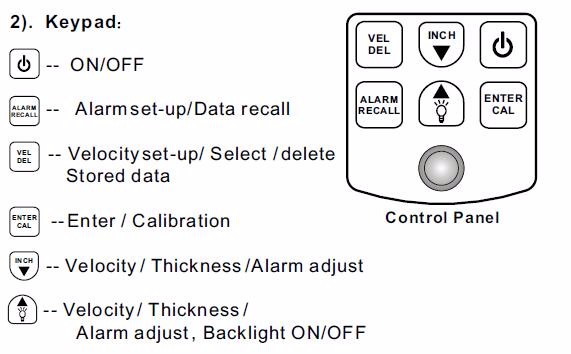

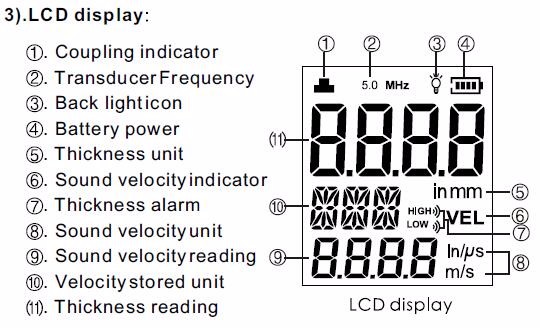

Diagram of The Unit
Pipe Ultrasonic Thickness Gauge
Pipe Ultrasonic Thickness Gauge
Pipe Ultrasonic Thickness Gauge
Factory Equipment
Pipe Ultrasonic Thickness Gauge
Customer Visiting
Pipe Ultrasonic Thickness Gauge
Certificate
Pipe Ultrasonic Thickness Gauge
Packing & Delivery

Packing

With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.

Pipe Ultrasonic Thickness Gauge
Pipe Ultrasonic Thickness Gauge
Pipe Ultrasonic Thickness Gauge
Pipe Ultrasonic Thickness Gauge

Delivery

Pipe Thickness Gauge Standard meter: 3-7 days

Special meter: pls contact us

Express, by air, by sea can be optional.

Pipe Ultrasonic Thickness Gauge
