The New Design Product Portable Ultrasonic Thickness Gauge
The New Design Product Portable Ultrasonic Thickness Gauge
The New Design Product Portable Ultrasonic Thickness Gauge
The New Design Product Portable Ultrasonic Thickness Gauge
The New Design Product Portable Ultrasonic Thickness Gauge
The New Design Product Portable Ultrasonic Thickness Gauge
The New Design Product Portable Ultrasonic Thickness Gauge
The New Design Product Portable Ultrasonic Thickness Gauge
The New Design Product Portable Ultrasonic Thickness Gauge
The New Design Product Portable Ultrasonic Thickness Gauge
The New Design Product Portable Ultrasonic Thickness Gauge
The New Design Product Portable Ultrasonic Thickness Gauge
Specifications
Place of Origin :
Shanghai, China (Mainland)
Brand Name :
LANRY
Model Number :
TG-MT200
Product name :
The New Design Product Portable Ultrasonic Thickness Gauge
Measure range :
0.75mm to 300mm(Steel)
Resolution :
0.1/0.01mm(selectable).
Work mode :
Single point mode and Scan mode.
Accuracy :
±(0.5%Thickness+0.04)mm
Units :
Metric/English unit selectable.
Supply Ability :
5000 Unit/Units per Week The New Design Product Portable Ultrasonic Thickness Gauge
Packaging Details :
32*25*9mm,2.5kg
Port :
Shanghai
MOQ :
1 Piece/Pieces
Price :
$45.00 - $1,270.00 / Pieces
Description
Product Description
The New Design Product Portable Ultrasonic Thickness Gauge

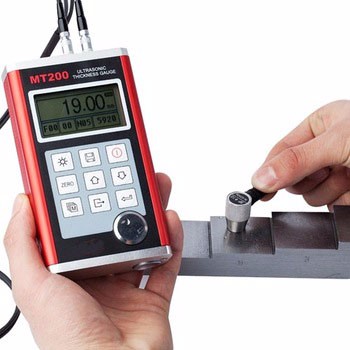

TG-MT200 The New Design Product Portable Ultrasonic Thickness Gauge is a digital ultrasonic thickness gauge. Based on the same operating principles as SONAR, the MT200 is capable of measuring the thickness of various materials with accuracy as high as 0.01 millimeters, or 0.001inches. It is suitable for a variety of metallic and non-metallic materials.
Features
The New Design Product Portable Ultrasonic Thickness Gauge
1. Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials.
2.Four transducer models are available for special application, including for coarse grain material and high temperature applications.
3.Probe-Zero function, Sound-Velocity-Calibration function
4.Two-Point Calibration function.
5.Two work modes: Single point mode and Scan mode.
6.Coupling status indicator showing the coupling status.
7.Battery information indicates the rest capacity of the battery.
8.Auto sleep and auto power off function to conserve battery life.
9.Optional software to process the memory data on the PC.
10.Optional thermal mini-printer to print the measured data via RS232 port.
Specification

The New Design Product Portable Ultrasonic Thickness Gauge

1) Display:128×64 dot matrix LCD with EL backlight.
2) Measuring Range:0.75~300mm (in Steel).
3) Sound Velocity Range: 1000~9999 m/s.
4) Resolution:0.1/0.01mm(selectable).
5) Accuracy: ±(0.5%Thickness+0.04)mm
6) Units: Metric/English unit selectable.
7) Four measurements readings per second for single point measurement, and ten per second for Scan Mode.
8) Memory for 20 files (up to 99 values for each file) of stored values.
9) Upper and lower limit can be pre-set. It will alarm automatically when the result value exceeding the limit.
10) Power Supply:Two "AA" size, 1.5 volt alkaline batteries. 100 hours typical operating time(EL backlight off).
11) Communication:RS232 serial port.
12) Case:Extruded aluminum body suitable for use under poor working conditions.

13) Outline dimensions:132H X 76.2W mm.
14) Weight:345g

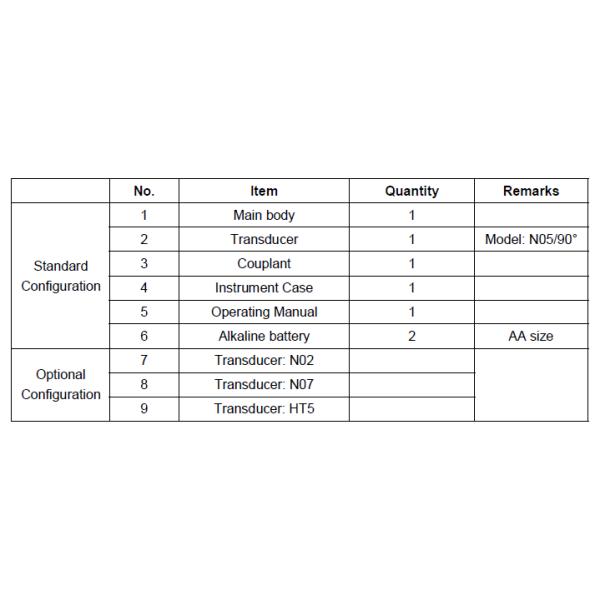

Configuration
The New Design Product Portable Ultrasonic Thickness Gauge

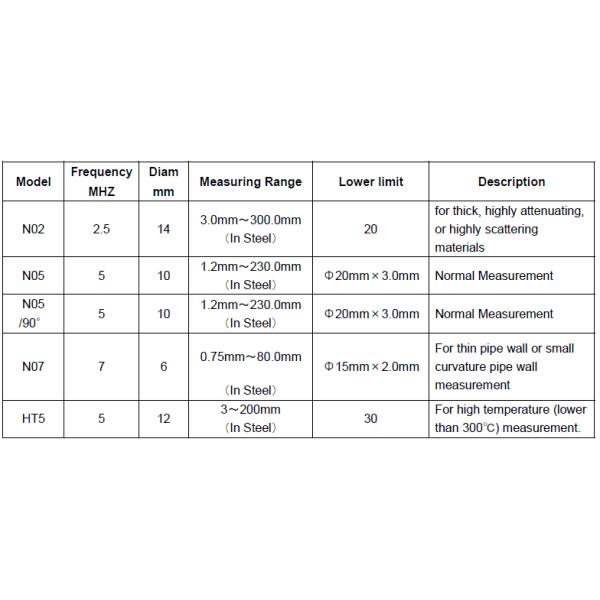

Appendix A: Transducer Selection

The New Design Product Portable Ultrasonic Thickness Gauge

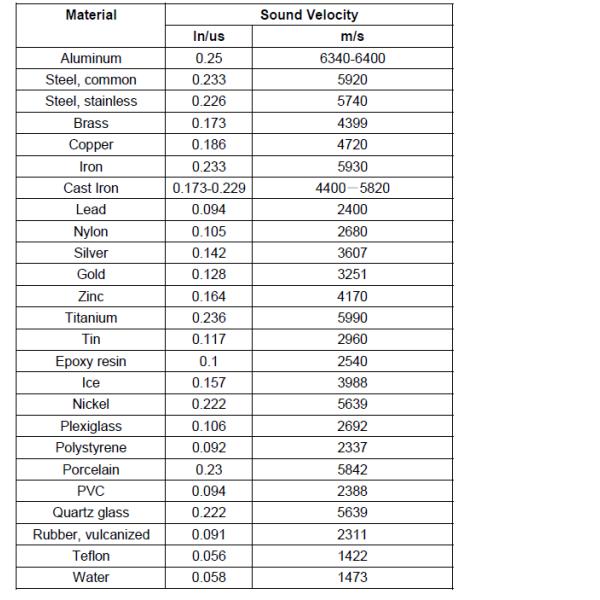

Appendix B: Sound Velocities

The New Design Product Portable Ultrasonic Thickness Gauge
Factory Equipment
The New Design Product Portable Ultrasonic Thickness Gauge
Customer Visiting
The New Design Product Portable Ultrasonic Thickness Gauge
Certificate
The New Design Product Portable Ultrasonic Thickness Gauge
Packing & Delivery

Packing

The New Design Product Portable Ultrasonic Thickness Gauge

With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.

The New Design Product Portable Ultrasonic Thickness Gauge
The New Design Product Portable Ultrasonic Thickness Gauge
The New Design Product Portable Ultrasonic Thickness Gauge
The New Design Product Portable Ultrasonic Thickness Gauge

Delivery

Standard meter: 3-7 days

Special meter: pls contact us

Express, by air, by sea can be optional.

The New Design Product Portable Ultrasonic Thickness Gauge
