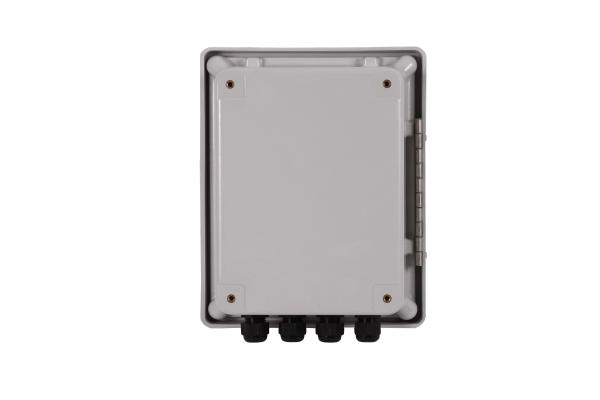

Clamp On Transit-time Ultrasonic Flow meter Wall-mounted Type Liquid Measure

TF1100-EC Wall-mounted Transit Time Ultrasonic Flowmeter works on the transit-time method. The clamp-on ultrasonic transducers (sensors) are mounted on the external surface of the pipe for non-invasive and non-intrusive flow measurement of liquid and liquefied gasses in fully filled pipe. Three pairs of transducers are sufficient to cover the most common pipe diameter ranges. In addition, its optional thermal energy measurement capability makes it possible to carry out a complete analysis of thermal energy usage in any facility.

This flexible and easy to use flow meter is the ideal tool for the support of service and maintenance activities. It can also be used for the control or even for the temporary replacement of permanently installed meters.

Features:

1. Non-invasive transducers are easy to install, cost effective, and require no pipe cutting or processing interrupt.

2. Wide liquid temperature range: -35℃~200℃.

3. Data logger function.

4. Thermal energy measurement capability can be optional.

5. For commonly used pipe materials and diameters from 20mm to over 6.0m.

6. Wide bi-directional flow range of 0.01 m/s to 12 m/s.

Application

General
● Service and maintenance

● Replacement of defective devices

● Support of commissioning process and installation

● Performance and efficiency measurement
- Evaluation and assessments
- Capacity measurement of pumps
- Monitoring of regulating valves

● Energy efficiency audits

Water and waste water industry - hot water, cooling water, potable water, sea water etc.)
Petrochemical industry
Chemical industry -chlorine, alcohol, acids, .thermal oils.etc
Refrigeration and air conditioning systems
Food , beverage and pharmaceutical industry
Power supply- nuclear power plants, thermal & hydropower plants), heat energy boiler feed water.etc
Metallurgy and mining applications
Mechanical engineering and plant engineering-pipeline leak detection, inspection, tracking and collection.

Specifications: Transmitter

Measurement principle

Ultrasonic transit-time difference correlation principle

Flow velocity range

0.01 to 12 m/s, bi-directional

Resolution

0.25mm/s

Repeatability

0.2% of reading

Accuracy

±1.0% of reading at rates >0.3 m/s);±0.003 m/s of reading at rates<0.3 m/s

Response time

0.5s

Sensitivity

0.003m/s

Damping of displayed value

0-99s(selectable by user)

Liquid Types Supported

both clean and somewhat dirty liquids with turbidity <10000 ppm

Power Supply

AC: 85-265V DC: 24V/500mA

Enclosure type

Wall-mounted

Degree of protection

IP66 according to EN60529

Operating temperature

-10℃ to +60℃

Housing material

Fiberglass

Display

4 line×16 English letters LCD graphic display, backlit

Units

User Configured (English and Metric)

Rate

Rate and Velocity Display

Totalized

gallons, ft³, barrels, lbs, liters, m³,kg

Thermal energy

unit GJ,KWh can be optional

Communication

4~20mA(accuracy 0.1%),OCT, Relay, RS232, RS485 (Modbus),data logger

Security

Keypad lockout, system lockout

Size

244*196*114mm

Weight

2.4kg

Specifications: Transducer

Degree of protection

IP65 according to EN60529.(IP67 or IP68 Upon request)

Suited Liquid Temperature

Std. Temp.: -35℃~85℃ for short periods up to 120℃

High Temp.: -35℃~200℃ for short periods up to 250℃

Pipe diameter range

20-50mm for type S, 40-1000mm for type M, 1000-6000mm for type L

Transducer Size

Type S 48(h)*28(w)*28(d)mm

Type M 60(h)*34(w)*32(d)mm

Type L 80(h)*40(w)*42(d)mm

Material of transducer

Aluminum for standard temp. sensor, and peek for high temp. sensor

Cable Length

Std:10m

Temperature Sensor

Pt1000, 0 to 200℃, Clamp-on and Insertion type Accuracy: ±0.1%

Delivery

Clamp on Ultrasonic Flow Sensor Manufacturers standard meter: 3-7 days

Special meter: pls contact us

Express, by air, by sea can be optional.
