Pure Water Flow Meter Ultrasonic Portable High Precision Strong Anti Interference
Pure Water Flow Meter Ultrasonic Portable High Precision Strong Anti Interference
Specifications
Brand Name :
Lanry
Model Number :
TF1100-EP
Certification :
CE ISO9000
Place of Origin :
Shanghai, China (Mainland)
MOQ :
1 Unit
Price :
Negotiable
Supply Ability :
100Unit/Units per Week
Packaging Details :
packing: 1unit/carton
Product Name :
TF1100-EP Transit-Time Portable Ultrasonic Flowmeter with data logger function
Accuracy :
Reading+/- 1%
High Temp :
-35-200 °C
Pipe diameter :
DN20-DN6000
Flow velocity range :
0.01~12m/s bi-directional
Power supply :
DC24V,AC220V
Description

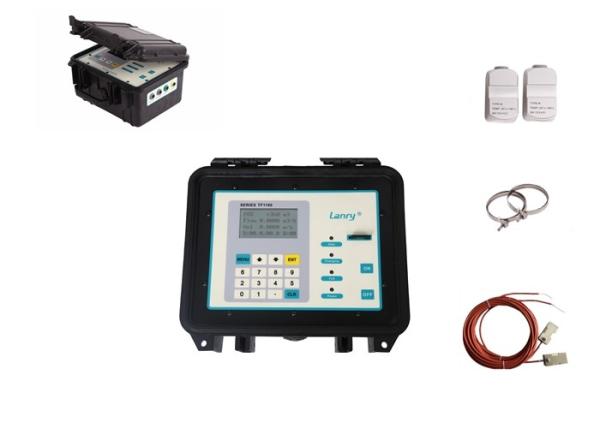

Portable Ultrasonic Pure water Flow Meter TF1100-EP with data storage function:


Our High-precision Portable Ultrasonic Pure water Flow Meter TF1100-EP is a reliable and absolute matured achievement in high accuracy measurement. The power consumption dropped to very low, with a large screen 4- lines display full English or customized languages menu and easy to use, support 16G SD card data acquisition and serial data download.

The clamp-on ultrasonic transducers (sensors) are mounted on the external surface of the pipe for non-invasive and non-intrusive flow measurement of liquid and liquefied gasses in fully filled pipe. Three pairs of transducers are sufficient to cover the most common pipe diameter ranges. In addition, its optional thermal energy measurement capability makes it possible to carry out a complete analysis of thermal energy usage in any facility. This flexible and easy to use flow meter is the ideal tool for the support of service and maintenance activities. It can also be used for the control or even for the temporary replacement of permanently installed meters.

Portable Ultrasonic Pure water Flow Meter TF1100-EP with data storage function Features:

1. 50-hour battery (rechargeable), back-lit 4 lines display all integrated into a rugged, watertight enclosure.

2. Non-invasive transducers.

3. Data logger function.

4. Lightweight and easily transportable in box.

5. Wide bi-directional flow range of 0.01 m/s to 12 m/s. Wide liquid temperature range: -35℃~200℃.

6. The heat measurement function by configuring with paired temperature sensors.

7. Works reliably in both clean and somewhat dirty liquids with turbidity<10000ppm.

TF1100-EP Transit-Time Portable Ultrasonic Flowmeter Application:

Water and waste water industry - hot water, cooling water, potable water, sea water etc.)
Petrochemical industry

Power supply- nuclear power plants, thermal & hydropower plants), heat energy boiler feed water.etc
Metallurgy and mining applications
Mechanical engineering and plant engineering-pipeline leak detection, inspection, tracking and collection.
Food , beverage and pharmaceutical industry
Chemical industry -chlorine, alcohol, acids, .thermal oils.etc
Refrigeration and air conditioning systems

TF1100-EP Transit-Time Portable Ultrasonic Flowmeter Specifications:

Transmitter :

Measurement principle

Ultrasonic transit-time difference correlation principle

Flow velocity range

0.01 to 12 m/s, bi-directional

Resolution

0.25mm/s

Repeatability

0.2% of reading

Accuracy

±1.0% of reading at rates >0.3 m/s);±0.003 m/s of reading at rates<0.3 m/s

Response time

0.5s

Sensitivity

0.003m/s

Damping of displayed value

0-99s(selectable by user)

Liquid Types Supported

both clean and somewhat dirty liquids with turbidity <10000 ppm

Power Supply

AC: 85-265V Up to 50 h with fully charged internal batteries

Enclosure type

Portable

Degree of protection

IP65

Operating temperature

-20℃ to +60℃

Housing material

ABS( UL 94HB)

Display

4 line×16 English letters LCD graphic display, backlit

Units

User Configured (English and Metric)

Rate

Rate and Velocity Display

Totalized

gallons, ft³, barrels, lbs, liters, m³,kg

Thermal energy

unit GJ,KWh can be optional

Communication

4~20mA,OCT, Relay, RS232, RS485 (Modbus),Logged data

Security

Keypad lockout, system lockout

TF1100-EP Transit-Time Portable Ultrasonic Flowmeter Specifications:

Transducer:

Degree of protection

IP65 according to EN60529.(IP67 or IP68 Upon request)

Suited Liquid Temperature

Std. Temp.: -35℃~85℃ for short periods up to 120℃

High Temp.: -35℃~200℃ for short periods up to 250℃

Pipe diameter range

20-50mm for type S, 40-1000mm for type M, 1000-6000mm for type L

Transducer Size

Type S 48(h)*28(w)*28(d)mm

Type M 60(h)*34(w)*32(d)mm

Type L 80(h)*40(w)*42(d)mm

Material of transducer

Aluminum for standard temp. sensor,and peek for high temp. sensor

Cable Length

Std:5m

Temperature Sensor

Pt1000, 0 to 200℃, Clamp-on and Insertion type Accuracy: ±0.1%

Application pictures:

Pure Water Flow Meter Ultrasonic Portable High Precision Strong Anti Interference

Datasheet Download TF1100-EP transit-time portable ultrasonic flowmet...

Manual Download TF1100-EP portable flowmeter manual.pdf

Packing & Delivery

TF1100-EP Transit-Time Portable Ultrasonic Flowmeter with data logger function

With years of export experience along with excellent quality, advanced services and competitive prices, Lanry has won numerous customers' trust and support. With years of export experience along with excellent quality, advanced services and competitive prices, Lanry has won numerous customers' trust and support.

Pure Water Flow Meter Ultrasonic Portable High Precision Strong Anti Interference

Delivery

TF1100-EP Transit-Time Portable Ultrasonic Flowmeter with data logger function

Standard meter: 3-7 days

Special meter: pls contact us

Express, by air, by sea can be optional.
