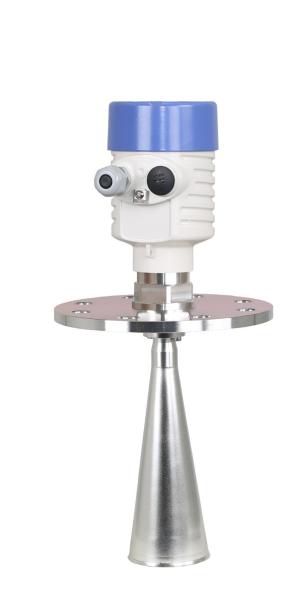

Mildly Erosive Liquids Radar Level Meter , Radar Liquid Level Sensor
Mildly Erosive Liquids Radar Level Meter , Radar Liquid Level Sensor
Specifications
Brand Name :
Lanry
Model Number :
LRD816
Certification :
ISO9000, CE, Explosion-proof
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
800pcs/month
Delivery Time :
7-10 working days
Packaging Details :
carton packing
Power Supply :
24VDC or 220VAC
Accuracy :
±3mm
Level Rang :
35m
Process Temperature :
-40-120℃
Frequency :
26GHz
Port :
Shanghai
Description

Radar Level Meter LRD816 for Mildly erosive liquids under certain temperature and pressure:

Radar Level Meter LRD816 is a reliable and absolute matured achievement in high accuracy measurement, it used for Mildly erosive liquids under certain temperature and pressure.

Radar measurement technology is non-contacting and low maintenance. Because microwaves require no carrier medium, they are virtually unaffected by the process atmosphere (vapor, pressure, dust, or temperature extremes). Lanry offers a variety of models to meet the specific needs of your application.

All the Lanry radar products are based on Siemens technology and components manufacturing.

Radar Level Meter LRD816 for Mildly erosive liquids under certain temperature and pressure Specifications:

Model LRD816
Application Mildly erosive liquids under certain temperature and pressure
Measuring range 30m
Process Connection Thread / Flange(Optional)
Process Temperature (-40～120)℃ / (-60～250)℃ (-60～600)℃
Process Pressure (-0.1～4.0)MPa/(-0.1～40)MPa
Accuracy ±3mm
Antenna/Material Horn/Stainless Steel 316L
Frequency 26GHz
Explosion Proof Exia IICT6 / Exd IICT6
Housing Aluminum:IP67; Plastic:IP66
Output (4～20)mA/HART/RS485(Modbus)
Display LCD, can display curve(standard)
Power Supply 2-wire:(DC24V)
4-wire:(DC24V or AC220V)

Packing for Transportation

With years of export experience along with excellent quality, advanced services and competitive prices, Lanry has won numerous customers' trust and support all over the world.

Mildly Erosive Liquids Radar Level Meter , Radar Liquid Level SensorMildly Erosive Liquids Radar Level Meter , Radar Liquid Level SensorMildly Erosive Liquids Radar Level Meter , Radar Liquid Level Sensor

Delivery by Express

Smart oil level gauge Standard meter: 3-7 days

Special meter: pls contact us

Express, by air, by sea canbe optional.
