High Accuracy Clamp On Type Ultrasonic Flow Meter No Need Daily Maintenance
High Accuracy Clamp On Type Ultrasonic Flow Meter No Need Daily Maintenance
High Accuracy Clamp On Type Ultrasonic Flow Meter No Need Daily Maintenance
High Accuracy Clamp On Type Ultrasonic Flow Meter No Need Daily Maintenance
Specifications
Brand Name :
Lanry
Model Number :
TF1100-EC
Certification :
CE
Place of Origin :
Shanghai, China (Mainland)
MOQ :
1 Unit
Price :
Negotiable
Packaging Details :
Carton package
Supply Ability :
50pcs/day
Product name :
Transit-Time Flow Meter TF1100-EC
Sensor type :
Clamp on
Accuracy :
Reading+/- 1%
Transducer type :
non-invasive
Output :
datalogger/4-20mA /OCT /RS485/RS232/GPRS
High Temp :
-35-200 °C
Description

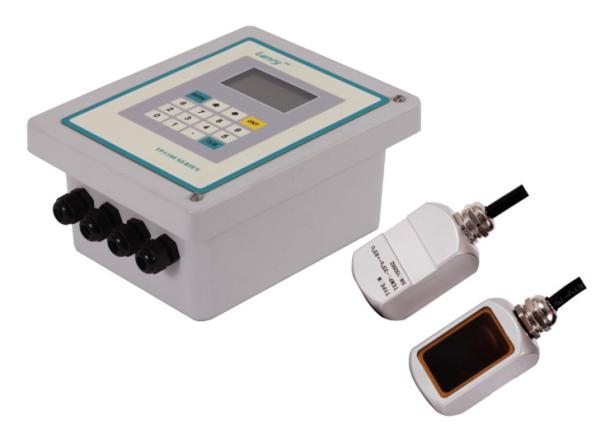

High Accuracy Transit-Time Ultrasonic Flow Meter TF1100-EC with clamp-on sensors
Ultrasonic Flow Meter TF1100-EC with clamp on sensors is a non-contact instrument, Not only can the media flow measurement with large diameter, but also be used to measure the medium, which is not easy to be touched and observed.
Ultrasonic Flow Meter TF1100-EC works on the transit-time method. The clamp-on ultrasonic transducers (sensors) are mounted on the external surface of the pipe for non-invasive and non-intrusive flow measurement of liquid and liquefied gasses in fully filled pipe. Three pairs of transducers are sufficient to cover the most common pipe diameter ranges.
High Accuracy Transit-Time Ultrasonic Flow Meter TF1100-EC with clamp-on sensors Features
1. Non-invasive transducers are easy to install, cost effective, and require no pipe cutting or processing interrupt.
2. Wide liquid temperature range: -35℃~200℃.
3. Data logger function for this Low cost flow meter .
4. Thermal energy measurement capability can be optional.
5. For commonly used pipe materials and diameters from 20mm to over 6.0m.

6. Wide bi-directional flow range of 0.01 m/s to 12 m/s.


Application

General
● Service and maintenance Water and waste water industry - hot water, cooling water, potable water, sea water etc.)
● Replacement of defective devices Petrochemical industry
● Support of commissioning process and installation Chemical industry -chlorine, alcohol, acids, .thermal oils.etc
● Performance and efficiency measurement Refrigeration and air conditioning systems
- Evaluation and assessments Food , beverage and pharmaceutical industry
- Capacity measurement of pumps Power supply- nuclear power plants, thermal & hydropower plants), heat energy boiler feed water.etc
- Monitoring of regulating valves Metallurgy and mining applications
● Energy efficiency audits Mechanical engineering and plant engineering-pipeline leak detection, inspection, tracking and collection.

Specifications :Transmitter

Measurement principle Ultrasonic transit-time difference correlation principle
Flow velocity range 0.01 to 12 m/s, bi-directional
Resolution 0.25mm/s
Repeatability 0.2% of reading
Accuracy ±1.0% of reading at rates >0.3 m/s);±0.003 m/s of reading at rates<0.3 m/s
Resonse time 0.5s
Sensitivity 0.003m/s
Damping of displayed value 0-99s(selectable by user)
Liquid Types Supported both clean and somewhat dirty liquids with turbidity <10000 ppm
Power Supply AC: 85-265V DC: 24V/500mA
Enclosure type Wall-mounted
Degree of protection IP66 according to EN60529
Operating temperature -20℃ to +60℃
Housing material Fiberglass
Display 4 line×16 English letters LCD graphic display, backlit
Units User Configured (English and Metric)
Rate Rate and Velocity Display

Specifications :Transducer

Degree of protection IP65. IP67 or IP68 according to EN60529
Suited Liquid Temperature Std. Temp.: -35℃~85℃ for short periods up to 120℃
High Temp.: -35℃~200℃ for short periods up to 250℃
Pipe diameter range 20-50mm for type S, 40-1000mm for type M, 1000-6000mm for type L
Transducer Size Type S 52(h)*28(w)*26(d)mm
Type M 60(h)*34(w)*32(d)mm
Type L 80(h)*40(w)*42(d)mm
Material of transducer Aluminium for standard temp. sensor,and peek for high temp. sensor
Cable Length Std: 10m

Company

Lanry Instruments Corporation is the professional manufacturer of flow detection instruments, provides one package service of research and development, production, marketing and after-sales services. Engaged in the production of flow instruments more than 20 years, Lanry has been equipped with advanced design capabilities and piled up a wealth of field application experience, which lays a solid foundation for the commitment to the promotion and innovation of high-tech system solution. The corporation has devoted to the production of flow measurement instruments with superior performance, high stability and strong reliability. Currently, Lanry Instruments has developed into two branches as Lanry Instruments (Shanghai) Co., Ltd. and Lanry instruments (Dalian) Co., Ltd, which are responsible for different areas and applications.

Packing & Delivery

Packing

With years of export experience along with excellent quality, advanced services and competitive prices, Lanry has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Lanry has won numerous customers' trust and support.

High Accuracy Clamp On Type Ultrasonic Flow Meter No Need Daily MaintenanceHigh Accuracy Clamp On Type Ultrasonic Flow Meter No Need Daily MaintenanceHigh Accuracy Clamp On Type Ultrasonic Flow Meter No Need Daily Maintenance

Delivery

High Accuracy Low Cost Wall Mount Flow Meter standard meter: 3-7 days

Special meter: pls contact us

Express, by air, by sea can be optional.
