Coordinate Correction Ultrasonic Open Channel Flow Meter For River CE
Coordinate Correction Ultrasonic Open Channel Flow Meter For River CE
Specifications
Brand Name :
Lanry
Model Number :
DOF6000-P
Certification :
CE
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiable
Packaging Details :
Carton packing
Power supply :
Calculator：220VAC&24VDC；Sensor:12VDC
Accuracy :
±1% measured velocity
Output :
4-20mA, RS485( Modbus-RTU), Data logger，GPRS
Measuring range :
Partially Filled Pipe:200-10000mm; Open Channel: 200-10000mm
Operating temperature: :
0℃ ~+60℃ water temperature
Flow calculation: :
Velocity; Totalizer
Description

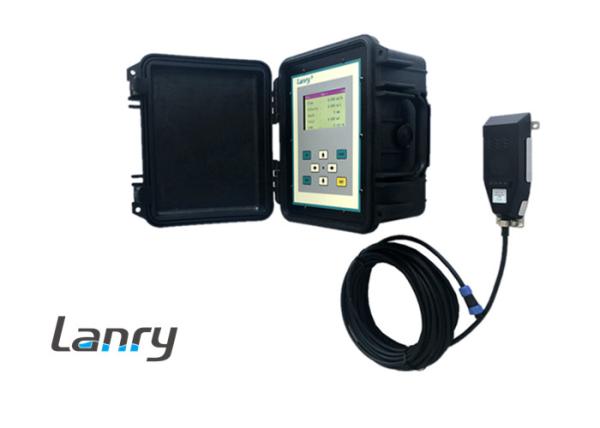

High Accuracy 1% Portable type Ultrasonic Open Channel Flow Meter for river

Ultrasonic Doppler Principle in Quadrature
Sampling Mode is utilised to measure water velocity.
The 6537 Instrument transmits ultrasonic energy through its epoxy casing into the water.
Suspended sediment particles, or small gas bubbles in the water reflect some of the transmitted
ultrasonic energy back to the 6537 Instrument’s ultrasonic receiver instrument that processes this
received signal and calculates the water velocity.

High Accuracy 1% Portable type Ultrasonic Open Channel Flow Meter for river features:

  1. 20 coordinate points to describe the river’s shape of cross section.
  2. Velocity Range : 0.02mm/s to 10m/s bi-directional, accuracy is 2%.
  3. Depth is measured by both the pressure sensor and ultrasonic level sensor principles.
  4. One instrument can measure the velocity, depth and conductivity at same time.
  5. With coordinate correction and pressure compensation function.
  6. IP68 Epoxy-sealed body design, long time under water.
  7. RS485/MODBUS output, can contact computer directly.
  8. Depth Range: 0 to 10m
  9. Measure velocity in both forward flow and back flow.

Specification:

Type: Portable type
IP class: Calculator: IP66,Sensor: IP68
Power supply: Calculator:220VAC&24VDC；Sensor:12VDC
Operating temperature: 0℃ ~+60℃ water temperature
Calculator show: 4.5” color LCD
Calculator output: 4-20mA, RS485( Modbus-RTU),Data logger,GPRS
Sensor size: 135mm x 50mm x 20mm (L x W x H)
Application: Partially Filled Pipe:200-10000mm; Open Channel: 200-10000mm
Flow calculation: Velocity; Totalizer
Pipe, Channel type Partially filled pipe, Open Channel and River, Stream
Sensor material: Epoxy-sealed body, Marine Grade 316 Stainless Steel Mounting Bracket
Sensor weight: 1kg with 15m of cable, it can extend o 100m
Velocity range: 0.02m/s to 10m/s in one direction or bidirectional flow capacity(ultraflow 6537 parameter setting)
Velocity accuracy: ±1% measured velocity
Velocity resolution: 1mm/s
Temperature resolution: 0.1°C
Depth range: 20mm to 5m(Ultraflow 6527);20mm to 10m(ultraflow 6537)
Cable: The standard cable is 15m, the maximum option is 100m.
Power usage: 10V to 24VDC, 50µA standby, 100mA/s
SDI-12: SDI-12V 1.3recorder (1200 baud smart instrument channel)

Packing & Delivery

Packing
With years of export experience along with excellent quality, advanced services and competitive
prices, Lanry has won numerous customers' trust and support.With years of export experience
along with excellent quality, advanced services and competitive prices, Lanry has won
numerous customers' trust and support.

Coordinate Correction Ultrasonic Open Channel Flow Meter For River CECoordinate Correction Ultrasonic Open Channel Flow Meter For River CECoordinate Correction Ultrasonic Open Channel Flow Meter For River CE

Delivery
Standard meter: 3-7 days
Special meter: pls feel free to contact us
Express, by air, by sea can be optional.
