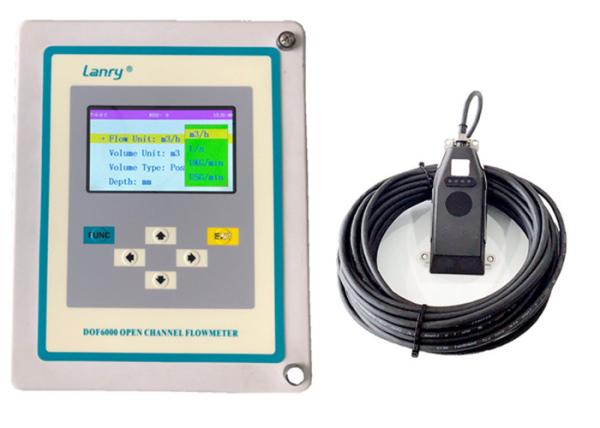

6537 Instrument Ultrasonic Open Channel Meter / Liquid Ultrasonic Flow Meter
6537 Instrument Ultrasonic Open Channel Meter / Liquid Ultrasonic Flow Meter
Specifications
Brand Name :
Lanry
Model Number :
DOF6000-6537
Certification :
CE
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiable
Packaging Details :
Carton packing
Accuracy :
±1% measured velocity
Output :
4-20mA, RS485( Modbus-RTU), Data logger，GPRS
Measuring range :
Partially Filled Pipe:200-10000mm; Open Channel: 200-10000mm
Operating temperature: :
0℃ ~+60℃ water temperature
Velocity range: :
0.02m/s to 10m/s in one direction or bidirectional flow capacity(ultraflow 6537 parameter setting)
Sensor size :
135mm*50mm*20mm
Description

6537 Instrument Ultrasonic Open Channel Meter / Liquid Ultrasonic Flow Meter

Ultrasonic open channel flow meter with conductivity liquid ultrasonic flow meter can calculate the cross-sectional area of partially filled pipe, open channel stream or river, for stream or river, it can input up to 20 coordinate points describing the river’s shape of cross section. It is suitable for various applications.

6537 Instrument Ultrasonic Open Channel Meter / Liquid Ultrasonic Flow Meter features:

  1. Measure velocity in both forward flow and back flow.
  2. One instrument can measure the velocity, depth and conductivity at same time.
  3. Velocity Range : 0.02mm/s to 10m/s bi-directional, accuracy is 1%.
  4. Depth Range: 0 to 10m
  5. IP68 Epoxy-sealed body design, long time under water.
  6. Depth is measured by both the pressure sensor and ultrasonic level sensor principles.
  7. With coordinate correction and pressure compensation function.
  8. 20 coordinate points to describe the river’s shape of cross section.
  9. RS485/MODBUS output, can contact computer directly.

Specification:

Power supply: Calculator:220VAC&24VDC; Sensor:12VDC
IP class: Calculator: IP66,Sensor: IP68
Operating temperature: 0℃ ~+60℃ water temperature
Calculator show: 4.5” color LCD
Calculator output: 4-20mA, RS485( Modbus-RTU),Data logger,GPRS
Sensor size: 135mm x 50mm x 20mm (L x W x H)
Application: Partially Filled Pipe:200-10000mm; Open Channel: 200-10000mm
Flow calculation: Velocity；Totalizer
Pipe, Channel type Partially filled pipe, Open Channel and River, Stream
Sensor material: Epoxy-sealed body, Marine Grade 316 Stainless Steel Mounting Bracket
Sensor weight: 1kg with 15m of cable, it can extend o 100m
Velocity range: 0.02m/s to 10m/s in one direction or bidirectional flow capacity(ultraflow 6537 parameter setting)
Velocity accuracy: ±1% measured velocity
Depth range: 20mm to 5m(Ultraflow 6527);20mm to 10m(ultraflow 6537)
Temperature resolution: 0.1°C
Cable: The standard cable is 15m, the maximum option is 100m.
Power usage: 10V to 24VDC, 50µA standby, 100mA/s
SDI-12: SDI-12V 1.3recorder (1200 baud smart instrument channel)

Packing & Delivery

Packing


With years of export experience along with excellent quality, advanced services and competitive
prices, Lanry has won numerous customers' trust and support.With years of export experience
along with excellent quality, advanced services and competitive prices, Lanry has won
numerous customers' trust and support.

6537 Instrument Ultrasonic Open Channel Meter / Liquid Ultrasonic Flow Meter6537 Instrument Ultrasonic Open Channel Meter / Liquid Ultrasonic Flow Meter6537 Instrument Ultrasonic Open Channel Meter / Liquid Ultrasonic Flow Meter

Delivery
Standard meter: 3-7 days
Special meter: pls feel free to contact us
Express, by air, by sea can be optional.
