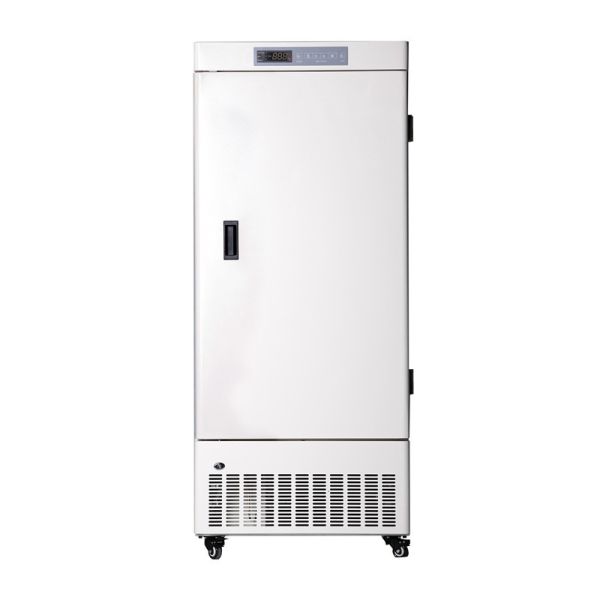

268L Capacity Environment Friendly Vertical Laboratory Deep Biomedical Vaccine Freezer
268L Capacity Environment Friendly Vertical Laboratory Deep Biomedical Vaccine Freezer
268L Capacity Environment Friendly Vertical Laboratory Deep Biomedical Vaccine Freezer
268L Capacity Environment Friendly Vertical Laboratory Deep Biomedical Vaccine Freezer
268L Capacity Environment Friendly Vertical Laboratory Deep Biomedical Vaccine Freezer
268L Capacity Environment Friendly Vertical Laboratory Deep Biomedical Vaccine Freezer
268L Capacity Environment Friendly Vertical Laboratory Deep Biomedical Vaccine Freezer
268L Capacity Environment Friendly Vertical Laboratory Deep Biomedical Vaccine Freezer
268L Capacity Environment Friendly Vertical Laboratory Deep Biomedical Vaccine Freezer
268L Capacity Environment Friendly Vertical Laboratory Deep Biomedical Vaccine Freezer
Specifications
Brand Name :
METHER
Model Number :
MDF-40V268E
Certification :
ISO9001,ISO13485, ISO14001,CE
Place of Origin :
ANHUI CHINA
MOQ :
1
Price :
$ 1354.5-1483.5 per set
Payment Terms :
T/T, Western Union, L/C, MoneyGram, D/A, D/P
Supply Ability :
1000 unit per month
Delivery Time :
7
Packaging Details :
Carton packing with strong belt Package size(W*D*H)(mm) 760*760*1750 20GP/40GP/40HQ 21/45/45 pieces
Capacity（L/cu.ft) :
268/9.46
Cooling method :
Direct cooling
Defrost :
Manual
Refrigerant :
R290
Temperature range（℃） :
·-20~-40℃
NT./GT.（kg) :
98.5/115
20GP/40GP/40HQ :
21/45/45
Description

220V / 50Hz 268 Liters laboratory deep Freezer with Excellent Insulation performance for medical use

PRODUCTION DESCRIPTION

This product mainly used for storing vaccines blood plasma and other biological materials. Its ccurate microprocessor control systems, excellent cooling system and High-efficient environmentally friendly refrigerant had received good appreciation.

Medical Freezer (MDF-40V268E)

268L Capacity Environment Friendly Vertical Laboratory Deep Biomedical Vaccine Freezer

Specification

Parameter Model MDF-40V268E
Specificaitons Shelf/drawer Shelves
Cooling method Direct cooling
Defrost Manual
Refrigerant R290
Power consumption(kWh/24h) 4
Noise(db) 48
Ambient temperature(℃) 10~32℃
Temperature range(℃) ·-30~-40℃
Cooling system Compressor brand/QTY CUBIGEL/1
Condenser Wire tube
Sensor NTC
Temperature controller Microprocessor
Display Digital display
Power Voltage/frequency(V/Hz) 220/50Hz
Power(W) 300W
Current(A) 1.6A
Material Inside and Outside material Color sprayed steel
Insulation PURF
Size Capacity(L/cu.ft) 268/9.46
NT./GT.(kg) 98.5/118
Exterior size(W*D*H)(mm) 690*680*1635
Interior size(W*D*H)(mm) 508*455*1137
Package size(W*D*H)(mm) 760*760*1750
20GP/40GP/40HQ 21/45/45
Alarm High/low temperature Y
Power failure Y
Sensor error Y
Filter check /
Temperature controller failure Y
Low battery /
Condenser clean /
High ambient temperature /
Door ajar Y
Power failure backup system(alarm) 8h
Accessories Foot Y
Castor Y
Inside door Y
Test hole QTY/diameter Y
USB port /
Remote alarm port Y
Other Certification ISO9001,ISO13485,ISO14001,CE

Key Features

  • LED digital display and increment tolerance at 0.1ºC
  • Independent inner door to decrease the cooling leaking out, and provide more stable inside temperature performance
  • High density CFC-Free urethane foam insulation.

Ergonomic Design

  • USB data logging and temperature recorder (optional).
  • Build-in lock with safety and beauty
  • Lockable caster design for customer to move as needed

Reliability

  • Chemically stable, CFC -free, commercially available and environmentally safe refrigerant.
  • Optimized refrigeration system designed to maximize cooling effect and temperature uniformity
  • Microprocessor control, digital display, adjustable temperature range: - 30ºC--40ºC
  • LED digital display for clear observation,
  • Wide voltage tolerance design with applicable voltage range of 187-242V/AC


Safety

  • Multiple malfunction alarms to detect high and low temperature , sensor error, power off, temperature controller malfunction, door ajar.
  • Two types of alarm indications: audible buzzing and visual flashing light.
  • Corrosion proof cabinet interior design
  • Power failure protect: the device would be attack by the high current when all devices restart simultaneously, the start-delay function would protect device from the damage

Packing and Delivery

Carton packing with strong belt Package size(W*D*H)(mm) 760*760*1750 20GP/40GP/40HQ 21/45/45 pieces

268L Capacity Environment Friendly Vertical Laboratory Deep Biomedical Vaccine Freezer

Compamy Information

Anhui Zhongke Duling Commercial Appliance Co.ltd is a high-tech enterprise which specialized in designing,developing and manufacturing medical Freezers more than 10 years, like ultra-low temperature freezers,deep freezers,blood platelet incubators and customized medical freezers, widely used in laboratory & bio-medical storage equipments, cold room, cold-chain logistics and customized instruments.

Our factory locates in Hefei city, Anhui province, China which is near Shanghai and Ningbo port.

268L Capacity Environment Friendly Vertical Laboratory Deep Biomedical Vaccine Freezer268L Capacity Environment Friendly Vertical Laboratory Deep Biomedical Vaccine Freezer
