304 Stainess Steel LCD Display Ultra Low Temperature Freezer Direct Cooling
304 Stainess Steel LCD Display Ultra Low Temperature Freezer Direct Cooling
304 Stainess Steel LCD Display Ultra Low Temperature Freezer Direct Cooling
304 Stainess Steel LCD Display Ultra Low Temperature Freezer Direct Cooling
304 Stainess Steel LCD Display Ultra Low Temperature Freezer Direct Cooling
304 Stainess Steel LCD Display Ultra Low Temperature Freezer Direct Cooling
304 Stainess Steel LCD Display Ultra Low Temperature Freezer Direct Cooling
304 Stainess Steel LCD Display Ultra Low Temperature Freezer Direct Cooling
304 Stainess Steel LCD Display Ultra Low Temperature Freezer Direct Cooling
304 Stainess Steel LCD Display Ultra Low Temperature Freezer Direct Cooling
Specifications
Brand Name :
METHER
Model Number :
MDF-86V338
Certification :
CE FDA ISO
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 units per month
Delivery Time :
15-45 days after receive the payment
Packaging Details :
Standard export wood packing
Shelf/drawer QTY :
Stainless steel shelf/3
Refrigerant :
HC
Ambient temperature（℃） :
10~32℃
Temperature range（℃） :
-40~-86℃
Temperature controller :
Microprocessor
Power（W) :
870W
Inside material :
Stainless steel
Capacity（L/cu.ft) :
338/11.93
Package size(W*D*H)(mm) :
940*1070*2130
Description

304 Stainess Steel Ultra Low Temperature Freezer With Multi Alarm Function

-86ºC ULT freezer is specially designed and manufactured for long term storage of various biological products, including viruses, germs, erythrocytes, leucocyte and cutis.and widely used in blood banks, hospitals, edipemic prevention service, and research institutes, laboratories in electronic and chemical plants, biological engineering institutes and marine fishery companies.​


KEY DESIGN FEATURES

  • Microprocessor-controlled system designed for range of -40°C to -86°C for cabinet space with 1°C increment.
  • Depending on the load demands and ambient conditions, one or both refrigeration systems will operate on demand, ensuring the samples are fully protected under the worst possible condition.
  • Optional temperature recorder, storage racks and box.
  • Product structure optimized for biological sample library, can provide storage space of up to 40,000 samples
  • Each component equipped with special material shock absorbing material, and high-density fire-resistant sound-absorbing cotton is installed around the unit.
  • Optimized dual-machine cascade refrigeration system, 35% energy savings
  • VIP IIPLUS second generation vacuum insulation board technology, the refrigerator has good insulation performance, designed for entering the elevator

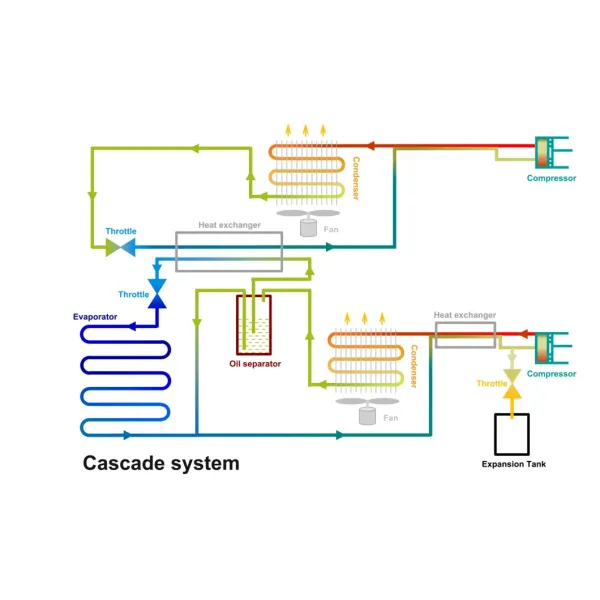

-86°C Cascade ultra low temperature freezer

Mainstream Cascade refrigeration system. HC refrigerant, environmental protection and energy saving, which can effectively save 50%.

Special noise reduction design, in each possible noise generating parts are equipped with special material. High density fire-proof sound-absorbing cotton is usded in the system for perfect noise reduction performance.
304 Stainess Steel LCD Display Ultra Low Temperature Freezer Direct Cooling
304 Stainess Steel LCD Display Ultra Low Temperature Freezer Direct Cooling
FILED PROVEN RELIABILITY

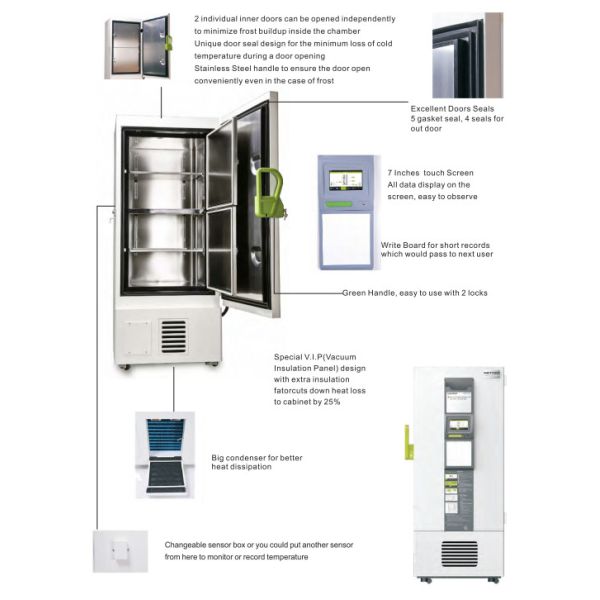

  • Unique insulated inner door design for four separate storage compartments to minimize frost buildup inside the chamber.
  • Specialized control system design for a well-balanced operation of dual refrigeration system.
  • Positive filed proven reliability record.


SAFETY
  • Malfunction alarms including high and low temperature, power failure, sensor error, clean-filter, and extremely high ambient, abnormal voltage, thermostat failure, low battery, condenser clean, door ajar.
  • Capable of producing two types of alarm outputs, audible buzzer and visible flashing light.
  • Door open feature standard and USB port for temperature date downloading standard on upright models.
  • Remote alarm contacts.
304 Stainess Steel LCD Display Ultra Low Temperature Freezer Direct Cooling



CO2 & LN2 BACKUP SYSTEM
  • Independent equipment CO2 back up system, LN2 back up system a backup refrigeration system for Ultra-Low Temperature Freezer failures and power outages.
  • The backup refrigeration system consists of a control system and a supply connection System.
  • Adjust the solenoid Valve's On-off according to its own temperature control probe.A liquid nitrogen tank or liquid carbon dioxide tank that is connected by a solenoid valve as a Reserve.
  • The solenoid valve is powered by an internal rechargeable battery.
304 Stainess Steel LCD Display Ultra Low Temperature Freezer Direct Cooling
304 Stainess Steel LCD Display Ultra Low Temperature Freezer Direct Cooling
OPTIONAL EXTRA PARTS
  • Chart Recorder
  • Data logger
  • Storage box
  • Storage rack

Model MDF-86V338
Specificaitons Shelf/drawer QTY Stainless steel shelf/3
Cooling Direct cooling
Defrost Manual
Refrigerant HC
Power Consumption(kWh/24h) 12.8
Noise(db) 50
Ambient temperature(℃) 10~32℃
Temperature range(℃) -40~-86℃
Cooling system Compressor brand/QTY SECOP/2
Sensor PTC
Temperature controller Microprocessor
Display LCD display
Power Voltage/frequency(V/Hz) 220/50Hz
Power(W) 870W
Current(A) 6.75A
Material Inside material Stainless steel
Outside material Color sprayed steel
Insulation PURF
Size Capacity(L/cu.ft) 338/11.93
NT./GT.(kg) 250/305
Exterior size(W*D*H)(mm) 880*980*1940
Interior size(W*D*H)(mm) 488*607*1140
Package size(W*D*H)(mm) 940*1070*2130
CBM 2.14
20GP/40GP/40HQ 12/24/24
Frozen Racks Racks 12(4X4)
Boxes (2 Inches) 192
Samples(2ml) 19200
Alarm High/low temperature Y
Power failure Y
Abnormal voltage Y
Sensor error Y
Filter screen check Y
Thermostat failure Y
Low battery Y
Condenser clean Y
High ambient temperature Y
Door ajar Y
Power failure backup system(alarm)
Accessories Castor Y
Inside door 2
Test hole QTY/diameter 2/25MM
USB port Y
Chart recorder Optional
Data logger Optional
Remote alarm port Y


304 Stainess Steel LCD Display Ultra Low Temperature Freezer Direct Cooling304 Stainess Steel LCD Display Ultra Low Temperature Freezer Direct Cooling


INSTALLATION AND APPLICATION

  • Wide rage operating voltage system from 187V to 242V designed to allow units installed in areas with poor voltage condition
  • Suitable for 10°C to 32°Cambient temperature.
