-196 Degree 370 Liters Liquid Nitrogen Tanks Stainless Steel For Biological Storage
-196 Degree 370 Liters Liquid Nitrogen Tanks Stainless Steel For Biological Storage
-196 Degree 370 Liters Liquid Nitrogen Tanks Stainless Steel For Biological Storage
-196 Degree 370 Liters Liquid Nitrogen Tanks Stainless Steel For Biological Storage
-196 Degree 370 Liters Liquid Nitrogen Tanks Stainless Steel For Biological Storage
-196 Degree 370 Liters Liquid Nitrogen Tanks Stainless Steel For Biological Storage
-196 Degree 370 Liters Liquid Nitrogen Tanks Stainless Steel For Biological Storage
-196 Degree 370 Liters Liquid Nitrogen Tanks Stainless Steel For Biological Storage
Specifications
Brand Name :
METHER
Model Number :
YYD-370-320P
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
US$9000~US$9800
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300 stes/month
Delivery Time :
35 days
Packaging Details :
Plywood exporting package
Material :
SUS304
Capacity :
370 liters
1.2&2ml vials :
15600 pcs
RACKS(100 per box） :
12 pcs
RACKS(25 per box） :
4 pcs
RACK LAYERS :
12
Opening Dia. :
320mm
Internal Dia :
730mm
Height :
1400mm
Door width requirement :
815mm
N.W :
258KG
G.W :
559KG
Description

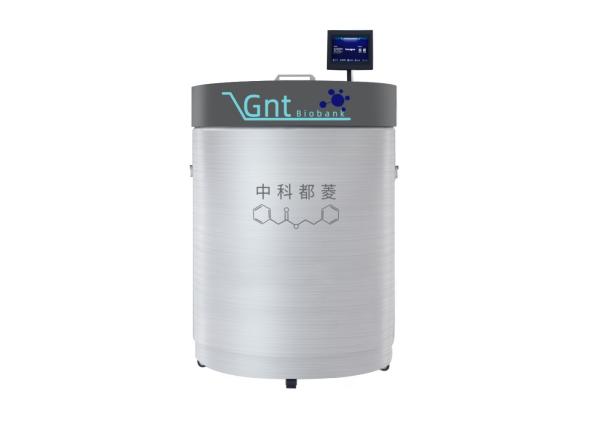

-196 Degree 370 Liters Stainless Steel Smart Vapor Phase Liquid Nitrogen Tanks With 15600 Vials For Biological Storage
Stainless Steel Vapor Phase
Liquid Nitrogen Tanks

The GNTBIOBANK series offers users a safer and smarter ultra-low temperature liquid nitrogen storage system with a capacity of 15,600-9,4500 2ml cryovials and a large off-bore open-ended design for easy storage of samples. Compatible with both vapor phase and liguid phase storage modes. the system ensures uniform and stable temperatures throughout the entire tank, even when the lid is open for long periods of time. The temperature difference between the entire storage area and the top of the racks can be as low as -190°C.
-196 Degree 370 Liters Liquid Nitrogen Tanks Stainless Steel For Biological Storage
-196 Degree 370 Liters Liquid Nitrogen Tanks Stainless Steel For Biological Storage
Features

○ Compatible with both gas and liquild phae storage modes
○ With a wide range of capacity avallable.
○ Compatble wth both manual and automatic refillcontrol modes for a more flexible operating experlence
○ Advanced temperature and level monlitoring and alarm system for network monitoring
○ Hot-gas-bypass design reduces the effect of temperature fluctuations inslde the tank to ensure sample safety
○ Support data backup and saving, exportable for printing
○ One-touch defogging for easy sample finding and retrieval

Smart Control System

The intelligent monitoring terminal of liquid nitrogen tank has data storage function; supports compatible with various mainstream communication protocols.It adopts 10-inch LCD intelligent touch screen to visually display the operating status and parameters of liquid nitrogen tank in the form of chart. Terminal can automatically / manually open the inlet solenoid valve for liquid nitrogen supplement, real-time monitoring level height, tank temperature, solenoid switch status and running time, with authority and security password protection, various alarm functions(level alarm, temperature alarm, over-limit alarm, sensor fault alarm, cover overtime alarm, rehydration alarm, SMS remote alarm, power alarm), more monitoring signal to the central computer unified centralized monitoring and control.
-196 Degree 370 Liters Liquid Nitrogen Tanks Stainless Steel For Biological Storage
Optima Use of Storage Space

Racks are stored on the rotating tray with an appropriate distance from the wall of the chamber. Liquid nitrogen or supercooled nitrogen vapor is filled in the space between the tray and the wall to maintain temperature uniformity. Storage space is equally divided into four or six fan-shaped storage rooms which are clearly labeled. Each storage room is easily rotated to the opening of the tank for convenient sample access.

Product structures
Temperature Graph


Self-pressurized Liquid NItrogen Supplier System

The self-pressurised series of liquid nitrogen replenishment tanks are used for transporting and storing low temperature liquid nitrogen, and are high performance storage containers for low temperature liquid nitrogen media, manufactured from high quality stainless steel. The self-pressurised series of liquid nitrogen tanks consist of a control structure and a tank body. The control components are mainly inlet (discharge) valves, emptying valves, pressurisation valves, safety valves, level gauges, pressure gauges and castors. All models in this series are equipped with four mobile universal castors to facilitate the use and movement of the containers in different places. They are currently widely used in industries and fields such as the mould industry, animal husbandry, pharmaceuticals, semiconductors,
food, aerospace and cryogenic chemicals.


-196 Degree 370 Liters Liquid Nitrogen Tanks Stainless Steel For Biological Storage

-196 Degree 370 Liters Liquid Nitrogen Tanks Stainless Steel For Biological Storage

-196 Degree 370 Liters Liquid Nitrogen Tanks Stainless Steel For Biological Storage

-196 Degree 370 Liters Liquid Nitrogen Tanks Stainless Steel For Biological Storage
