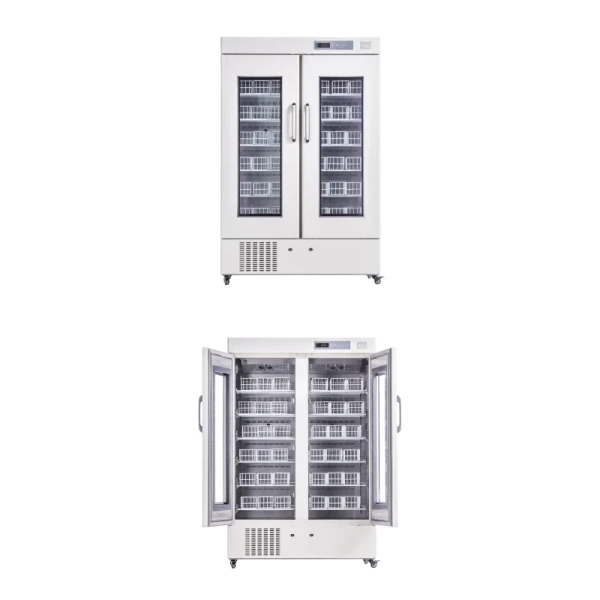

MBC-4V658 4℃ Blood Bank Refrigerator

Designed for precision, reliability, and optimal blood storage

The MBC-4V658 Blood Bank Refrigerator is specially designed for storing blood bags and blood-derived products. Featuring a 304 stainless steel interior and a 658L capacity, this refrigerator offers a secure and stable environment for blood storage, capable of holding up to 360 units of 450ml blood bags. It ensures accurate temperature management, making it an ideal choice for medical and laboratory applications.

Key Features:

• Precise Temperature Control: Equipped with a microprocessor controller to ensure a stable 4℃ ± 1℃ temperature, providing optimal conditions for blood storage.
• Forced-Air Cooling System: Designed with a specialized cooling system to ensure uniform temperature distribution and frost-free operation.
• 304 Stainless Steel Interior: Easy to clean and corrosion-resistant, ensuring durability and long-lasting performance.

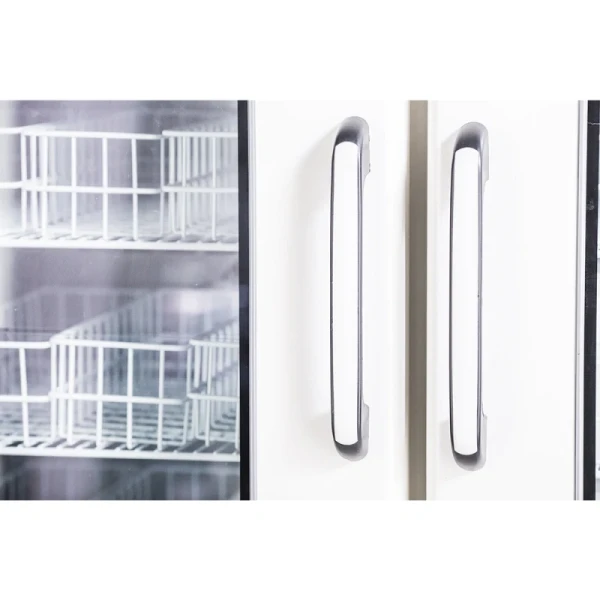

• Heated Glass Door: The three-layer toughened glass door comes with a heater to prevent condensation, offering clear visibility and maintaining temperature stability.
• Digital Display: Large digital display screen for easy monitoring of internal temperature in real-time.

Safety Features:

• Safety Door Lock & Password Protection: Prevents unauthorized access, ensuring the security of the stored blood.
• Backup Battery: The built-in backup battery ensures continued temperature display and operation of alarms for up to 8 hours during power outages.
• Internal Doors & Auto Cooling Fan: Prevents cold air leakage when the door is opened, improving energy efficiency.
• Comprehensive Alarm System: Includes high/low temperature alarms, power failure alarm, sensor error alarm, door ajar alarm, and backup battery malfunction alarm.
• Power Failure Protection: Delayed start-up of the cooling system after a power failure, preventing sudden temperature fluctuations.
• Temperature Printer: Automatically prints the current internal temperature every 15 minutes for monitoring purposes.

Humanized Design:

• Easy Mobility: Equipped with 4 casters with stoppers for easy movement and stability.
• Adjustable Shelves & Blood Baskets: Comes with 12 adjustable dip shelves and 36 blood baskets for convenient storage and access.
• Service-Free Drainage System: Specially designed to ensure no water buildup inside the cabinet.
• Temperature Monitoring: 25mm test hole for easy connection to external temperature monitoring systems.
• LED Lighting: Automatic on/off LED light with manual control for better visibility inside the refrigerator.

Technical Specifications:

• Cooling System: Forced-Air Cooling, Auto Defrost
• Refrigerant: R134a
• Power Consumption: 6.31 kWh/24h
• Noise Level: 51.2 dB(A)
• Temperature Range: 4±1°C
• Power Supply: 220V/50Hz
• Dimensions:
  • Exterior: 1225 x 640 x 1895 mm
  • Interior: 1100 x 454 x 1325 mm
  • Packaging: 1330 x 740 x 2120 mm
• Capacity: 658L
• Blood Bags (450ml): 360 units
• Weight: 202kg Net / 257kg Gross

Certifications:

• ISO9001, ISO13485, ISO14001, CE Certified

4ºC Blood Bank Refrigerator

Promed blood bank refrigerator are specially designed to store blood bags and blood-derived products.

HOT TIPS

• Large storage capacity 66*450ml blood bags
• Individual Arcylic inner doors
• blood bags Reliable control system 4±1°C
• Forced-air cooling system, frost-free
• Build-in back-up battery: 72 hours power failure alarm
• Wide voltage range, 187V~242V available
• 5 visual and audible alarms

Features

• Accurate microprocessor controller to ensure consistent cabinet temperature 4±1°C
• Specially designed forced-air cooling system to ensure frost-free cabinet and good temperature uniformity
• Three layer toughened glass door with heater to avoid condensation
• 304 stainless steel inner chamber for friendly using and easy cleaning
• Wide available voltage range: 187V~242V

SAFETY GUARANTEE

• Safety door lock and controller setting password to prevent unauthorized access
• Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 72 hours without AC power
• Inner doors and auto on/off cooling fan to prevent cold air from leaking out when the door is opening
• Visual and audible alarm system: High/low temperature, power failure, sensor error, door ajar, low battery.
• Power failure protection: turn on delay of the cooling system after power failure
• Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when controller or two sensor failed
• Temperature printer: print current inside temperature automatically per 10 minutes

Humanized design

• 4 casters with stopper for easy moving and fixation
• 4 adjustable shelves and 12 blood baskets for easy using
• Special designed service-free drainage system ensure no water in the cabinet
• Standard 25mm test hole for easy connecting to temperature monitoring systems
• Automatic on/off LED light with manual switch on control panel

REFRIGERATION SYSTEM

• Imported brand compressor work with CFC-Free environmental refrigerant.
• High density insulation foam layer with better heat preservation effect.

	Model	MBC-4V658
Specificaitons	Shelf/drawer	Shelves/12
	Cooling	Forced -air Cooling
	Defrost	Auto
	Refrigerant	R134a
	Power consumption(kWh/24h)	6.31
	Noise(db)	51.2 dB(A)
	Ambient temperature(ºC)	10~32ºC
	Temperature range(ºC)	4±1ºC
Cooling system	Compressor brand/QTY	SECOP/1
	Sensor	NTC
	Temperature controller	Microprocessor
	Display	Digital display
Power	Voltage/frequency(V/Hz)	220/50Hz
	Power(W)	364W
	Current(A)	2.42A
Material	Inside material	Stainless steel
	Outside material	Color sprayed steel
	Insulation	PURF
Size	Capacity(L/cu.ft)	658/23.23
	Bloodbags(450ml)	360
	NT./GT.(kg)	202/257
	Exterior size(W*D*H)(mm)	1225*640*1895
	Interior size(W*D*H)(mm)	1100*454*1325
	Package size(W*D*H)(mm)	1330*740*2120
	CBM	2.09
	20GP/40GP/40HQ	12/27/27
Alarm	High/low temperature	Y
	Power off	Y
	Temperature controller malfunction	Y
	Backup battery malfunction	Y
	Ambient temperature	10~32ºC
	Power failure backup system(alarm)	8h
Accessories	Caster	Y
	Outer door/Type	2/Heating & Foam glass door
	Inner door	6
	Test hole	1/25MM
	Thermal Printer	Y
	Light	LED
	Temperature recorder	Optional
Other	Qualifications	ISO9001,ISO13485,ISO14001,CE
