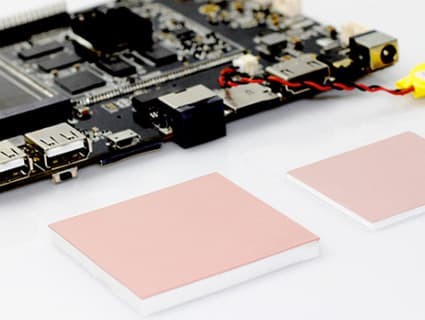

Tear Resistant Soft Thermal Pads
Tear Resistant Soft Thermal Pads
Tear Resistant Soft Thermal Pads
Tear Resistant Soft Thermal Pads
Specifications
Brand Name :
AOK
Model Number :
UTP100
Certification :
RoHS, Reach, UL
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
T/T
Delivery Time :
13-15working days
Packaging Details :
400mmx200mm
Product name :
Ultra Soft Thermal Pad
Color :
White and Brick Red
Composition :
Ceramic Filler, Silicone, and Reinforced Fiberglass
Thickness :
0.5~12.0 (mm)
Density :
2.5(g/cc)
Hardness :
30±5(Shore OO)
Description

Ultra Soft Thermal Pad low permeability oil gap filler with 1.0W/m.K

Attribute Value Test Method
Composition Ceramic Filler, Silicone, and Reinforced Fiberglass -
Color White and Brick Red Visual
Thickness(mm) 0.5~12.0 ASTM D374
Density(g/cc) 2.5 ASTM D792
Hardness(shore oo) 30±5 ASTM D2240
Tensile Strength(KN/m) 2.5 ASTM D624
Elongation(%) 60 ASTM D412
Usage Temperature(℃) -40~150 --
Electrical
Breakdown Voltage(kv/mm) ≥7.0 ASTM D149
Dielectric Constant(@10mhz) 5.7 ASTM D150
Volume Resistivity(Ω.cm) 1.0*1013 ASTM D257
Flammability V-0 UL94
Thermal
Thermal conductivity(W/m.K) 1.0±0.1 ASTM D5470

Product feature:
■ Thermal Conductivity:1.0 W/m.K
■ Ultra soft and highly compliant

■ the material is soft, good compression performance, good thermal insulation performance, adjustable thickness range is relatively large, suitable for filling the cavity, both sides have natural viscosity, operability and maintainability;

■ The main purpose of the thermal conductive silica gel piece is to reduce the thermal resistance generated between the heat source surface and the contact surface of the heat dissipation device. The thermal conductive silica gel piece can fill the gap of the contact surface well.

Typical applications:
■ Networking and Telecommunications
■ IT: Notebooks, Tablets, Power Conversion
■ IT: Industrial: LEDs, Power Supplies and Conversion

Purchase information:

Standard size: 200*400mm, which can be die-cut into various sizes and shapes as specified by customers. The increasing gradient of thickness is 0.25mm
