Specifications
Brand Name :
AGSONIC
Model Number :
TB-150
Certification :
CE
Place of Origin :
China
MOQ :
1UNIT
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
1000pcs / Month
Delivery Time :
10working days
Packaging Details :
wooden case
Material :
Stainless steel 304
Application :
Lab Equipment
Option :
Ultrasonic Cleaning
Frequency: :
40KHz
Timer: :
1-30Minutes
Voltage: :
110/220V
Tank Capacity: :
3.2L
Used :
10LStainless Steel Automatic
Description

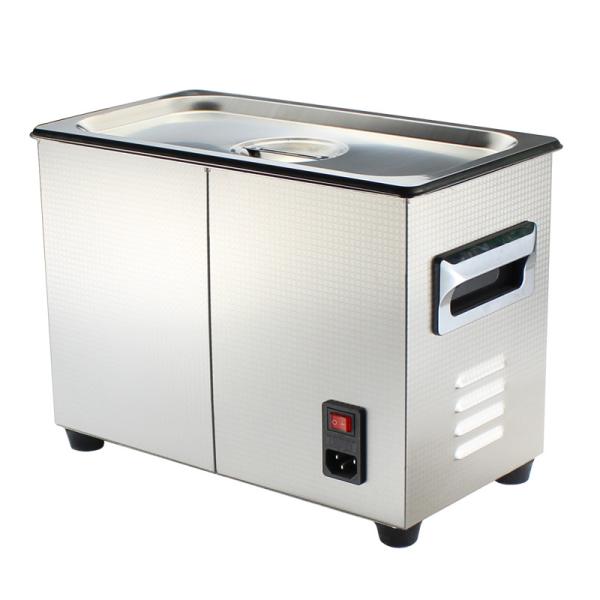

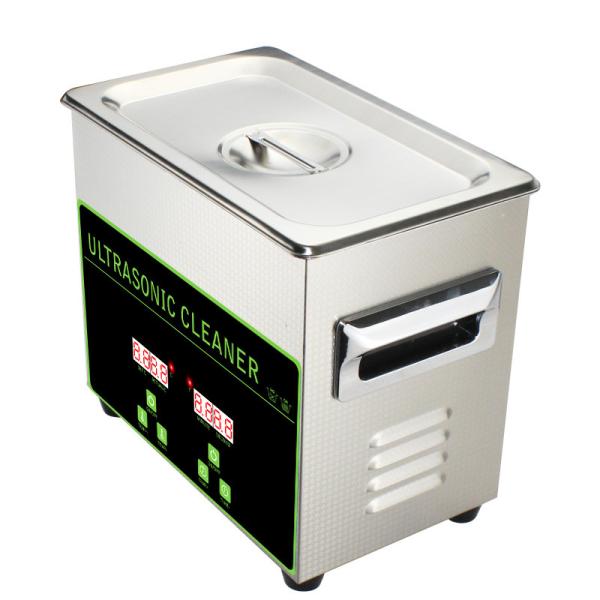

Lab Equipment Ultrasonic Cleaner 3.2L Digital Degas Stainless Steel Madical

Ultrasonic cleaning equipment in Automotive Servicing

AGSONIC Ultrasonic cleaning is a fast and highly efficient way for cleaning automotive parts, our equipment will remove grease, oil, lubricants and many other contaminants that are commonly found on automotive components. This includes radiators, gearboxes, inter-coolers, brake callipers, carburettors, cylinder heads, paint guns and many more.

we have supplied our ultrasonic cleaning systems to numerous Motor Racing companies, Classic Car Restorers, professional garage as well as part-time enthusiasts.

Why is Ultrasonic Cleaning so Efficient and Effective?

When cavitation happens near a dirty object, the vacuum action produced by those million of bubbles constantly imploding creates a tiny pressure wave that reaches deep into every nook and cranny of even the most delicate items. This tiny pressure wave dislodges and breaks up the dirt and other contaminants and gently lifts it away. The result is very fast and effective cleaning.

How AGSONIC Ultrasonic Machines Create Cavitation

To create cavitation, AGSONIC Ultrasonic Cleaning Systems use our state-of-the-art Prowave™ Digital Generators to power electro-mechanical transducers that are submerged in a tank of hot water. These generators activate the transducers which then vibrate very quickly. This vibration sends sound waves through the water at frequencies ranging from 25 to 40kHz which produces cavitation.

Other models for your choice:

Model Tank size Unit size Volume Actual ultrasonic power Rated ultrasonic power Ultrasonic frequency Heating power Time Heater
LxWxH(mm) LxWxH(mm) (L) (W) (W) (kHz) (W) (MIN) (℃)
TB-50 150x135x100 175x160x210 2 50 60 40 150 1-30 0-80
TB-100 240x135x100 265x165x220 3.2 100 120 150
TB-150A 300x150x100 325x180x225 4.5 150 180 300
TB-150B 300x150x150 325x180x280 6.5 150 180 300
TB-200 300x240x150 325x265x280 10.8 200 240 450
TB-300 330x300x150 360x325x285 15 300 360 450
TB-400 500x300x150 530x325x285 22 400 480 600
TB-500 500x300x200 530x325x325 30 500 600 600

Features:

1. Ultrasonic power: 0-100% adjustable

2. Time setting: 0-30min or 24 hours continuous working

3. Heating: 20-80℃ adjustable

4: Ultrasonic frequency: 28 kHz or 40 kHz

5: Material: 2mm thickness SUS304 tank for acid-proof.

6: Improved PCB design for stable and durable industrial use

7: More strong and uniform ultrasonic wave

8: With free lid and stainless steel SUS304 basket

CAVITATION *

knowledge about ultrasonic cleaning and that the ultrasonic

generator and transducer are required to produce cavitation in an ultrasonic cleaning bath and that it is the scrubbing force found in ultrasonic cleaning, how is it formed?

To develop a cavitation event we must transmit a high intensity pressure wave from the transducer into a liquid with enough amplitude so as to tear the liquid apart in the rarefaction half cycle and drop the pressure

within the liquid below its point of vaporization. When this has been achieved we will develop millions of minute vacuum bubbles called cavitation events. Every half cycle we develop these vacuum bubbles which store their developing energy and then collapse or implode in the compression half cycle releasing their energy. This causes the shear forces they release to break the bonds holding a particle to the item being cleaned. At 40 KHz this cleaning cycle will repeat itself 40,000 times a second.

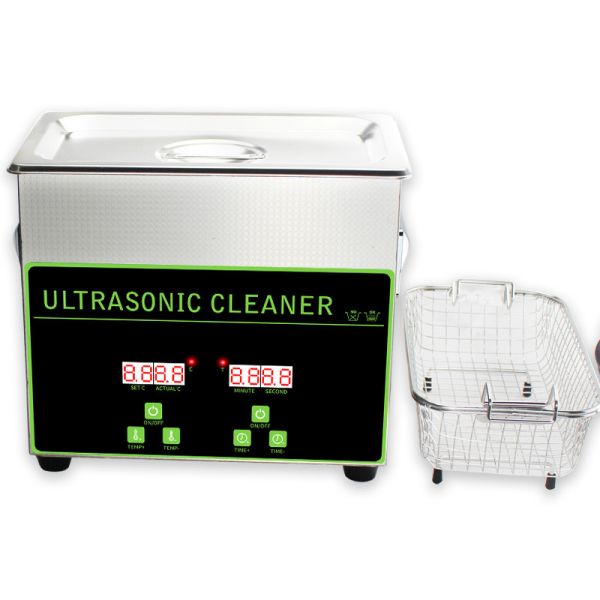

Lab Equipment Digital Ultrasonic Cleaner 3.2L Degas Stainless Steel Madical Type

Lab Equipment Digital Ultrasonic Cleaner 3.2L Degas Stainless Steel Madical Type
