Specifications
Brand Name :
AGSONIC
Model Number :
TB-500
Certification :
CE
Place of Origin :
China
MOQ :
1UNIT
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
1000pcs / Month
Delivery Time :
10working days
Packaging Details :
wooden case
Material :
Stainless steel 304
Option :
Turbine Fuel Nozzle
Frequency: :
Ultrasonic Parts Cleaner 30L
Timer: :
1-30Minutes
Voltage: :
110/220V
ultrasonic Power :
500W
Description

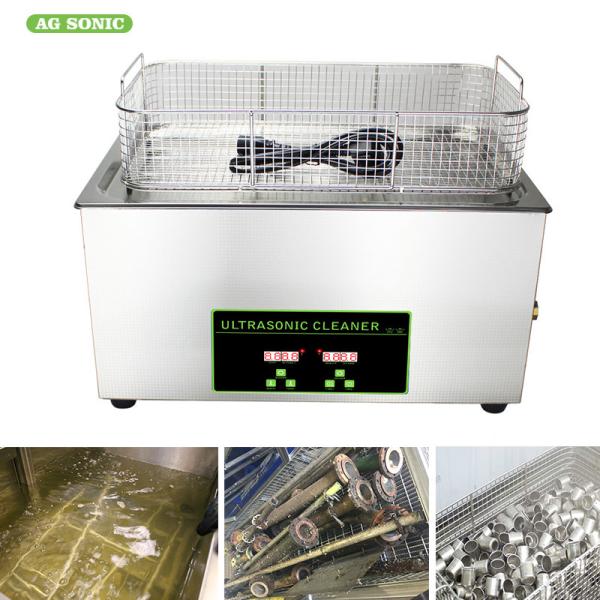

40KHz Industrial Ultrasonic Parts Cleaner 30L Tanks For Turbine Fuel Nozzle Oil Filter

ULTRASONIC CLEANING

Ultrasonic cleaning uses sound waves to create millions of small bubbles in a tank of cleaning solution. The parts to be cleaned are submerged in the solution and as the bubble are formed and “explode” they remove any dirt, grease, carbon etc. This method also works very well. The one disadvantage that I noticed with ultrasonic cleaning is that aluminum parts do not come out of the cleaning tank looking like new. They seem to have some discoloration to them even though they were clean. If you are going to paint the parts then this shouldn't matter.


We are the manufacturers of custom built Ultrasonic Cleaning machines for degreasing and cleaning of auto parts for OEMs , work shops , job works and auto-restoration industry. We expertise in providing customized designed solution for auto parts cleaning.
Ultrasonic cleaning is a water based cleaning solution where ultrasonic transducers are used to provide cavitation agigation insude the tank which has waer and suitable chemical to clean oil,dirt,debree,grease and other contaminants from various types of auto components.
We expertise in all types of ancilary parts washing like brakepads, steering coloumns, crank shats, pistons, valves, gaskets, clutch pads, mirrors and many more.

An ultrasonic injector cleaner and injector flow bench.

The preferred method of cleaning injectors. Cycles the fuel injectors while the fuel injector tips are immersed in an ultrasonic bath, which uses an environmentally friendly cleaning fluid to clean the fuel injectors. The flow bench portion also allows a user to perform a flow test before and after cleaning, and it allows the user to observe the fuel injector spray pattern. This method requires that the fuel injectors be removed from the engine

How do I get the best ultrasonic cleaning?
There are many considerations important to ultrasonic cleaning. Optimising these variables will produce the best cleaning. The most important decisions to be made are choosing the proper cleaning solution, cleaning at the right temperature for the correct amount of time, and choosing the right size and type of ultrasonic cleaner.

Is a special solution required for cleaning?
Soils adhere to the parts... if they didn't, the soil would just fall off the parts! The purpose of the solution is to break the bonds between parts and their soils. Water alone has no cleaning properties. The primary purpose of the ultrasonic activity (cavitation) is to assist the solution in doing its job. An ultrasonic cleaning solution contains various ingredients designed to optimise the ultrasonic cleaning process. For example, increased cavitation levels result from reduced fluid surface tension. An ultrasonic solution will contain a good wetting agent or surfactant.

Industrial Ultrasonic Parts Cleaner

Using aqueous (water based) detergents, AGSONIC ultrasonic equipment effectively removes oil, swarf and other contaminants from machine parts, tooling, jigs, tubes and many others. This maximises throughput, increasing productivity and eliminating needs for re-cleans, which makes it one of the most effective and environmentally friendly ways for cleaning these parts and components.

applications including the following and more:

Automotive Maintenance, Rebuilding and Restoration

Flood, Fire and Storm Damage Cleanup

Metallic and Ceramic Filter Cleaning

Printing Equipment Maintenance

General Maintenance Cleaning in Shop Environments

Medical Precision Cleaning

30l Ultrasonic cleaner Specifications:

Other models for your choice:

Model Tank size Unit size Volume Actual ultrasonic power Rated ultrasonic power Ultrasonic frequency Heating power Time Heater
LxWxH(mm) LxWxH(mm) (L) (W) (W) (kHz) (W) (MIN) (℃)
TB-50 150x135x100 175x160x210 2 50 60 40 150 1-30 0-80
TB-100 240x135x100 265x165x220 3.2 100 120 150
TB-150A 300x150x100 325x180x225 4.5 150 180 300
TB-150B 300x150x150 325x180x280 6.5 150 180 300
TB-200 300x240x150 325x265x280 10.8 200 240 450
TB-300 330x300x150 360x325x285 15 300 360 450
TB-400 500x300x150 530x325x285 22 400 480 600
TB-500 500x300x200 530x325x325 30 500 600 600
