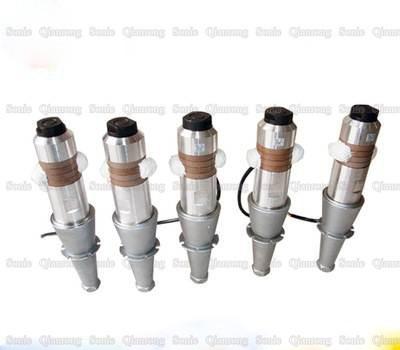

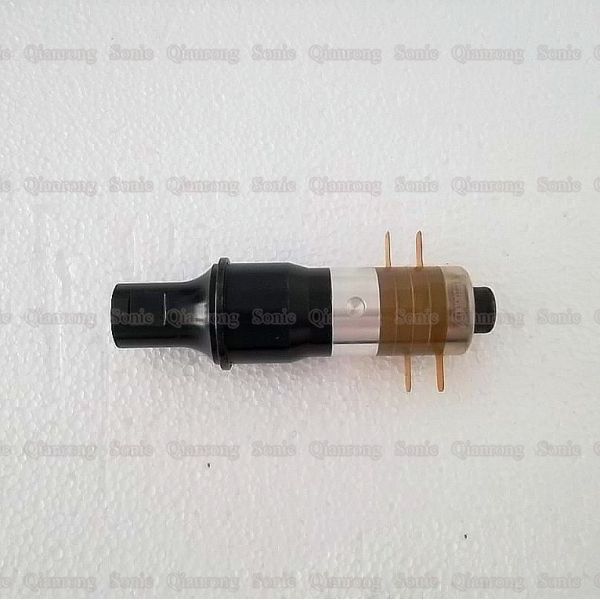

500W Cutting 40khz Ultrasonic Transducer With Booster 30mm Ceramic Disc High Stability
500W Cutting 40khz Ultrasonic Transducer With Booster 30mm Ceramic Disc High Stability
500W Cutting 40khz Ultrasonic Transducer With Booster 30mm Ceramic Disc High Stability
500W Cutting 40khz Ultrasonic Transducer With Booster 30mm Ceramic Disc High Stability
500W Cutting 40khz Ultrasonic Transducer With Booster 30mm Ceramic Disc High Stability
500W Cutting 40khz Ultrasonic Transducer With Booster 30mm Ceramic Disc High Stability
500W Cutting 40khz Ultrasonic Transducer With Booster 30mm Ceramic Disc High Stability
500W Cutting 40khz Ultrasonic Transducer With Booster 30mm Ceramic Disc High Stability
Specifications
Brand Name :
QRsonic
Model Number :
QR-3040-4BZ-II
Certification :
CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotation
Payment Terms :
T/T, Western Union
Supply Ability :
2000pcs per month
Delivery Time :
3 workdays
Packaging Details :
Packed in carton
Products Name :
Ultrasonic Oscillator
Output Power :
500w
Frequency :
40khz
Ceramic disc Diameter :
30mm
Qty of ceramic discs :
4pcs
Capacitance :
5.1-7.5nf
Description

High Stability 40Khz 500W Ultrasonic Cutting Transducer with Booster​

Description:

The ultrasonic Oscillator is also called the ultrasonic vibrator. The whole of the industry is connected to the horn and the horn is called a vibrator. The ultrasonic vibrator is a device that converts electrical energy and mechanical energy (acoustic vibration) by piezoelectric effect of piezoelectric ceramics, and amplifies the front and rear radiation cover blocks by acoustic impedance matching.

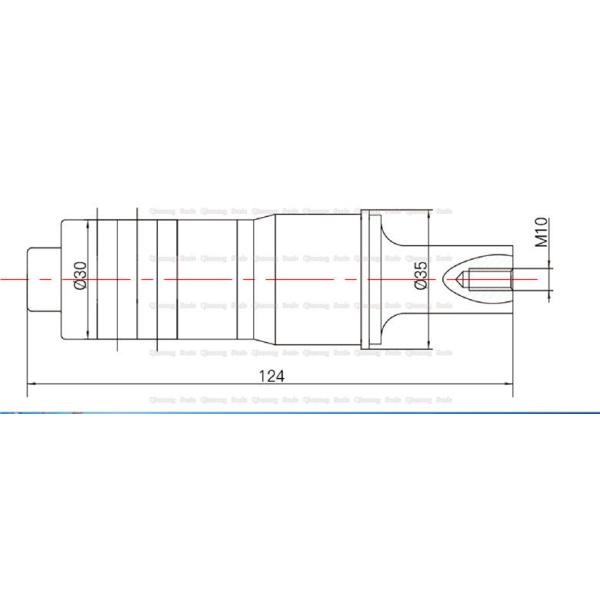

Specifications:

Model QR-3040-4BZ-II
Frequency 40khz
Output power 500 watt
Ceramic disc Diameter 30mm
Qty of ceramic discs 4pcs
Capacitance 5.1-7.5nf
Application Ultrasonic Cutting machine

Components of the ultrasonic welder:

The ultrasonic welding machine is mainly composed of the following parts: a generator, a pneumatic part, a program control part, and a transducer part.

The main function of the generator is to convert the power supply of the power frequency 50HZ into a high-frequency (for example, 20KHZ) high-voltage electric wave by using an electronic circuit.

The main function of the pneumatic part is to complete the pressure, pressure and other pressure work needs during the processing.

The program control part controls the workflow of the entire machine to achieve consistent processing results.

The transducer part converts the high-voltage electric wave generated by the generator into mechanical vibration, which is transmitted, amplified, and reaches the machined surface.

High Stability 40Khz 500W Ultrasonic Cutting Transducer with Booster
