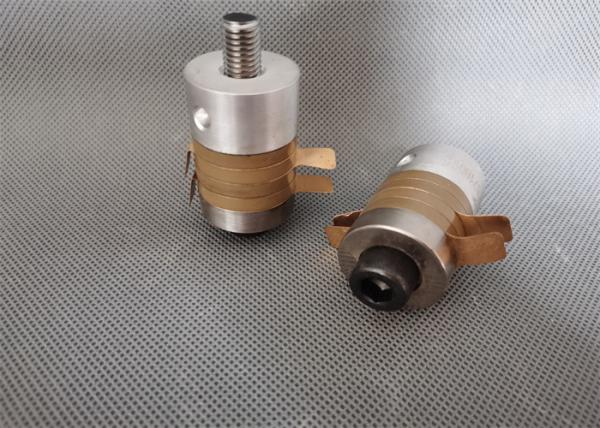

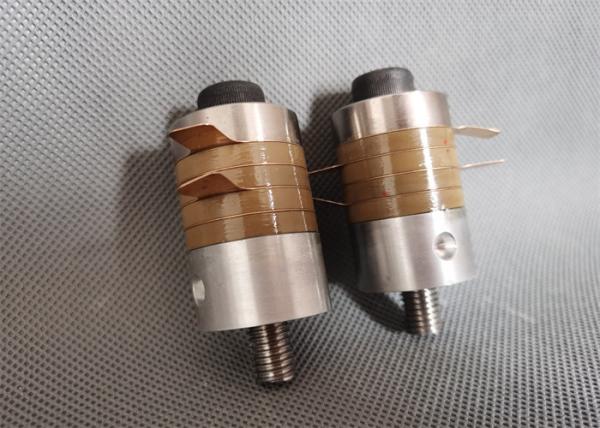

Column Type 40Khz Ultrasonic Transducer 500w With PZT8 Ceramics
Column Type 40Khz Ultrasonic Transducer 500w With PZT8 Ceramics
Column Type 40Khz Ultrasonic Transducer 500w With PZT8 Ceramics
Column Type 40Khz Ultrasonic Transducer 500w With PZT8 Ceramics
Column Type 40Khz Ultrasonic Transducer 500w With PZT8 Ceramics
Column Type 40Khz Ultrasonic Transducer 500w With PZT8 Ceramics
Column Type 40Khz Ultrasonic Transducer 500w With PZT8 Ceramics
Column Type 40Khz Ultrasonic Transducer 500w With PZT8 Ceramics
Specifications
Brand Name :
QRsonic
Model Number :
QR-3040-4BZ
Certification :
CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotation
Payment Terms :
T/T, Western Union
Supply Ability :
2000pcs per month
Delivery Time :
3 workdays
Packaging Details :
Packed in carton
Products Name :
Ultrasonic Cutting Transducer
Frequency :
40 khz
Output power :
500 watt
Joint bolt :
M10
Ceramic disc Diameter :
30mm
Ceramic discs :
PZT8
Capacitance :
5.1-7.5nf
Amplitude :
4um
Description

Column Type 40Khz Ultrasonic 500w Transducer with PZT8 Ceramics

Description:

Ultrasonic transducer is a very important part of ultrasonic welding equipment, which undertakes the energy conversion function of the equipment, so the quality and suitability of the ultrasonic transducer have a great influence on the equipment. Ultrasonic transducer is a kind of energy conversion device. It is a sensor developed by using the characteristics of ultrasonic waves. The piezoelectric effect of the material converts electrical signals into mechanical vibration. Ultrasonic transducer is an energy conversion device. The function is to convert the input electric power into mechanical power (ultrasound) and then transmit it, and it consumes a small part of the power.

Specifications:

Model QR-3040-4BZ
Frequency 40khz
Output power 500 watt
Joint bolt M10
Ceramic disc Diameter 30mm
Qty of ceramic discs 4pcs
Capacitance 5.1-7.5nf
Amplitude 4 um
Application Plastic welding machine

Parameters:

The columnar type NTK TYPE

Item No.

Connect screw

Ceramic dia (mm)

 Qty of Ceramic (pc)

Frequency (khz)

 Capacitance

power (W)
Yellow Grey Black
7015-4BZ M20 X 1.5 70 4 15 12500-14000 17000-19000 2600
6015-4BZ M20 X 1.5 60 4 15 8000-10000 10000-12000 12500-13500 2200
6015-6BZ M20 X 1.5 60 6 15 14000-16000 19500-21000 2600
5015-4BZ M18 X 1.5 50 4 15 12000-13000 13000-14300 15000-17000 1500
4015-4BZ M16 X 1 40 4 15 10000-11000 10500-11500 700
5520-4BZ M18 X 1 55 4 20 10000-11000 10500-11500 14300-20000 2000
5020-6BZ M18 X 1.5 50 6 20 18500-20000 22500-25000 2000
5020-4BZ M18 X 1.5 50 4 20 11000-13000 13000-15000 15000-17000 1500
5020-2BZ M18 X 1.5 50 2 20 6000-6500 6500-7000 8000-9000 800
5020-4CZ M18 X 1.5 50 4 20 11000-12000 13000-14000 14500-16000 1500
5020-4HZ M18 X 1.5 50 4 20 11000-12000 1500
5020-4BL M18 X 1.5 50 4 20 11000-12500 1500
4020-4BZ 1/2-20UNF 40 4 20 9000-10000 9500-11000 900
4020-2BZ 1/2-20UNF 40 2 20 4800-5500 500
3820-4BZ 1/2-20UNF 38 4 20 6500-7500 800
The columnar type NTK TYPE

Item No.

Connect screw

Ceramic dia (mm)

 Qty of Ceramic (pc)

Frequency (khz)

 Capacitance

power (W)
Yellow Grey Black
5025-2BZ M12 X 1 50 2 25 5000-5600 7000-8000 500
3828-2BZ 1/2-20UNF 38 2 28 3800-4300 500
3828-4BZ 1/2-20UNF 38 4 28 7600-8500 10500-12000 800
3028-2BZ 3/8-24UNF 30 2 28 2700-3100 3400-3800 400
3028-4BZ M10*1 30 4 28 6000-7000 700
2528-4FZ M8 X 1 25 4 28 3900-4300 400
2528-2FZ M8 X 1 25 2 28 1950-2200 2200-2500 300
3030-4BZ M10 30 4 30 6200-6900 700
3035-2FZ 3/8-24UNF 30 2 35 2700-3100 500
3035-4BZ M10 X 1 30 4 35 5000-6200 800
2535-2FZ M8 X 1 25 2 35 1900-2200 400
2540-2BZ 3/8-24UNF 25 2 40 2000-2300 500
3040-4BZ M10 30 4 40 5500-6200 1000
3050-4BZ M8 30 4 50 5500-6200 600
1560-2BZ M6 X 0.75 15 2 60 700-800 100
