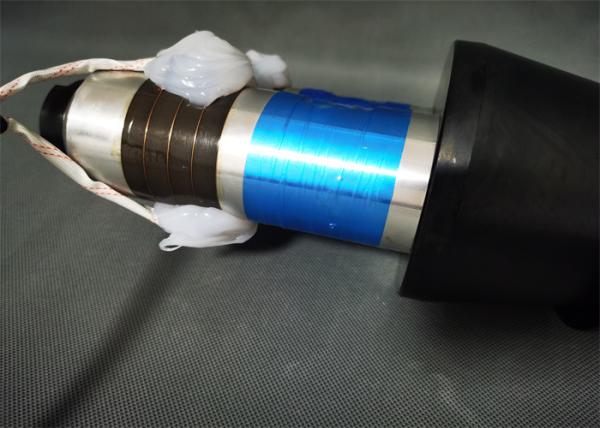

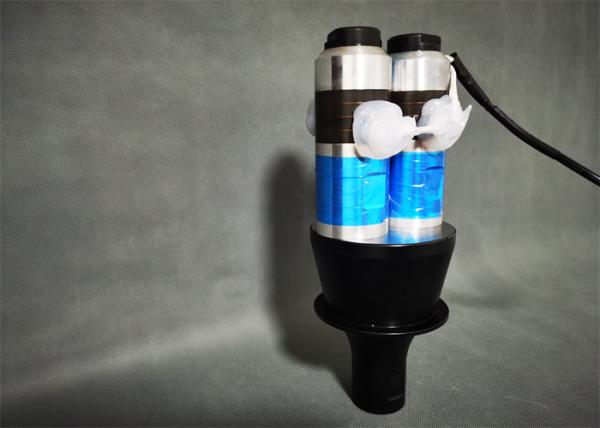

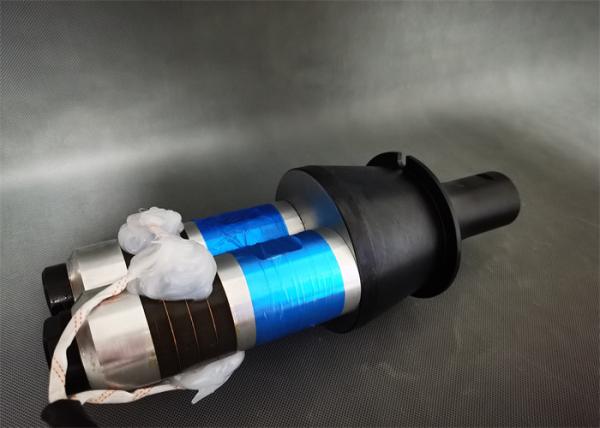

15Khz Ultrasonic Transducer With Booster For 4200w Ultra Plastic Welding Equipment
15Khz Ultrasonic Transducer With Booster For 4200w Ultra Plastic Welding Equipment
15Khz Ultrasonic Transducer With Booster For 4200w Ultra Plastic Welding Equipment
15Khz Ultrasonic Transducer With Booster For 4200w Ultra Plastic Welding Equipment
15Khz Ultrasonic Transducer With Booster For 4200w Ultra Plastic Welding Equipment
15Khz Ultrasonic Transducer With Booster For 4200w Ultra Plastic Welding Equipment
15Khz Ultrasonic Transducer With Booster For 4200w Ultra Plastic Welding Equipment
15Khz Ultrasonic Transducer With Booster For 4200w Ultra Plastic Welding Equipment
Specifications
Brand Name :
QRsonic
Model Number :
QR-6015-4BZ-LS
Certification :
CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotation
Payment Terms :
T/T, Western Union
Supply Ability :
2000pcs per month
Delivery Time :
3 workdays
Packaging Details :
Packed in carton
Products Name :
Ultrasonic Transducer with Booster
Output Power :
4200w
Frequency :
15khz
Ceramic disc Diameter :
60mm
Qty of ceramic discs :
8pcs
Capacitance :
18-22nf
Connected Screw :
M16*1
Application :
Ultrasonic plastic welding machine
Description

15Khz Ultrasonic Transducer with Booster for 4200w Ultra Plastic Welding Equipment

Description:

Ultrasonic vibrator, also known as ultrasonic vibrating head, ultrasonic Oscillator head, is a kind of ultrasonic transducer, which is the core component of ultrasonic machine. The whole of the ultrasonic transducer connected to the horn is called vibrator.

Ultrasonic Booster (ultrasonic horns), as the name suggests, are functional components that match the amplitude of ultrasonic vibrations with ultrasonic transducers. Its main function is to change the amplitude of the transducer (generally increase), improve the vibration ratio, improve the efficiency, improve the mechanical quality factor, enhance the heat resistance, expand the temperature range, and extend the service life of the transducer. The ultrasonic transducer adjusts the load matching between the transducer and the ultrasonic tool head by installing a horn (ultrasonic horn), which reduces the resonance impedance and makes it work at the resonant frequency to improve the electro-acoustic conversion efficiency. Reduces the heat generation of the ultrasonic transducer and increases the service life.

Specifications:

Model QR-6015-4BZ-LS
Frequency 15 khz
Output power 4200 watt
Joint bolt M16*1
Ceramic disc Diameter 60mm
Qty of ceramic discs 8pcs
Capacitance 18-22nf
Application Plastic welding machine

Parameters:

Item No.

Connect screw (Size)

Ceramic diameter (mm)

Quantity of Ceramic (pc)

 Capacitance

Input power (W)
Yellow Grey Black
6015-4BZ-BZ M16 *1 60 4 9000-10000 10000-11000 12500-13500 2600
6015-4BZ-LR M16 *1 60 4 9000-10000 10000-11000 12500-13500 2600
6015-4BZ-RS M16 *1 60 4 9000-10000 10000-11000 12500-13500 2600
7015-4BZ-BZ M16 *1 70 4 12500-14000 / / 3600
6015-4BD-BZ M16 *1 60 4 9000-10000 10000-11000 / 2600
6015-6BD-BZ M16 *1 60 6 19000-20500 / 23000-25000 3600
7015-4BD-BZ M16 *1 70 4 12500-14000 / / 3600
6015-4BZ-LS M16 *1 60 8 18000-20000 20000-22000 / 4200
4515-4YZ-SS M16 *1 45 8 / / 25000-27000 2400
4515-4JZ-SS M16 *1 45 8 19000-21000 / / 2800
5015-4BZ-SZ M16 *1 50 8 22000-24000 / / 3600
5020-4CZ-BJ 3/8-24UNF 50 4 11000-12000 13000-14000 14500-16000 1500
5020-4BZ-BJ 3/8-24UNF 50 4 11000-12000 13000-14000 14500-16000 1500
5520-4BZ-BJ 3/8-24UNF 55 4 10500-11500 / / 1800
5020-4BZ-BZ 3/8-24UNF 50 4 11000-12000 13000-14000 14500-16000 1500
5020-4HZ-BJ 3/8-24UNF 50 4 / / 11000-12000 1500
3820-4BZ-SS 3/8-24UNF 38 8 13000-14500 / / 1800
5020-4BZ-LS 1/2-20UNF 50 8 23000-25000 26000-28000 / 2800
3028-2BZ-BT / 30 2 2800-3300 3300-3800 / 400
3828-4BZ-BJ M8*1 38 4 7200-8200 / 10000-12000 800
3828-4BZ-BJL M8*1 38 4 7200-8200 / 10000-12000 800
3828-2BZ-BJL M8*1 38 2 3700-4200 / / 500
3030-4BZ-SJL M10 30 4 / 6200-7200 / 700
3030-4BZ-LJL M10 30 4 / 6200-7200 / 700
3030-4BZ-BJ M8 30 4 / 6200-7200 / 700
3535-4BD-II M8 35 4 6600-7400 / 9200-10200 800
3035-4BZ-BJL M8 30 4 5500-6200 / / 700
3040-4BZ-BJ M8 30 4 5100-5800 / 6500-7500 500
1560-2BZ-BJ / 15 2 / / 700-850 100
1070-2BZ-BJ / 10 2 700-800 / / 100

15Khz Ultrasonic Transducer with Booster for 4200w Ultra Plastic Welding Equipment
