Specifications
Brand Name :
QRsonic
Model Number :
QR-6015-4BZ-LS
Certification :
CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotation
Payment Terms :
T/T, Western Union
Supply Ability :
2000pcs per month
Delivery Time :
3 workdays
Packaging Details :
Packed in carton
Products Name :
Ultrasonic Double Oscillator
Output Power :
4200w
Frequency :
15khz
Ceramic disc Diameter :
60mm
Qty of ceramic discs :
8pcs
Capacitance :
18-22nf
Connected Screw :
M16*1
Application :
Ultrasonic plastic welding machine
Description

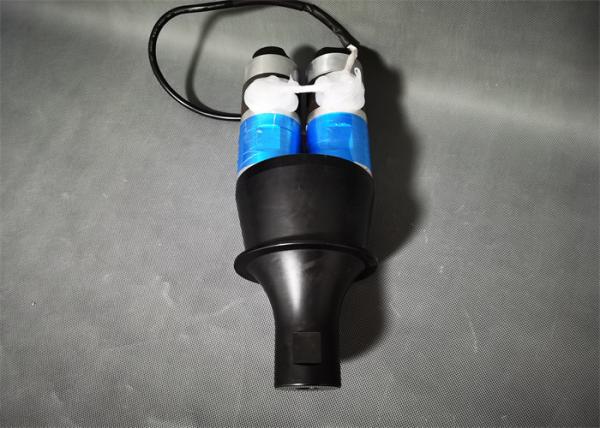

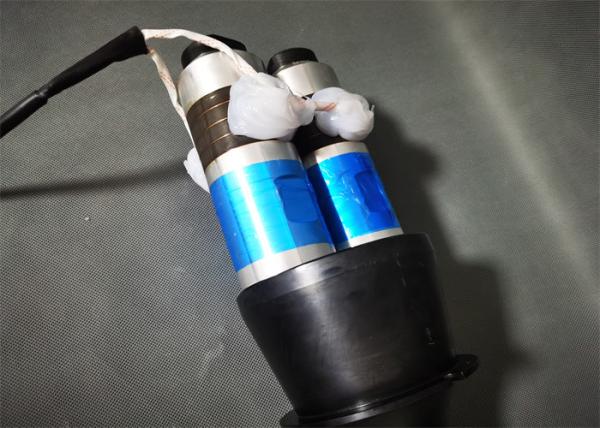

4200w Double Welding Converter Ultrasonic Oscillator with 70mm Black Ceramic

Description:

The ultrasonic vibrator is composed of an ultrasonic transducer and booster. Ultrasonic transducer is a device that can convert high-frequency electrical energy into mechanical energy. The main function of ultrasonic booster in vibration system is to amplify the mass displacement or velocity of mechanical vibration and concentrate ultrasonic energy on a small area. It is called the ultrasonic shifting lever or the ultrasonic concentrator.

Specifications:

Model QR-6015-4BZ-LS
Frequency 15 khz
Output power 4200 watt
Joint bolt M16*1
Ceramic disc Diameter 60mm
Qty of ceramic discs 8pcs
Capacitance 18-22nf
Application Plastic welding machine

Parameters:

Item No.

Connect screw (Size)

Ceramic diameter (mm)

Quantity of Ceramic (pc)

 Capacitance

Input power (W)
Yellow Grey Black
6015-4BZ-BZ M16 *1 60 4 9000-10000 10000-11000 12500-13500 2600
6015-4BZ-LR M16 *1 60 4 9000-10000 10000-11000 12500-13500 2600
6015-4BZ-RS M16 *1 60 4 9000-10000 10000-11000 12500-13500 2600
7015-4BZ-BZ M16 *1 70 4 12500-14000 / / 3600
6015-4BD-BZ M16 *1 60 4 9000-10000 10000-11000 / 2600
6015-6BD-BZ M16 *1 60 6 19000-20500 / 23000-25000 3600
7015-4BD-BZ M16 *1 70 4 12500-14000 / / 3600
6015-4BZ-LS M16 *1 60 8 18000-20000 20000-22000 / 4200
4515-4YZ-SS M16 *1 45 8 / / 25000-27000 2400
4515-4JZ-SS M16 *1 45 8 19000-21000 / / 2800
5015-4BZ-SZ M16 *1 50 8 22000-24000 / / 3600
5020-4CZ-BJ 3/8-24UNF 50 4 11000-12000 13000-14000 14500-16000 1500
5020-4BZ-BJ 3/8-24UNF 50 4 11000-12000 13000-14000 14500-16000 1500
5520-4BZ-BJ 3/8-24UNF 55 4 10500-11500 / / 1800
5020-4BZ-BZ 3/8-24UNF 50 4 11000-12000 13000-14000 14500-16000 1500
5020-4HZ-BJ 3/8-24UNF 50 4 / / 11000-12000 1500
3820-4BZ-SS 3/8-24UNF 38 8 13000-14500 / / 1800
5020-4BZ-LS 1/2-20UNF 50 8 23000-25000 26000-28000 / 2800
3028-2BZ-BT / 30 2 2800-3300 3300-3800 / 400
3828-4BZ-BJ M8*1 38 4 7200-8200 / 10000-12000 800
3828-4BZ-BJL M8*1 38 4 7200-8200 / 10000-12000 800
3828-2BZ-BJL M8*1 38 2 3700-4200 / / 500
3030-4BZ-SJL M10 30 4 / 6200-7200 / 700
3030-4BZ-LJL M10 30 4 / 6200-7200 / 700
3030-4BZ-BJ M8 30 4 / 6200-7200 / 700
3535-4BD-II M8 35 4 6600-7400 / 9200-10200 800
3035-4BZ-BJL M8 30 4 5500-6200 / / 700
3040-4BZ-BJ M8 30 4 5100-5800 / 6500-7500 500
1560-2BZ-BJ / 15 2 / / 700-850 100
1070-2BZ-BJ / 10 2 700-800 / / 100
